Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
REP 1.31
Repairs
4. Remove the Snap Ring and Idler Gear (Figure 2).
Figure 2 Feed Idler Gear
Replacement
Install the components in the reverse of removal.
REP 1.31 Paper Drive Roll
Parts List on PL 4.5
Removal
1. Switch Off the Printer and unplug the Power Cord.
2. Remove the following covers:
a. The Front Cover (REP 1.1).
b. The Middle Cover (REP 1.3).
3. Disconnect connector CN6 from the HVPS PWB, and route the wires through the frame
(Figure 1).

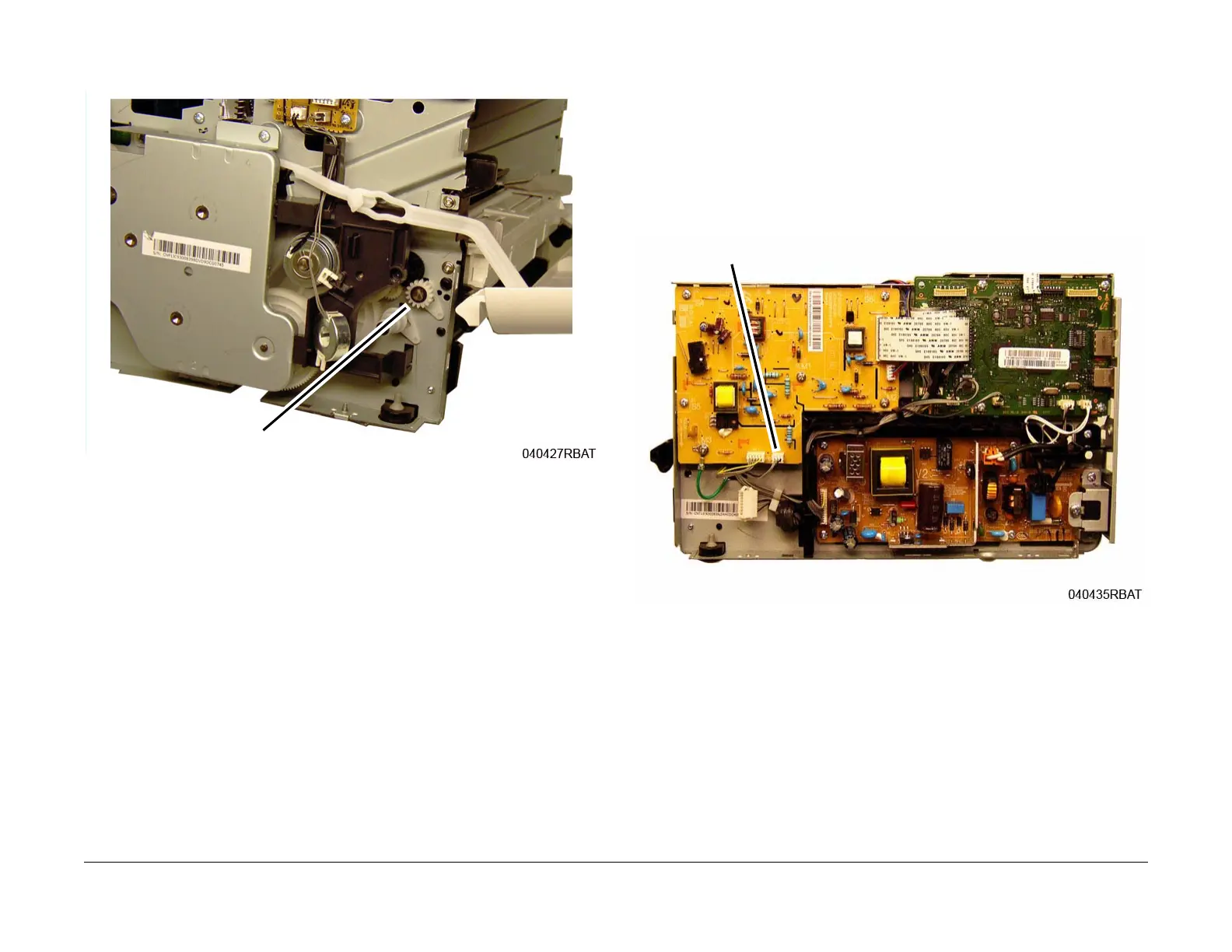

Figure 1 HVPS CN6
Feed Idler Gear
CN6
