Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
REP 1.16
Repairs
REP 1.16 Transfer Roll
Parts List on PL 4.1
Removal
1. Switch Off the Printer and unplug the Power Cord.
2. Open the Front Cover.
NOTE: Cover the Drum Cartridge with several sheets of paper to prevent it from being light
shocked.
3. Remove the Toner Cartridge and the Drum Cartridge.
4. Remove (squeeze and lift) the Transfer Roll Retainer Clip (Figure 1).

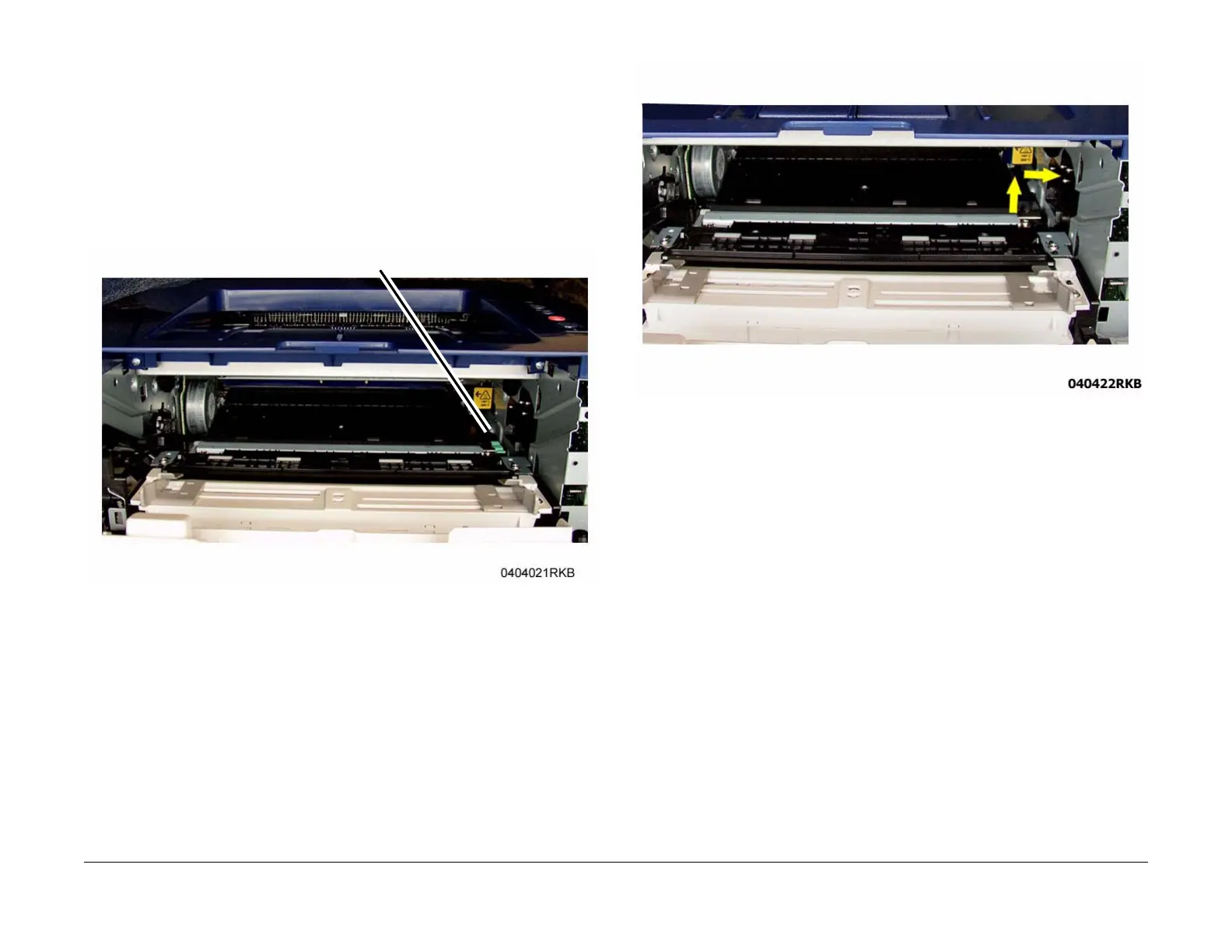

Figure 1 Transfer Roll Retainer Clip (Front View)
5. Remove the Transfer Roll (Figure 2):
a. Lift the right end of the Transfer Roll and slide the left end out of the bushing.
Figure 2 Removing the Transfer Roll
Replacement
Install the components in the reverse of removal.
((
Transfer Roll Clip
