Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
PL 4.2
Parts Lists

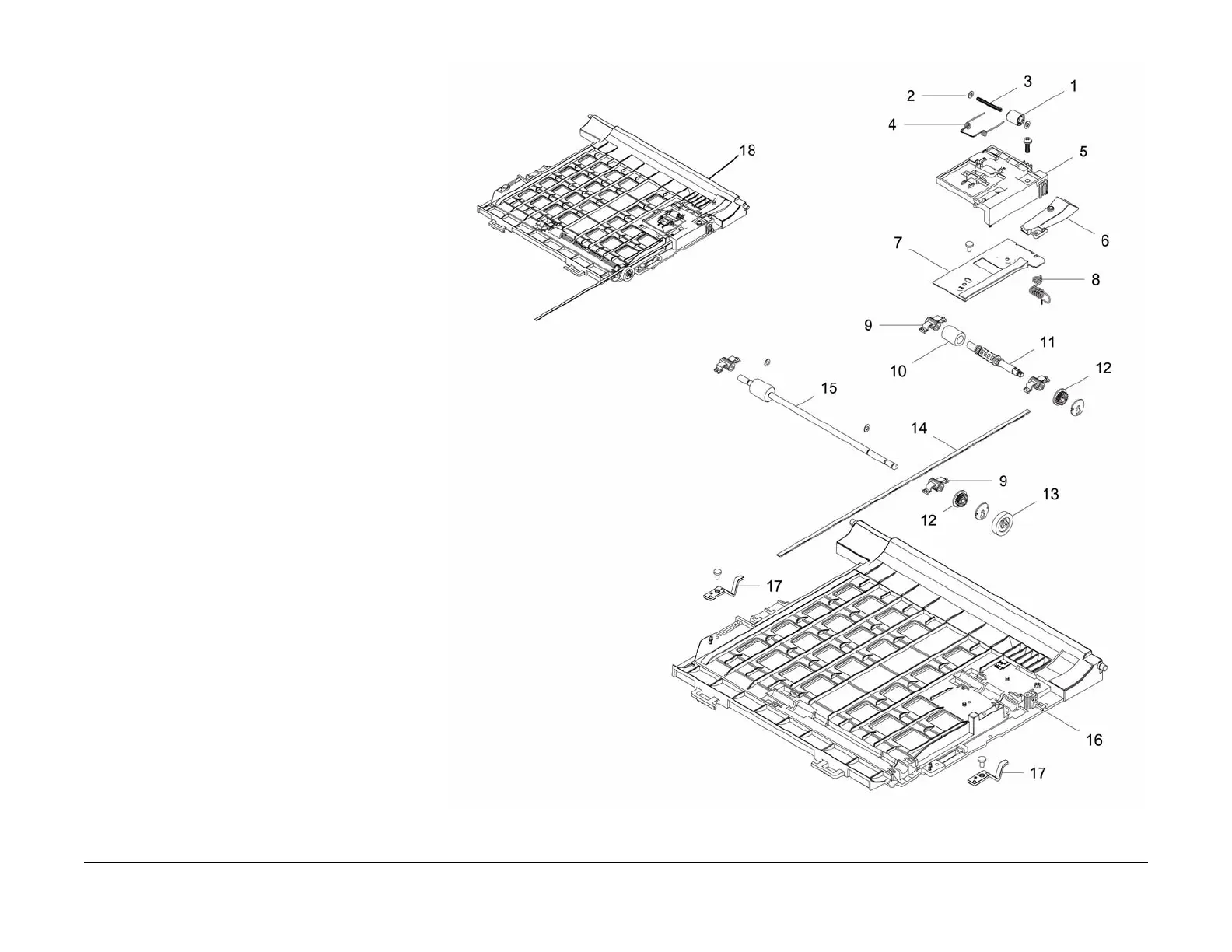

PL 4.2 Duplex
Item Part Description
1 – M Idle Roller
2 – Washer
3 – Idle Roll Shaft
4– Spring
5 – Duplex Upper Guide
6 – Duplex Paper Guide
7 – Duplex Align Bracket
8 – Ground Terminal
9 – Roller Bushing
10 – Rubber Feed Roller
11 – Feed Shaft
12 – Pulley
13 – Exit Gear
14 – Flat Rubber Belt
15 – Feed Roller
16 – Duplex Base Frame
17 – Duplex Latch
18 022N02795 DUPLEX-set to A4
– 022N02796 DUPLEX-set to Letter
