Xerox WorkCentre 3225

June 2014
4-34
Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
REP 1.24
Repairs

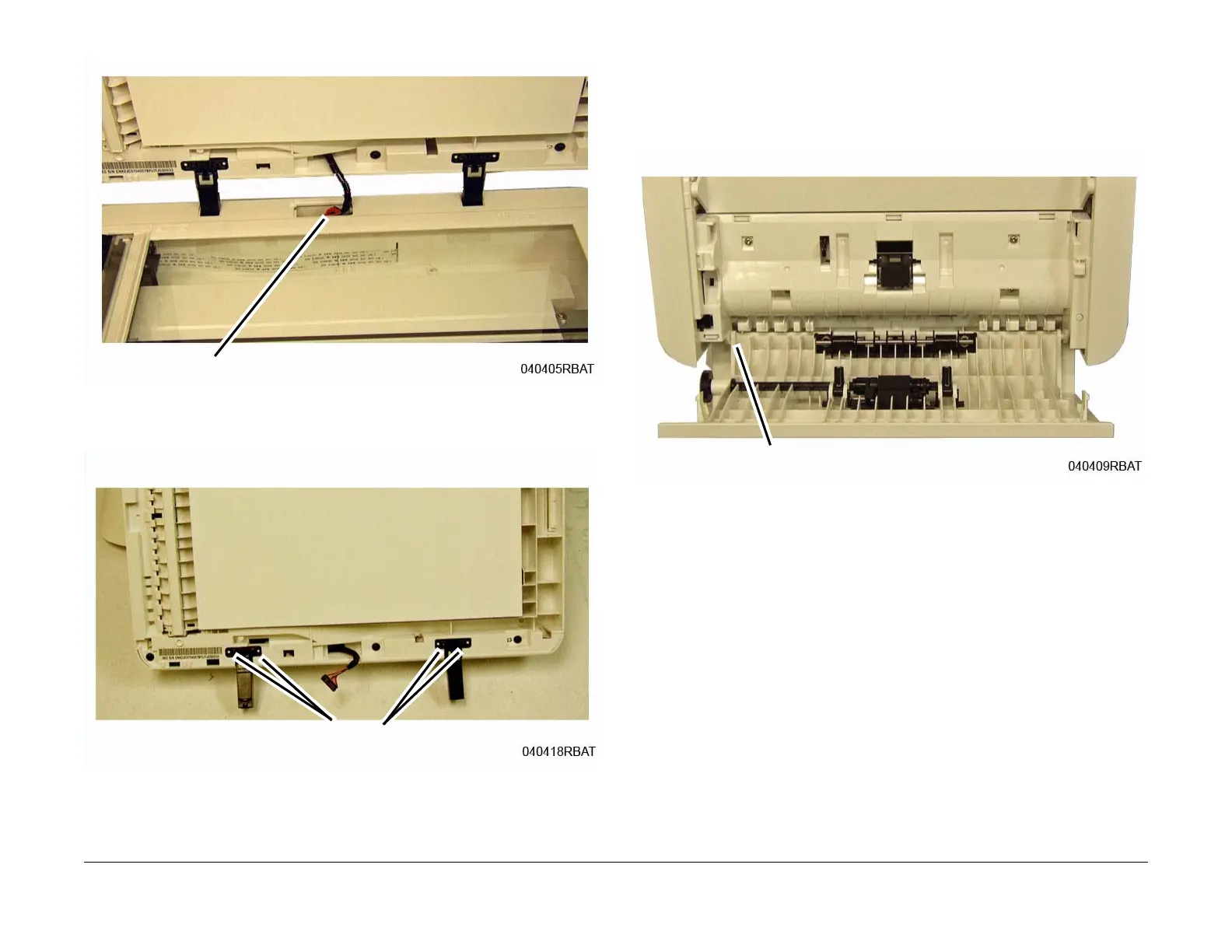

Figure 2 ADF Connector
4. Remove the screws (2) and the hinge (Figure 3).
Figure 3 ADF Hinges (Bottom View)
Replacement
Install the components in the reverse of removal.
REP 1.24 ADF Feed Rolls Assembly
Parts List on PL 1.2
Removal
1. Remove the ADF Cover, release the Rear Pivots and remove the cover (Figure 1).
Figure 1 ADF Cover Pivots (Top View)
ADF Connector
Screws
Rear Pivot
