Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
PL 4.1
Parts Lists

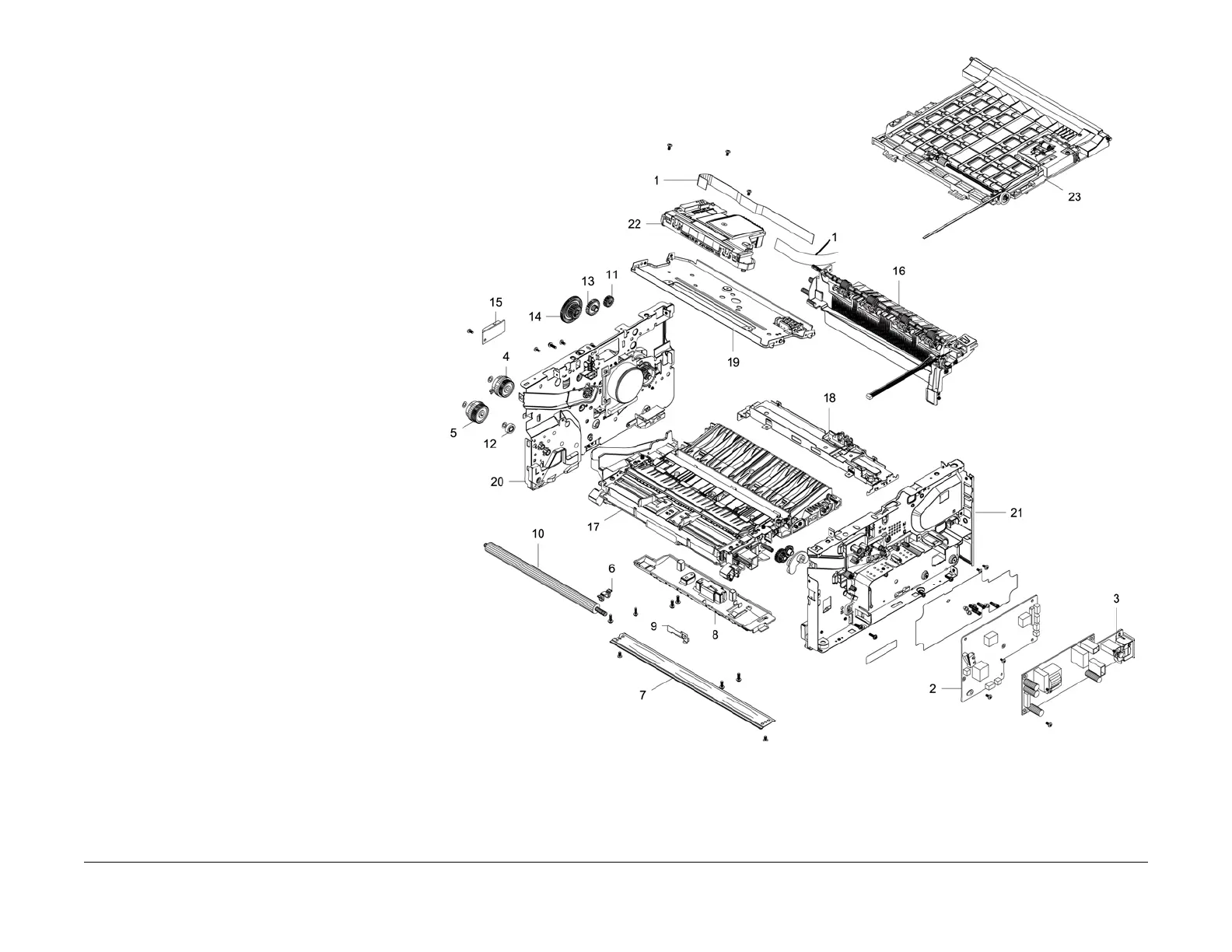

PL 4.1 Frame
Item Part Description
1 117N01969 Flat Cable
2 105N02301 HVPS
3 105N02300 LVPS 220V
– 105N02299 LVPS 110V
4 121N01247 Registration Clutch
5 121N01248 Feed Clutch
6 – Transfer Roll Holder
7– Bottom Bar
8 – Feed Frame
9 – Ground Clip
10 022N02803 Transfer Roller
11 – Exit Gear
12 – Feed Gear
13 – Exit Idle Gear
14 – Exit Gear
15 011N00581 Paper Feed PWB
16 – Main Exit Frame
17 – Paper Path Frame
18 – Exit Sensor Frame
19 – LSU Bracket Frame
20 – Left Main Frame
21 – Right Main Frame
22 062N00292 LSU
23 – Duplex (PL 4.2)

Xerox WorkCentre 3225 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	Up to 600 x 600 dpi
Monthly Duty Cycle	Up to 30, 000 pages
Paper Capacity	250 sheets
ADF Capacity	40 sheets
Memory	128 MB
First Page Out Time	As fast as 8.5 seconds
Processor	600 MHz
Paper Output Capacity	120 sheets
Duplex Printing	Manual
Copy Resolution	Up to 600 x 600 dpi
First Copy Out Time	As fast as 10 seconds
Maximum Number of Copies	99 copies
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Weight	11.4 kg
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	Letter, Legal, A4, A5, B5
Operating System Compatibility	Windows, Mac, Linux
Fax Transmission Speed	Approx. 3 seconds per page
