Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
PL 4.3
Parts Lists

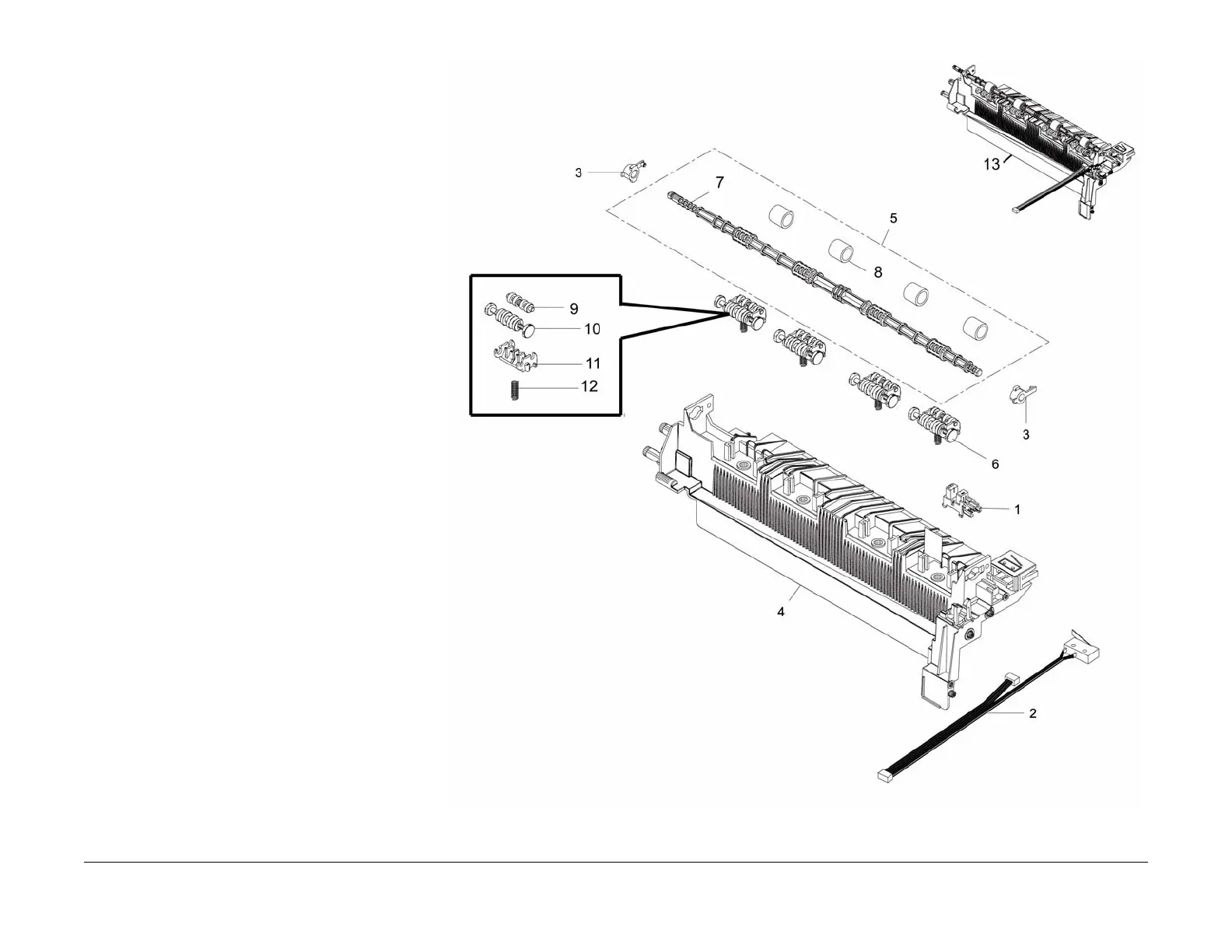

PL 4.3 Exit Frame
Item Part Description
1 130N01758 Output Tray Full Sensor
2 – Harness
3 006N01361 Bushing
4– Exit Frame
5 001N00546 Exit Roller
6 – Decurler Roller
7 – Exit Shaft
8 – Rubber Exit Dup
9 – Inner Exit Roller
10 – Outer Exit Roller
11 – Exit Roll Holder
12 – Spring
13 – Exit Frame Assembly
