Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
Image Quality Overview, IQ1
Image Quality RAPs
Test Prints
Test Pattern pages are available for troubleshooting image quality defects and to confirm
proper printer operation. Printing the Test Pattern is useful for stimulating asynchronous
(dynamic) events related to the print process, or as a test for media path and media-related
problems.
The test print provides a variety of different line styles in both process and cross-process direc-
tions. The pattern is used to check registration, dot size and image density.
Test Pattern 1 and Test Pattern 2 are essentially the same but for different media sizes. Table 2
describes the test patterns and the purpose for which they are used to identify image quality
defects.
To create a test print from the Control Panel:
1. Enter Diagnostic Mode. Press the <Menu> button, the <#> button, then using the keypad
select <1934>, then press the <OK> button.
2. Select: [Diagnostics, Machine Test, Test Pattern, Print, Yes]. Press the <OK> button
after menu selections.
• Test Pattern 1 for 8.5 x 11 prints.
• Test Pattern 2 for A4 prints.
IQ1 Vertical Black Line and Band RAP
Thin black vertical lines or black vertical bands occur in the printed image.
Procedure
Switch Off the power.
Check the Transfer Roller PL 4.1 for wear or damage; and remaining life, refer to GP 6
Machine Reports. The Transfer Roller is OK.
YN
Replace the Transfer Roller; (REP 1.16), PL 4.1.
Switch On the power and make a test print.
If problem persists, replace the Drum Cartridge, refer to the WorkCentre® 3215/3225 User
Guide for detailed instructions on how to replace the Drum Cartridge.

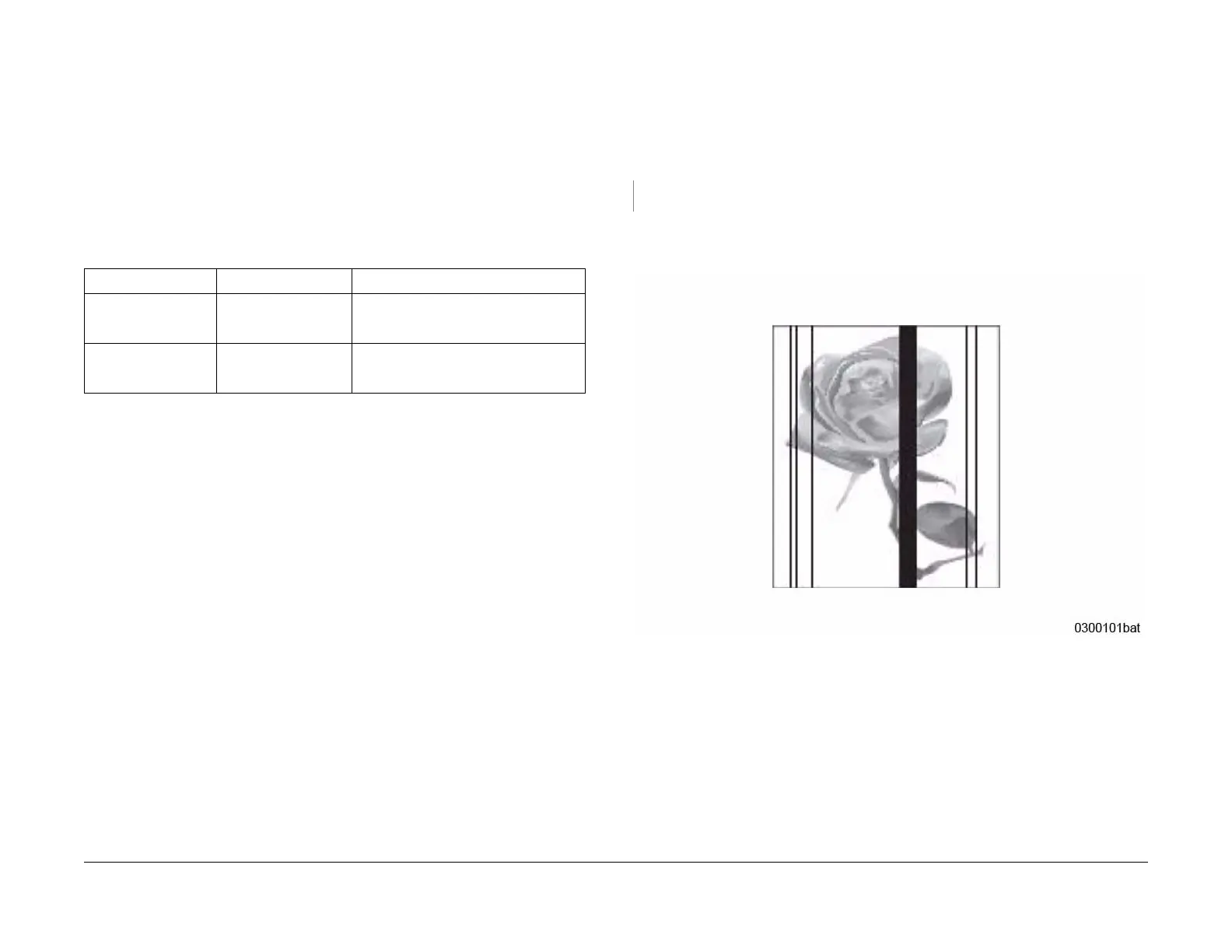

Figure 1 Black Lines and Bands
Table 2 Internal Test Patterns
Test Pattern Number Description Purpose
Test Pattern 1 8.5 x 11 inches (Letter) Light density uniformity, deletions, lines,
bands, streaks, smears, solid area repro-
duction, motion quality (LSU).
Test Pattern 2 A4 Light density uniformity, deletions, lines,
bands, streaks, smears, solid area repro-
duction, motion quality (LSU).

Xerox WorkCentre 3225 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	Up to 600 x 600 dpi
Monthly Duty Cycle	Up to 30, 000 pages
Paper Capacity	250 sheets
ADF Capacity	40 sheets
Memory	128 MB
First Page Out Time	As fast as 8.5 seconds
Processor	600 MHz
Paper Output Capacity	120 sheets
Duplex Printing	Manual
Copy Resolution	Up to 600 x 600 dpi
First Copy Out Time	As fast as 10 seconds
Maximum Number of Copies	99 copies
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Weight	11.4 kg
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	Letter, Legal, A4, A5, B5
Operating System Compatibility	Windows, Mac, Linux
Fax Transmission Speed	Approx. 3 seconds per page
