Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
PL 4.6
Parts Lists

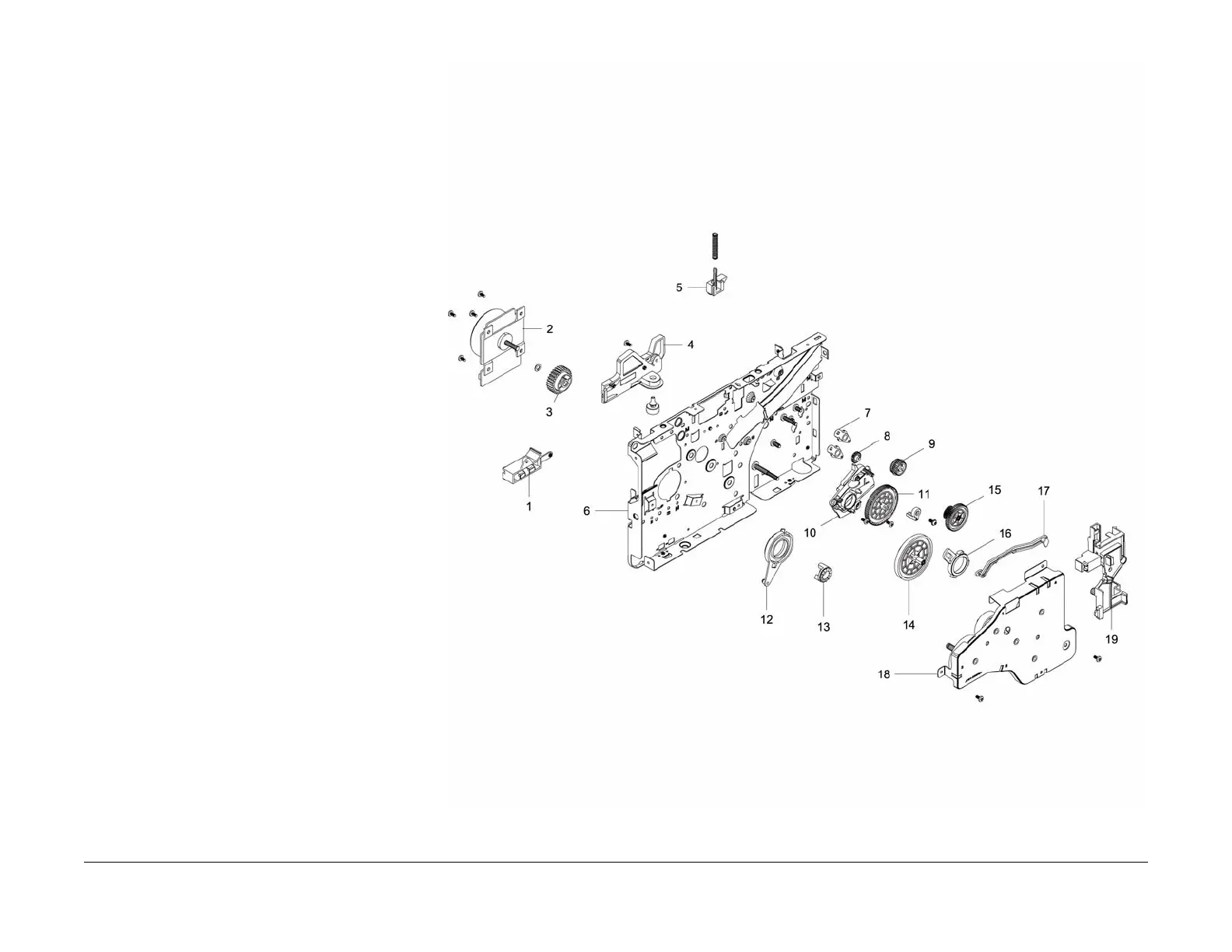

PL 4.6 Left Main Frame
Item Part Description
1 – Left Rear Guide
2 127N07865 Main Drive Motor
3 – Fuser Drive Out Gear
4 – Knock Up Left Guide
5 – Left Developer Guide Plate
6 – Left Frame
7 – Shaft Bushing
8 007N01802 Paper Feed Idler Gear
9 – Idler Gear
10 – Pivot Frame
11 – Idler Gear
12 – Fuser Locking Lever
13 – Hub Clutch Gear
14 – Feed Gear
15 – Feed Gear 2
16 – Cam Coupler
17 – Coupling Lever
18 007N01803 Main Drive Unit
19 – Harness Cover

Xerox WorkCentre 3225 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	Up to 600 x 600 dpi
Monthly Duty Cycle	Up to 30, 000 pages
Paper Capacity	250 sheets
ADF Capacity	40 sheets
Memory	128 MB
First Page Out Time	As fast as 8.5 seconds
Processor	600 MHz
Paper Output Capacity	120 sheets
Duplex Printing	Manual
Copy Resolution	Up to 600 x 600 dpi
First Copy Out Time	As fast as 10 seconds
Maximum Number of Copies	99 copies
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Weight	11.4 kg
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	Letter, Legal, A4, A5, B5
Operating System Compatibility	Windows, Mac, Linux
Fax Transmission Speed	Approx. 3 seconds per page
