Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
PL 7.1
Parts Lists

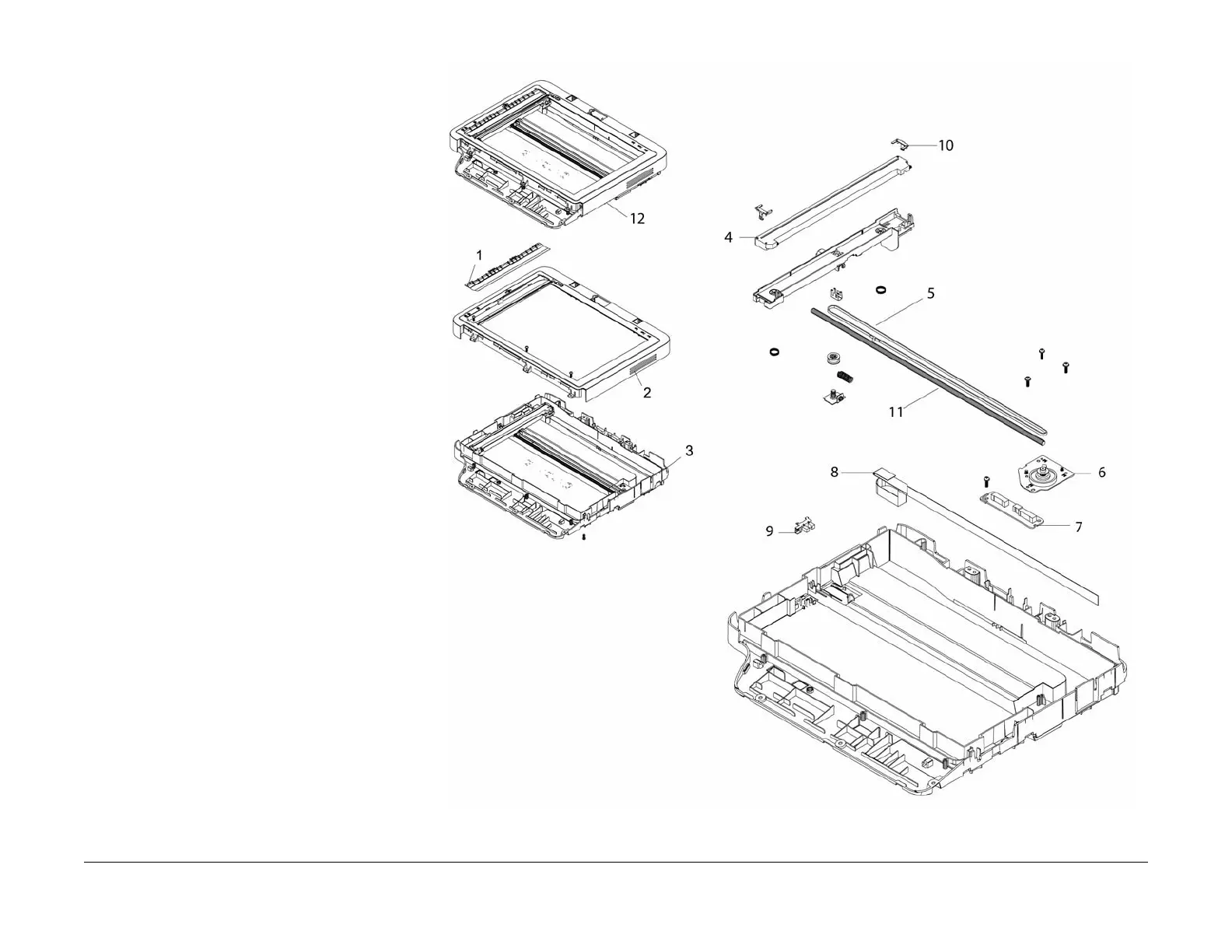

PL 7.1 Scanner Module
Item Part Description
1 – Paper Guide
2 – Upper Scanner Frame
3 – Lower Scanner Frame
4 – Contact Image Sensor (CIS)
5 – Drive Belt
6 – Scanner Drive Motor
7 – Scanner PWB
8 – Flat Cable
9 – Sensor
10 – CIS Holder
11 – CIS Guide Shaft
12 090N00182 Scanner Module
