Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
IQ2, IQ3
Image Quality RAPs
IQ2 Vertical White Line and Band RAP
Thin white vertical lines or white vertical bands occur in the printed image (Figure 1).
Initial Actions
Clean the surface of the LSU window with a clean cotton swab and recommended cleaner.
Procedure
Check the life of the Drum Cartridge, refer to GP 6 Machine Reports. The Drum Cartridge
has reached end of life.
YN
Switch Off the power. Replace the Drum Cartridge. Refer to the WorkCentre® 3215/3225
User Guide for detailed instructions on how to replace the Drum Cartridge.
Check the space between the LSU and the Drum Cartridge, remove any debris or blockage.
The defect is gone.
YN
Replace the Fuser Module; (REP 1.17), PL 5.1.
Switch on the power. Perform Final Actions.

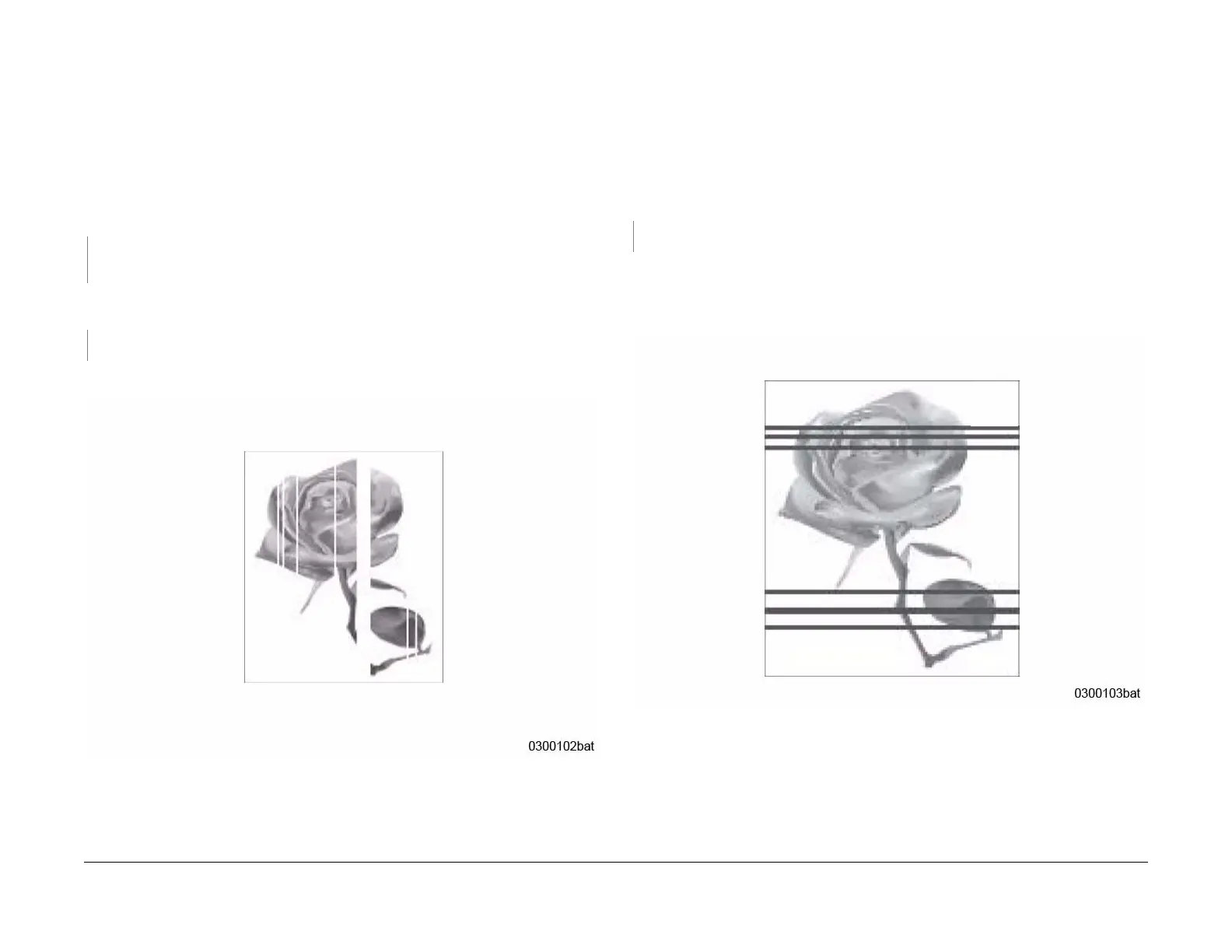

Figure 1 White Lines and Bands
IQ3 Horizontal Black Bands RAP
Periodic dark of blurry horizontal stripes in the printed image (Figure 1).
Procedure
• Switch Off the power.
• Check high voltage contacts between the Drum Cartridge and the HVPS PWB for con-
tamination or damage.
• Switch On the power and make a test print.
The defect is still present.
YN
Go to Call Closeout.
Refer to WorkCentre® 3215/3225 User Guide for detailed instructions on how to replace the
Drum Cartridge or Toner Cartridge.
• Replace the Drum Cartridge.
• Replace the Toner Cartridge.
Figure 1 Horizontal Black Bands

Xerox WorkCentre 3225 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	Up to 600 x 600 dpi
Monthly Duty Cycle	Up to 30, 000 pages
Paper Capacity	250 sheets
ADF Capacity	40 sheets
Memory	128 MB
First Page Out Time	As fast as 8.5 seconds
Processor	600 MHz
Paper Output Capacity	120 sheets
Duplex Printing	Manual
Copy Resolution	Up to 600 x 600 dpi
First Copy Out Time	As fast as 10 seconds
Maximum Number of Copies	99 copies
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Weight	11.4 kg
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	Letter, Legal, A4, A5, B5
Operating System Compatibility	Windows, Mac, Linux
Fax Transmission Speed	Approx. 3 seconds per page
