Xerox WorkCentre 3225 User Manual

June 2014
4-19
Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
REP 1.9, REP 1.10
Repairs

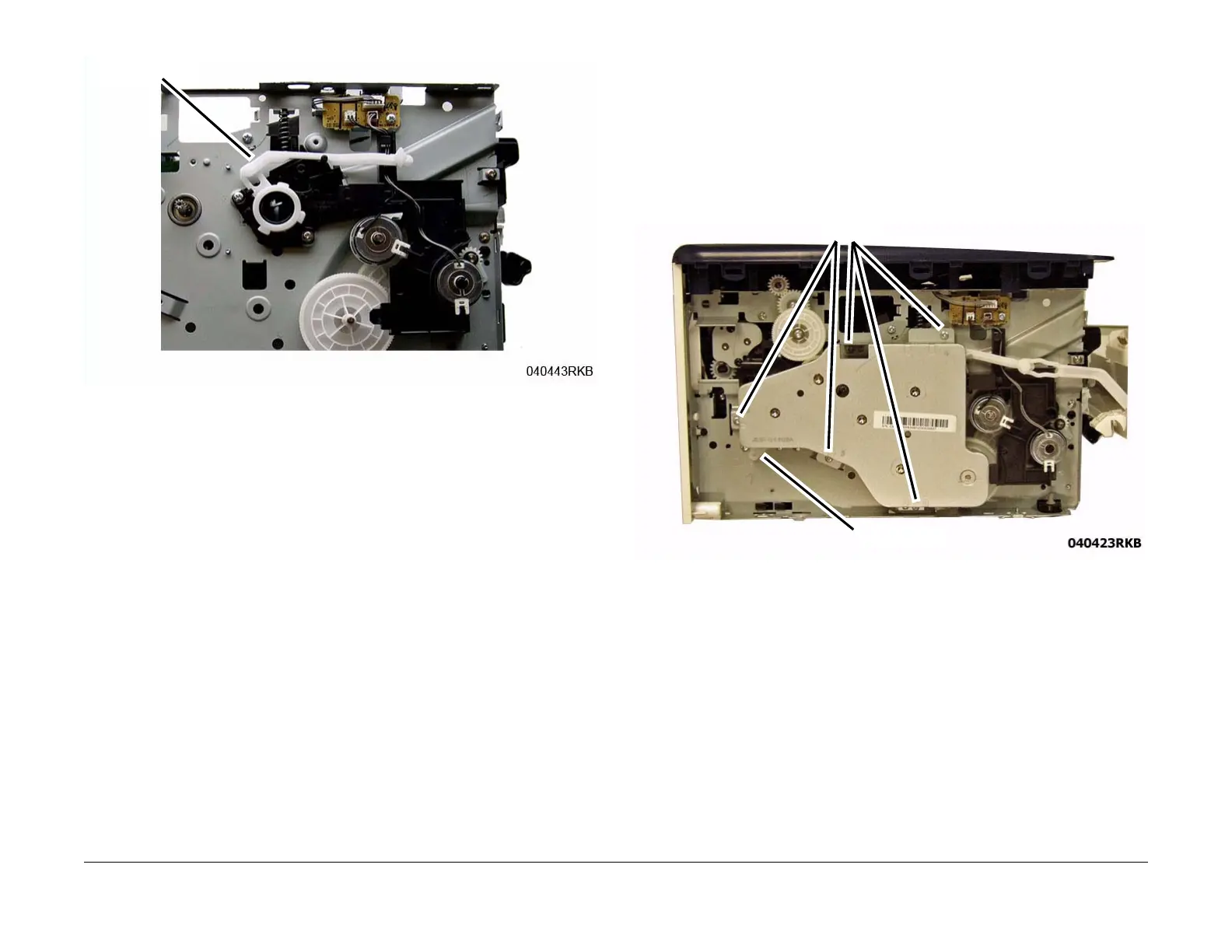

Figure 11 Front Cover Support Arm Placement
REP 1.10 Main Drive Unit
Parts List on PL 4.6
Removal
1. Switch Off the Printer and unplug the Power Cord.
2. Remove the Left Side Cover (REP 1.2).
3. Remove the screws (5) from the Main Drive Unit (Figure 1).
4. Move the Fuser Drive Locking Lever to the Unlock position (Right) (Figure 1).
Remove the Main Drive Unit and the Front Door Support Arm.
Figure 1 Main Drive Unit Removal
Replacement
1. Place the Front Cover Support Arm on the Stop Bracket (Figure 2).
Support Arm
Screws
Locking Lever

Xerox WorkCentre 3225 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	Up to 600 x 600 dpi
Monthly Duty Cycle	Up to 30, 000 pages
Paper Capacity	250 sheets
ADF Capacity	40 sheets
Memory	128 MB
First Page Out Time	As fast as 8.5 seconds
Processor	600 MHz
Paper Output Capacity	120 sheets
Duplex Printing	Manual
Copy Resolution	Up to 600 x 600 dpi
First Copy Out Time	As fast as 10 seconds
Maximum Number of Copies	99 copies
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Weight	11.4 kg
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	Letter, Legal, A4, A5, B5
Operating System Compatibility	Windows, Mac, Linux
Fax Transmission Speed	Approx. 3 seconds per page
