Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
REP 1.20, REP 1.21
Repairs
REP 1.20 Output Tray Full Sensor
Parts List on PL 4.5
Removal
1. Switch Off the Printer and disconnect the Power Cord.
2. Remove the Middle Cover (REP 1.3).
NOTE: Do not disconnect the connectors to the Main PWB. The PWB only needs to be moved
away from the frame to access the Output Tray Full Sensor.
NOTE: Mark the location of the Ground Screw, with larger head, so it can be re-installed in the
correct location.
3. Remove the screws (5) to move the Main PWB away from the printer frame (Figure 1).

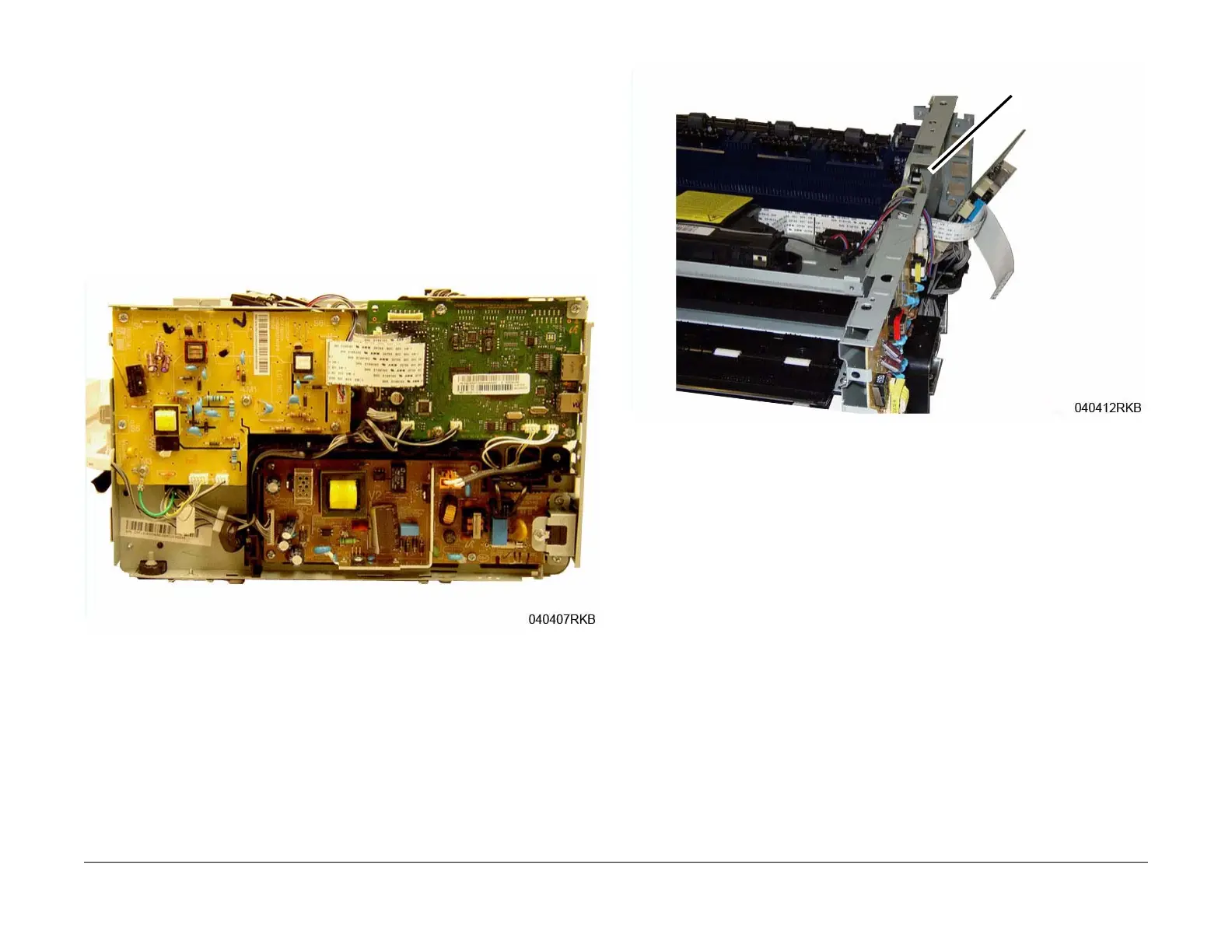

Figure 1 Main PWB
4. Remove the Output Tray Full Sensor (Figure 2):
a. Disconnect the Sensor connector.
b. Unlatch and remove the Output Tray Sensor.
Figure 2 Output Tray Full Sensor (Top Right View)
Replacement
NOTE: Tapered Plastic Screws and Round Machine Screws are used to hold the Fuser to the
frame. Make sure that the Plastic Screws go into plastic components and Machine Screws go
into the metal frame.
Install the components in the reverse of removal.
Output Tray Full Sensor

Xerox WorkCentre 3225 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	Up to 600 x 600 dpi
Monthly Duty Cycle	Up to 30, 000 pages
Paper Capacity	250 sheets
ADF Capacity	40 sheets
Memory	128 MB
First Page Out Time	As fast as 8.5 seconds
Processor	600 MHz
Paper Output Capacity	120 sheets
Duplex Printing	Manual
Copy Resolution	Up to 600 x 600 dpi
First Copy Out Time	As fast as 10 seconds
Maximum Number of Copies	99 copies
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Weight	11.4 kg
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	Letter, Legal, A4, A5, B5
Operating System Compatibility	Windows, Mac, Linux
Fax Transmission Speed	Approx. 3 seconds per page
