Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
PL 4.7
Parts Lists

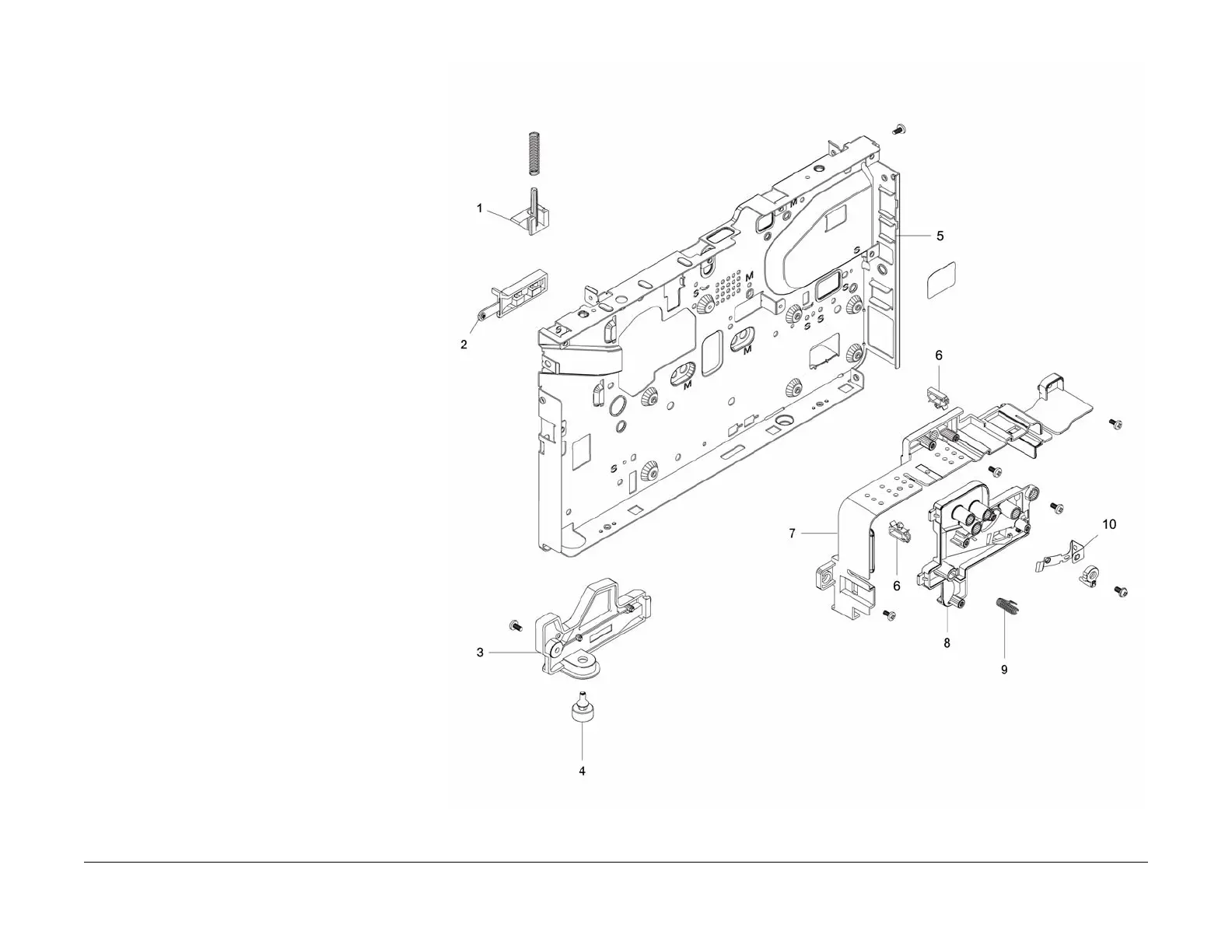

PL 4.7 Right Main Frame
Item Part Description
1 – Right Developer Guide Plate
2 – Rear Guide
3 – Lower Guide
4 – Foot
5 – Right Frame
6 – Cable Clamp
7 – LVPS Cover
8 – Developer Right Guide
9– Spring
10 – Ground Clip
