Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
PL 5.1
Parts Lists

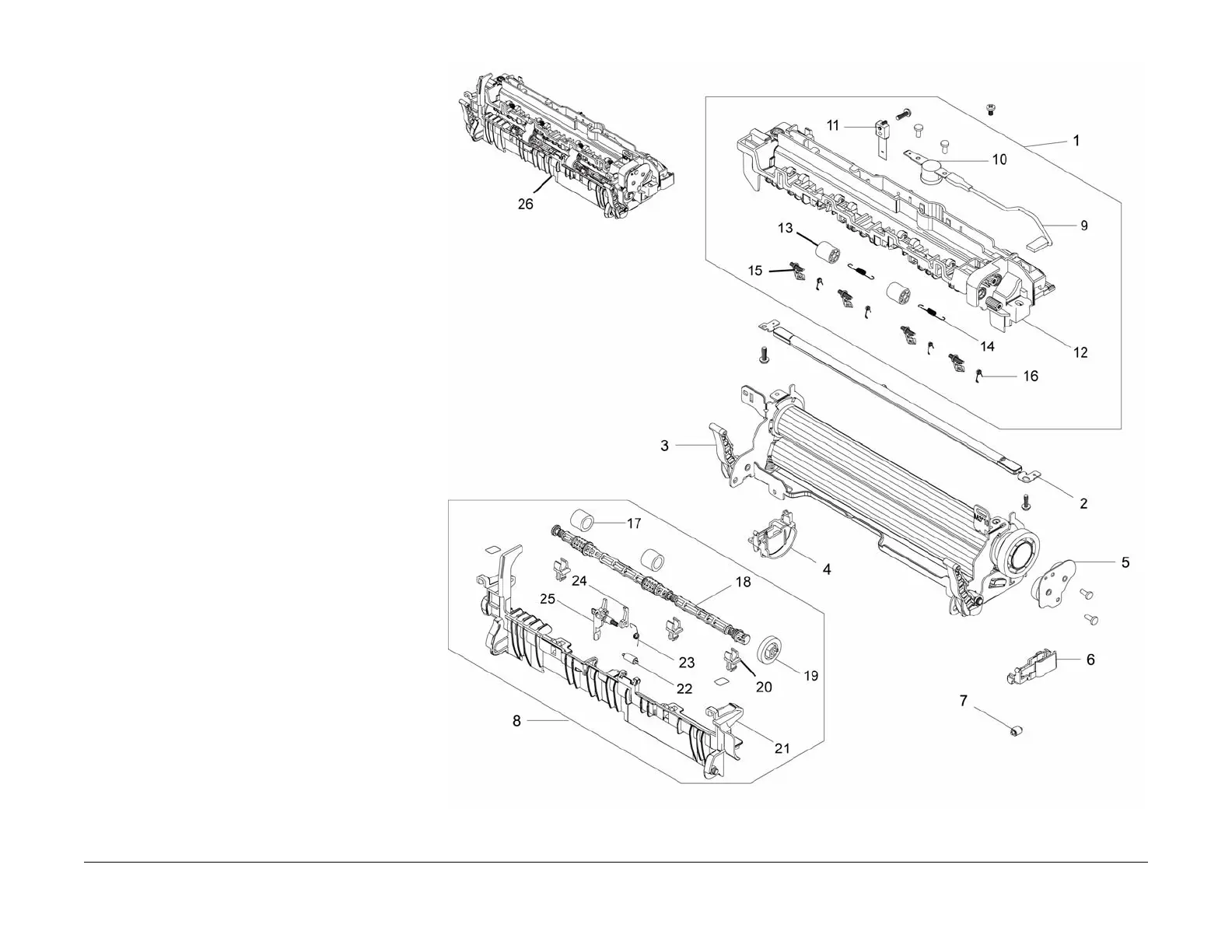

PL 5.1 Fuser
Item Part Description
1 – Upper Fuser
2 – Fuser Lamp
3 – Lower Fuser
4 – Right Lamp Cap
5 – Fuser Exit Drive
6 – Left Lamp Cap
7 – Fuser Gear Stopper
8 – Fuser Rear
9 – Fuser Joint Harness
10 – Thermostat
11 – Thermistor
12 – Fuser Cover
13 – Exit Roller
14 – Spring
15 – Guide
16 – Spring
17 – Exit Roller
18 – Exit Shaft
19 – Exit Gear
20 – Bushing
21 – Rear Guide
22 – Exit Idle Roller
23 – Spring
24 – Actuator Holder
25 – Exit Sensor Actuator
26 126N00430 Fuser Module 110V
– 126N00431 Fuser Module 220V

Xerox WorkCentre 3225 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	Up to 600 x 600 dpi
Monthly Duty Cycle	Up to 30, 000 pages
Paper Capacity	250 sheets
ADF Capacity	40 sheets
Memory	128 MB
First Page Out Time	As fast as 8.5 seconds
Processor	600 MHz
Paper Output Capacity	120 sheets
Duplex Printing	Manual
Copy Resolution	Up to 600 x 600 dpi
First Copy Out Time	As fast as 10 seconds
Maximum Number of Copies	99 copies
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Weight	11.4 kg
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	Letter, Legal, A4, A5, B5
Operating System Compatibility	Windows, Mac, Linux
Fax Transmission Speed	Approx. 3 seconds per page
