Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
REP 1.2
Repairs
REP 1.2 Left and Right Side Covers
Parts List on PL 2.1
Removal
1. Remove the Paper Tray from the printer.
NOTE: Cover the Drum Cartridge with several sheets of paper to prevent it from being light
shocked.
2. Open the Front Cover, remove the Toner Cartridge and the Drum Cartridge (Figure 1).

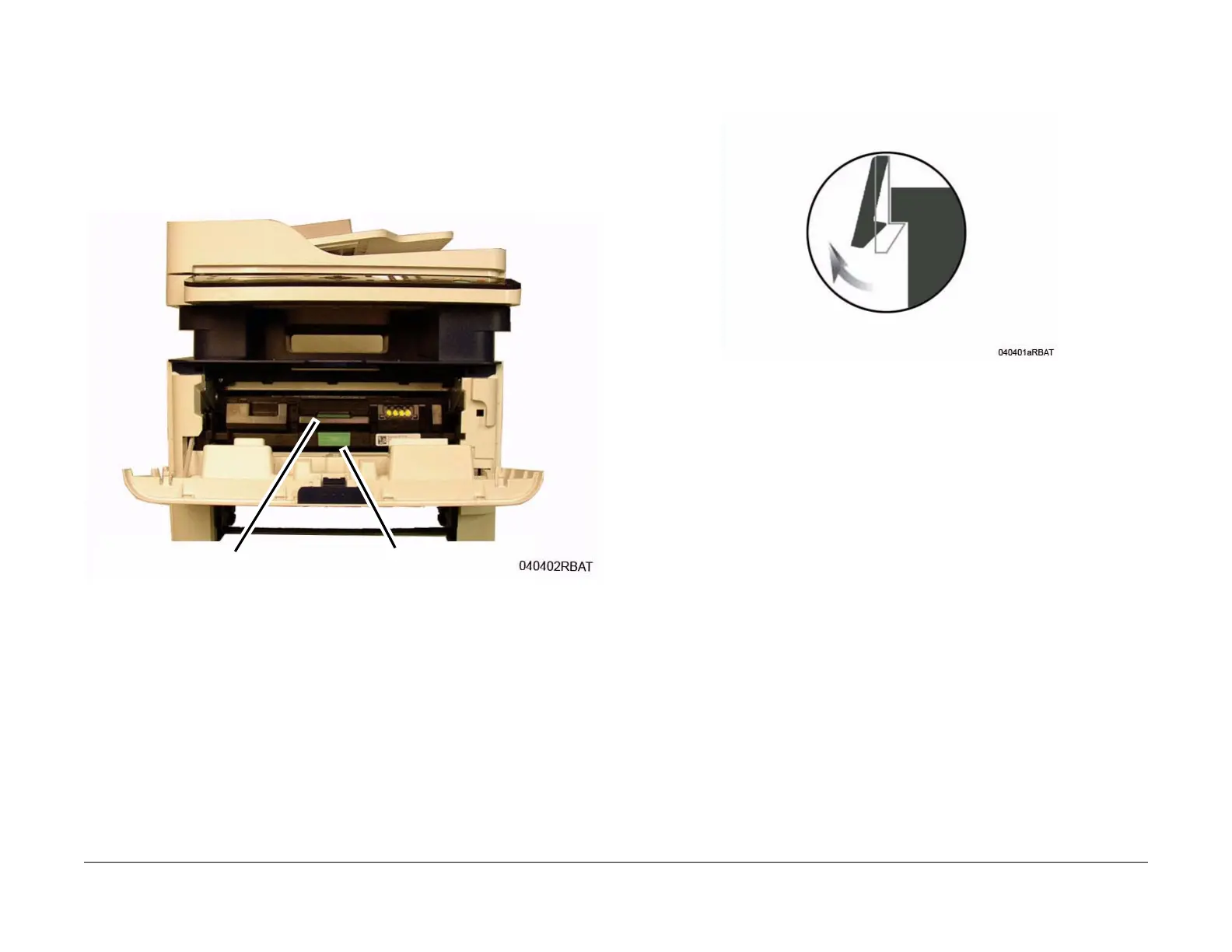

Figure 1 Toner Cartridge and Photoreceptor Handles
3. The side covers are held in place with Plastic Latches, release them carefully to avoid
breakage. To release the Latches press the hook end of the latch away from the part (Fig-
ure 2).
Figure 2 Plastic Latch
4. Remove the Right Side Cover, being careful not to damage the latching hooks.
a. Release (pull) the upper front latch hook.
b. Release the top latch hooks then the bottom latch hooks.
c. Release the front lower latch hook, and remove the cover.
5. Remove the Left Side Cover, being careful not to damage the latching hooks.
a. Release (pull) the center front latch hook.
b. Release the top latch hooks then the bottom latch hooks.
c. Release the rear latch hook, and remove the cover.
Replacement
Install the components in the reverse of removal.
Drum Cartridge
Toner Cartridge

Xerox WorkCentre 3225 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	Up to 600 x 600 dpi
Monthly Duty Cycle	Up to 30, 000 pages
Paper Capacity	250 sheets
ADF Capacity	40 sheets
Memory	128 MB
First Page Out Time	As fast as 8.5 seconds
Processor	600 MHz
Paper Output Capacity	120 sheets
Duplex Printing	Manual
Copy Resolution	Up to 600 x 600 dpi
First Copy Out Time	As fast as 10 seconds
Maximum Number of Copies	99 copies
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Weight	11.4 kg
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	Letter, Legal, A4, A5, B5
Operating System Compatibility	Windows, Mac, Linux
Fax Transmission Speed	Approx. 3 seconds per page
