Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
PL 6.1
Parts Lists

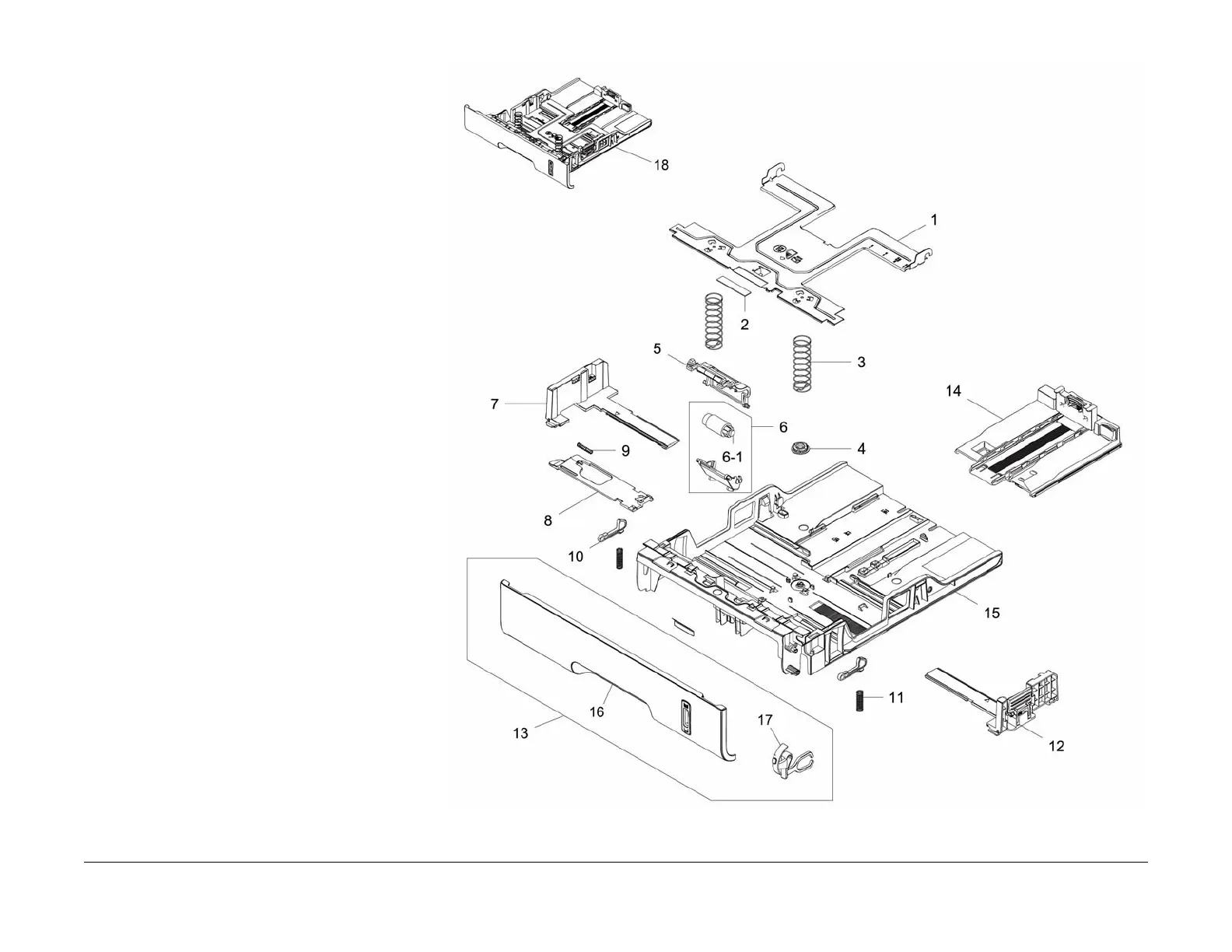

PL 6.1 Paper Tray
Item Part Description
1 – Lift Plate
2– Pad
3– Spring
4 – Pinion Gear
5 – Retard Roll Cover
6 050N00683 Retard Roll Assembly
7 – Left Paper Guide
8 – Latch Plate
9– Spring
10 – Paper Tray Latch
11 – Spring
12 – Right Paper Guide
13 – Paper Tray Handle
14 – Paper Tray Rear Guide
15 – Paper Tray Frame
16 – Paper Tray Handle
17 – Paper Indicator
18 050N00682 Paper Tray

Xerox WorkCentre 3225 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	Up to 600 x 600 dpi
Monthly Duty Cycle	Up to 30, 000 pages
Paper Capacity	250 sheets
ADF Capacity	40 sheets
Memory	128 MB
First Page Out Time	As fast as 8.5 seconds
Processor	600 MHz
Paper Output Capacity	120 sheets
Duplex Printing	Manual
Copy Resolution	Up to 600 x 600 dpi
First Copy Out Time	As fast as 10 seconds
Maximum Number of Copies	99 copies
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Weight	11.4 kg
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	Letter, Legal, A4, A5, B5
Operating System Compatibility	Windows, Mac, Linux
Fax Transmission Speed	Approx. 3 seconds per page
