6-6
Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
System Overview
General Procedures and Information
Laser Scanner Unit (LSU)
The Scanner Unit receives image data from the HVPS PWB and scans the surface of the pho-
toreceptor drum (OPC) with a laser to create a latent image.

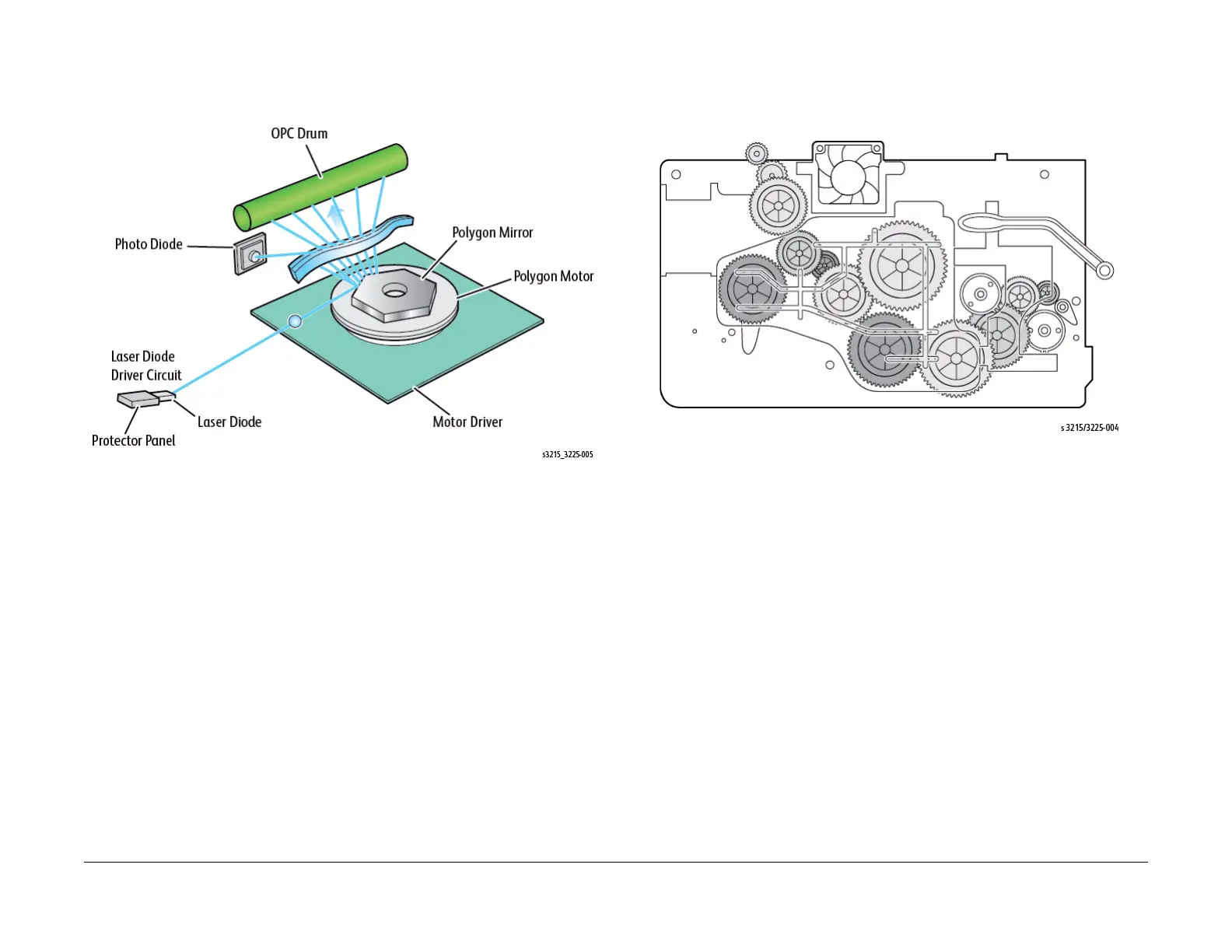

Figure 5 Laser Scanner Unit
Drives
The Drive System consists of the Main (BLDC) Motor, Registration and Pick-up Clutches along
with various gears for the Drum Cartridge (OPC), Fuser, Pick-up, Registration, Feed and Exit
Rollers.
Figure 6 Drive Gears and Clutches

Xerox WorkCentre 3225 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	Up to 600 x 600 dpi
Monthly Duty Cycle	Up to 30, 000 pages
Paper Capacity	250 sheets
ADF Capacity	40 sheets
Memory	128 MB
First Page Out Time	As fast as 8.5 seconds
Processor	600 MHz
Paper Output Capacity	120 sheets
Duplex Printing	Manual
Copy Resolution	Up to 600 x 600 dpi
First Copy Out Time	As fast as 10 seconds
Maximum Number of Copies	99 copies
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Weight	11.4 kg
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	Letter, Legal, A4, A5, B5
Operating System Compatibility	Windows, Mac, Linux
Fax Transmission Speed	Approx. 3 seconds per page
