Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
REP 1.3
Repairs
NOTE: If the Middle Cover is being replaced, remove the FAX PWB (4 screws) and the
Speaker (release the latch), and reinstall them onto the new cover.

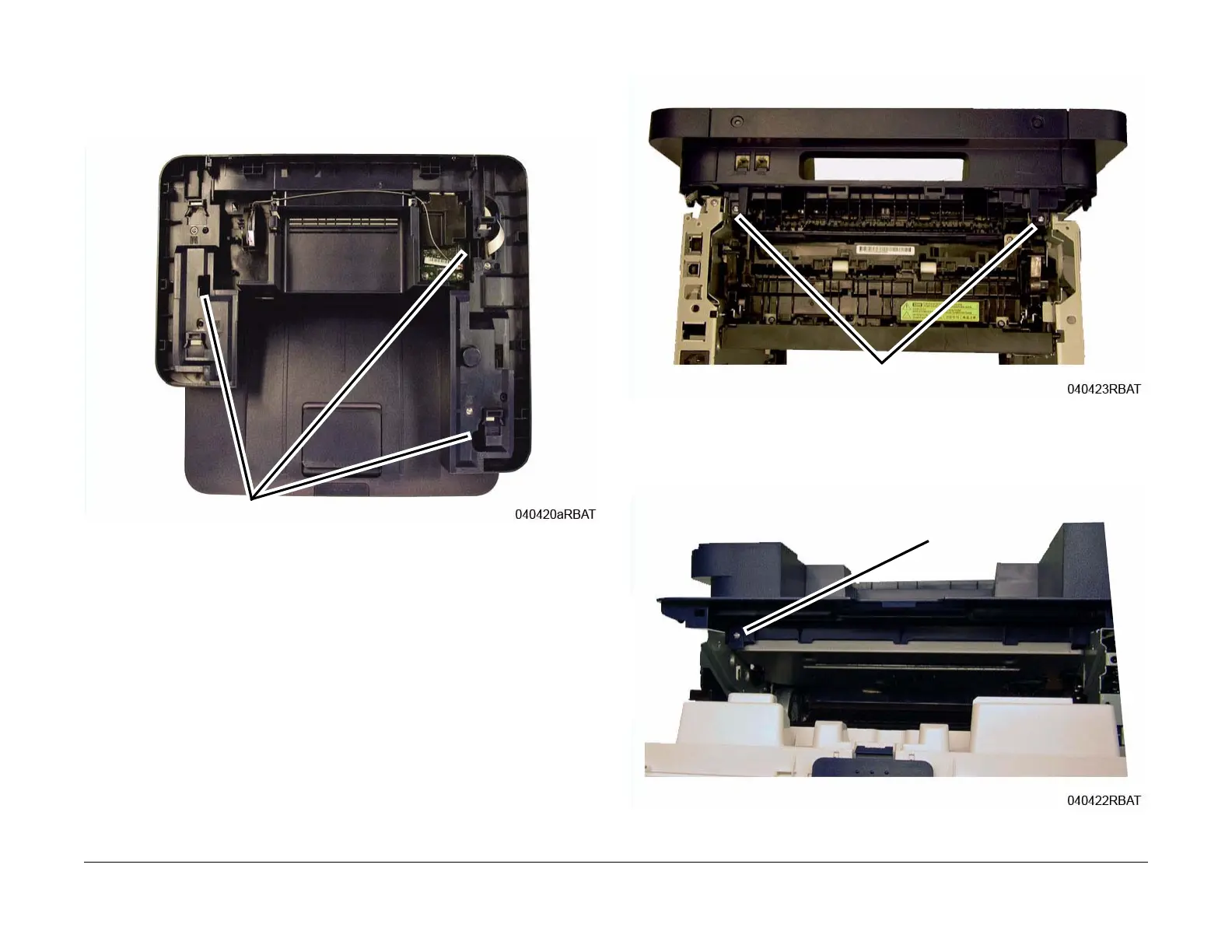

6. Remove the Middle Cover top screws (3) (Figure 3).
The screws are located at the bottom of the side cover openings.
Figure 3 Middle Cover Screws (Top View)
7. Remove the Middle Cover rear screws (2) (Figure 4).
Figure 4 Middle Cover Rear Screws
8. Remove the Middle Cover front screw (1) (Figure 5).
Release the Latch by the front screw and remove the Middle Cover.
Figure 5 Middle Cover Front Screw
Screws
Screws
Screw

Xerox WorkCentre 3225 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	Up to 600 x 600 dpi
Monthly Duty Cycle	Up to 30, 000 pages
Paper Capacity	250 sheets
ADF Capacity	40 sheets
Memory	128 MB
First Page Out Time	As fast as 8.5 seconds
Processor	600 MHz
Paper Output Capacity	120 sheets
Duplex Printing	Manual
Copy Resolution	Up to 600 x 600 dpi
First Copy Out Time	As fast as 10 seconds
Maximum Number of Copies	99 copies
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Weight	11.4 kg
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	Letter, Legal, A4, A5, B5
Operating System Compatibility	Windows, Mac, Linux
Fax Transmission Speed	Approx. 3 seconds per page
