Xerox WORKCENTRE PE 220 User Manual

Repairs/Adjustments
4-8 11/05 Workcentre PE 220
REP 8 Scan Assembly
1. Before you remove the Scan Assembly,
you should remove:
- Rear Cover (Refer to REP 5)
- Right Cover (Refer to REP 6)
- Left Cover (Refer to REP 7)
2. Remove two screws from the Middle
Cover and remove the screw securing the
Ground Cable.

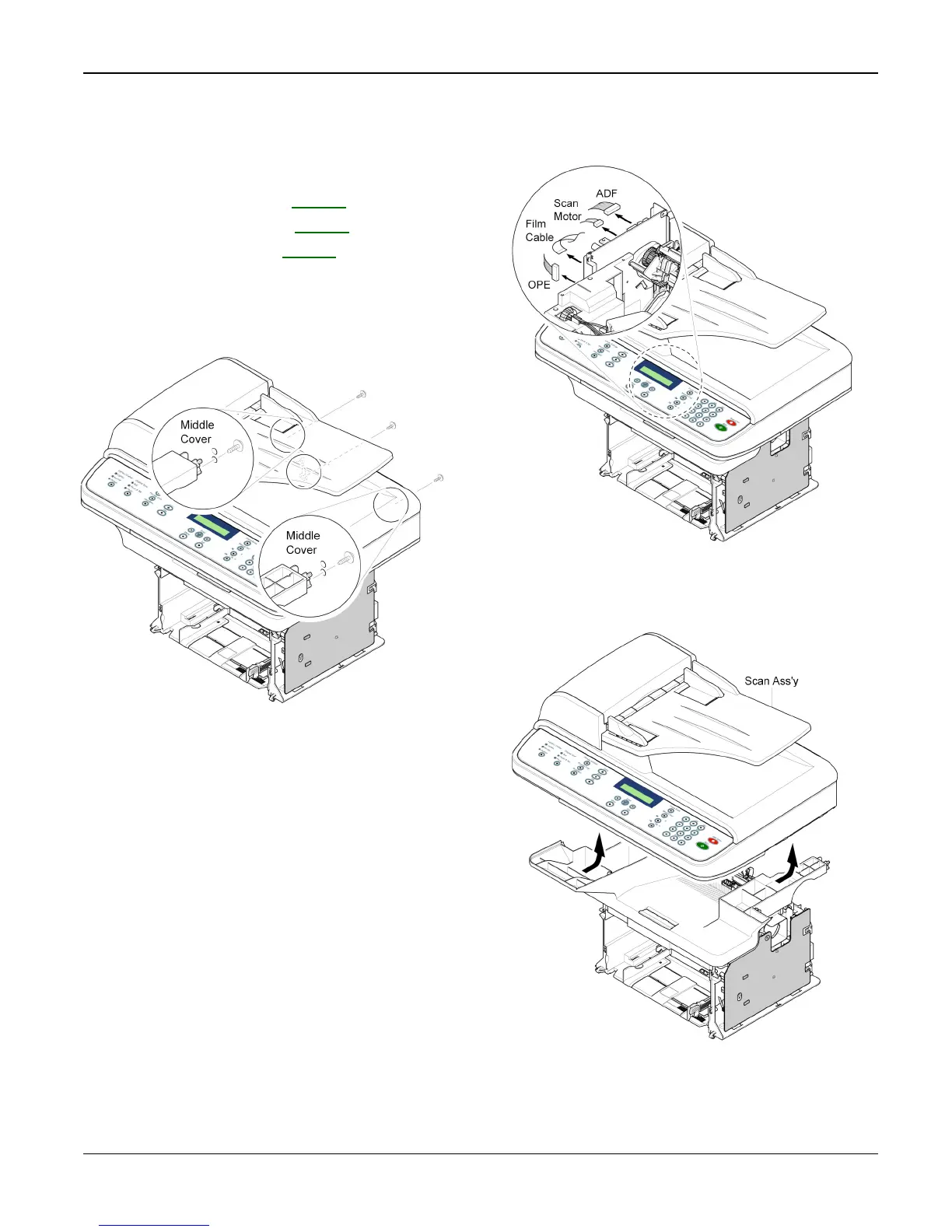

Figure 1
3. Unplug the three Connectors (ADF, Scan
Motor, OPE) and Flat Cable-CIS.
Figure 2
4. Release the Scan Assembly in the direc-
tion of the arrow.
Figure 3
