Xerox WORKCENTRE PE 220 User Manual

Repairs/Adjustments
Workcentre PE 220 11/05 4-21
REP 17 Engine Shield (LIU
PBA, SMPS)
1. Before you remove the Engine Shield, you
should remove:
- Scan Assembly (Refer to REP 8)
- Middle Cover (Refer to REP 12)
2. Unplug all Connectors from the SMPS
and LIU PBA.

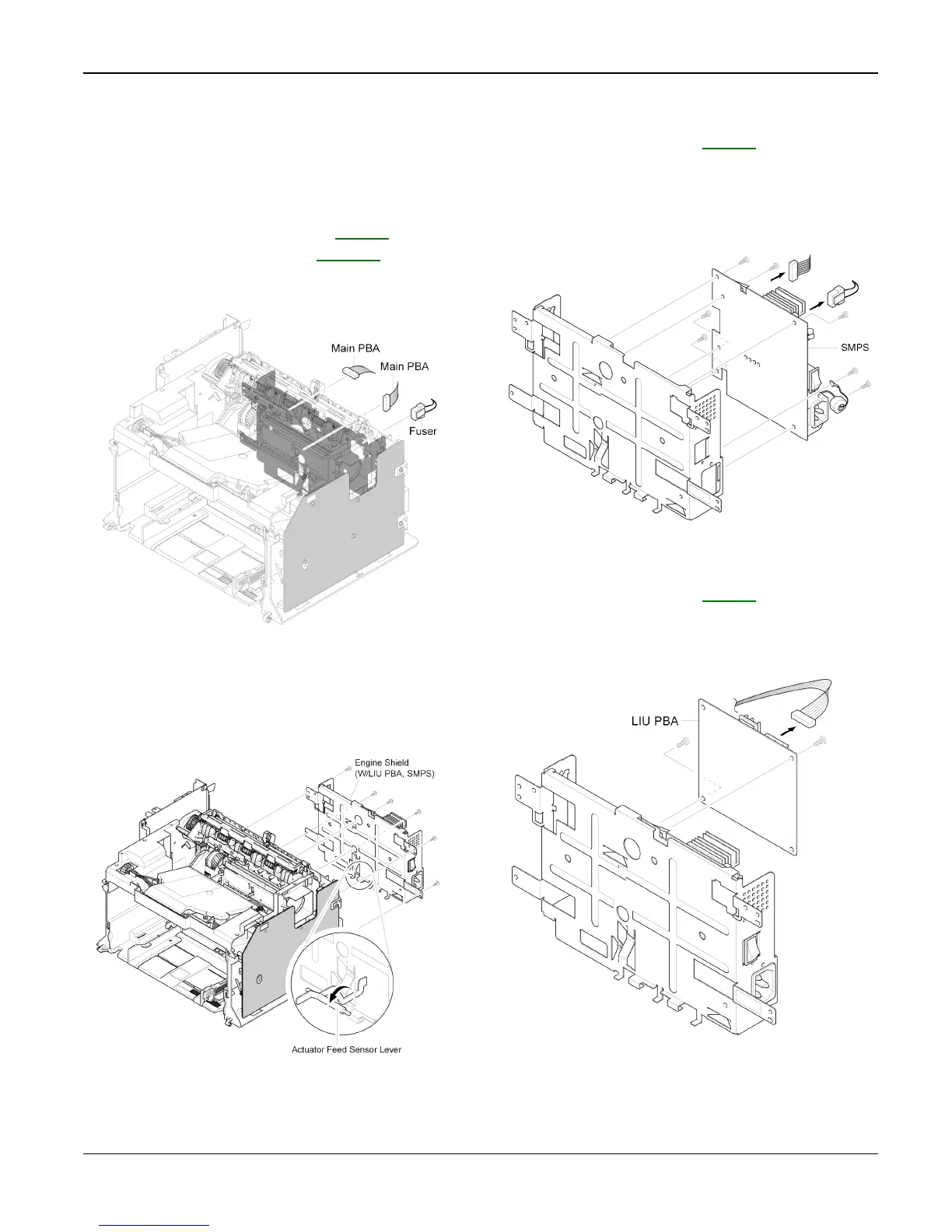

Figure 1
3. Remove six screws securing the Engine
Shield and release the Harness. Carefully
release the Engine Shield from the Actua-
tor Feed Sensor Lever.
Figure 2
4. If only removing the SMPS, remove the
Rear Cover (refer to REP 5) and unplug
the Fuser Connector. Remove six screws
securing the SMPS. Unplug the Connec-
tor from the Main PBA and carefully
release the SMPS.
Figure 3
5. If only removing the LIU PBA, remove the
Rear Cover (refer to REP 5) and remove
two screws securing the LIU PBA. Unplug
the Connector from the Main PBA and
release the LIU PBA.
Figure 4
