Xerox WORKCENTRE PE 220 - REP 12 Middle Cover

Repairs/Adjustments
4-14 11/05 Workcentre PE 220

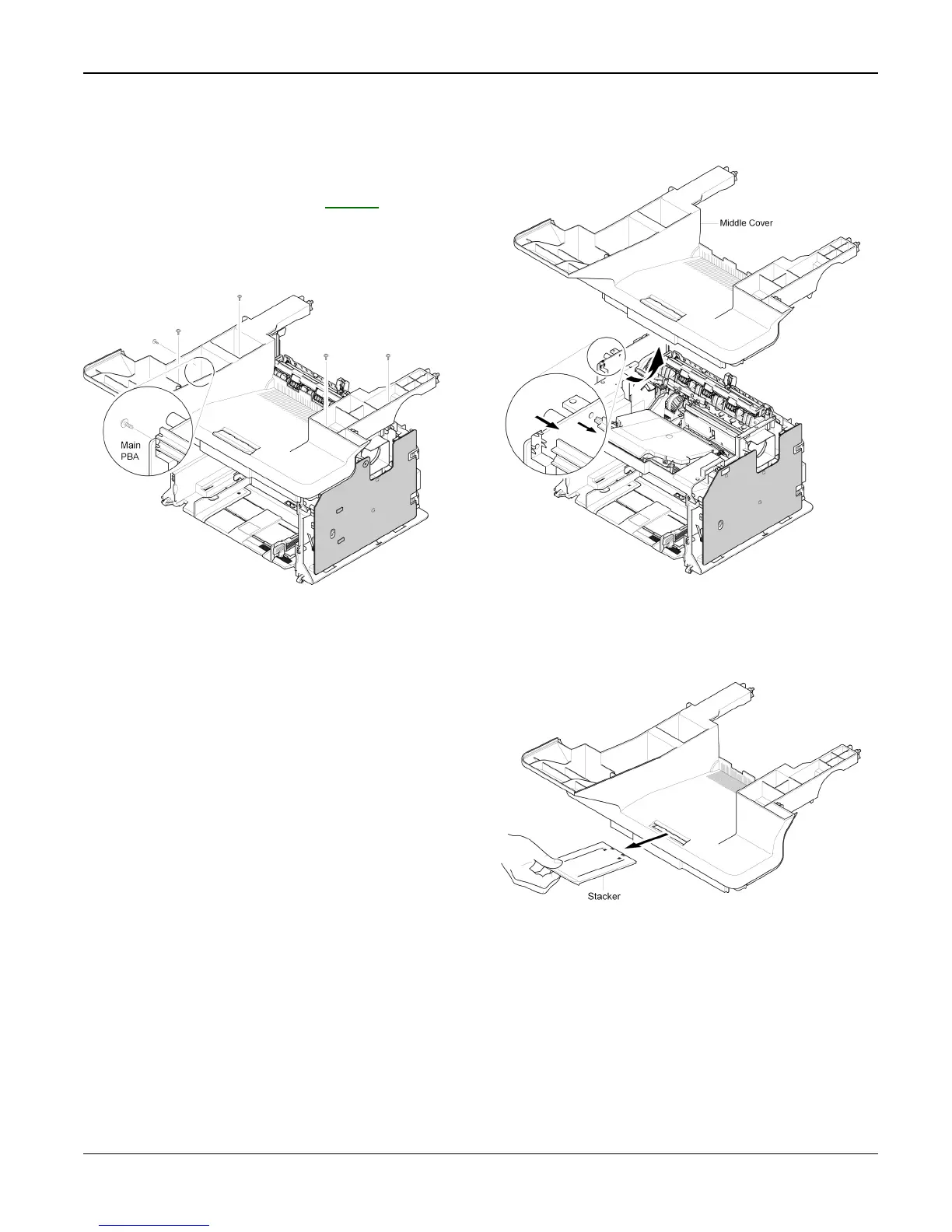

REP 12 Middle Cover
1. Before you remove the Middle Cover, you
should remove:
- Scan Assembly (Refer to REP 8)
2. Remove five screws securing the Middle
Cover.
Figure 1
3. Carefully release the Middle Cover from
the Main PBA.
Figure 2
4. If necessary, take out the Stacker.
Figure 3
