Repairs/Adjustments
Workcentre PE 220 11/05 4-13

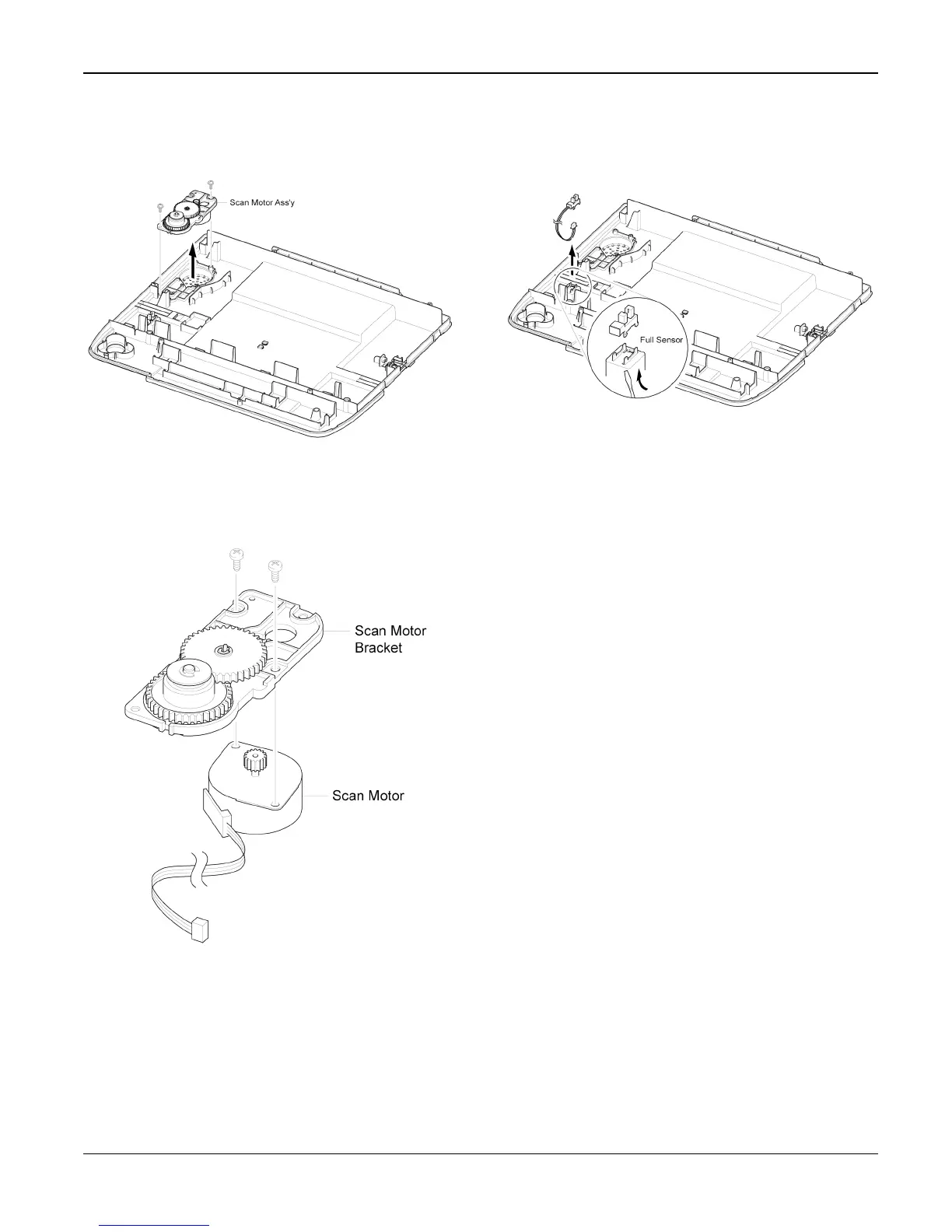

6. Remove two screws securing the Scan
Motor Assembly and remove it.
Figure 5
7. If necessary, remove two screws securing
the Scan Motor and remove it.
Figure 6
8. Using a flat-blade screwdriver remove the
Full Sensor.
Figure 7
