REP 11 Platen Housing
1. Before you remove the Platen Housing,
you should remove:
- Scan Assembly (Refer to REP 8)
- ADF Housing (Refer to REP 9)
- OPE Unit (Refer to REP 10)

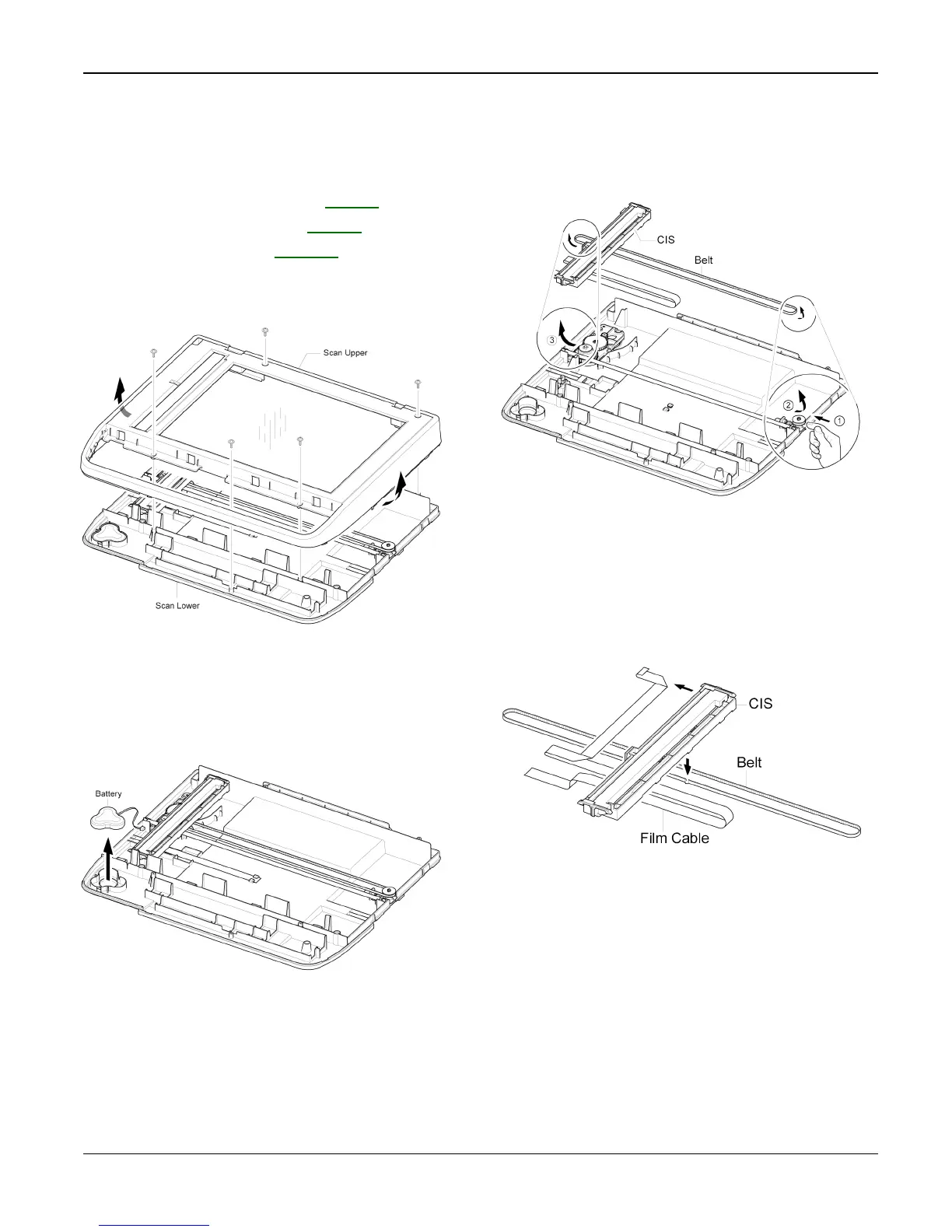

2. Remove five screws from the Scan Upper
and remove it from the Scan Lower.
Figure 1
3. Take out the Battery.
Figure 2
4. Push the Holder in the direction of arrow
and remove the Belt, as shown below.
(The CIS will come out at the same time.)
Figure 3
5. Release the Belt and Flat Cable from the
CIS.
Figure 4
