Repairs/Adjustments
4-16 11/05 Workcentre PE 220

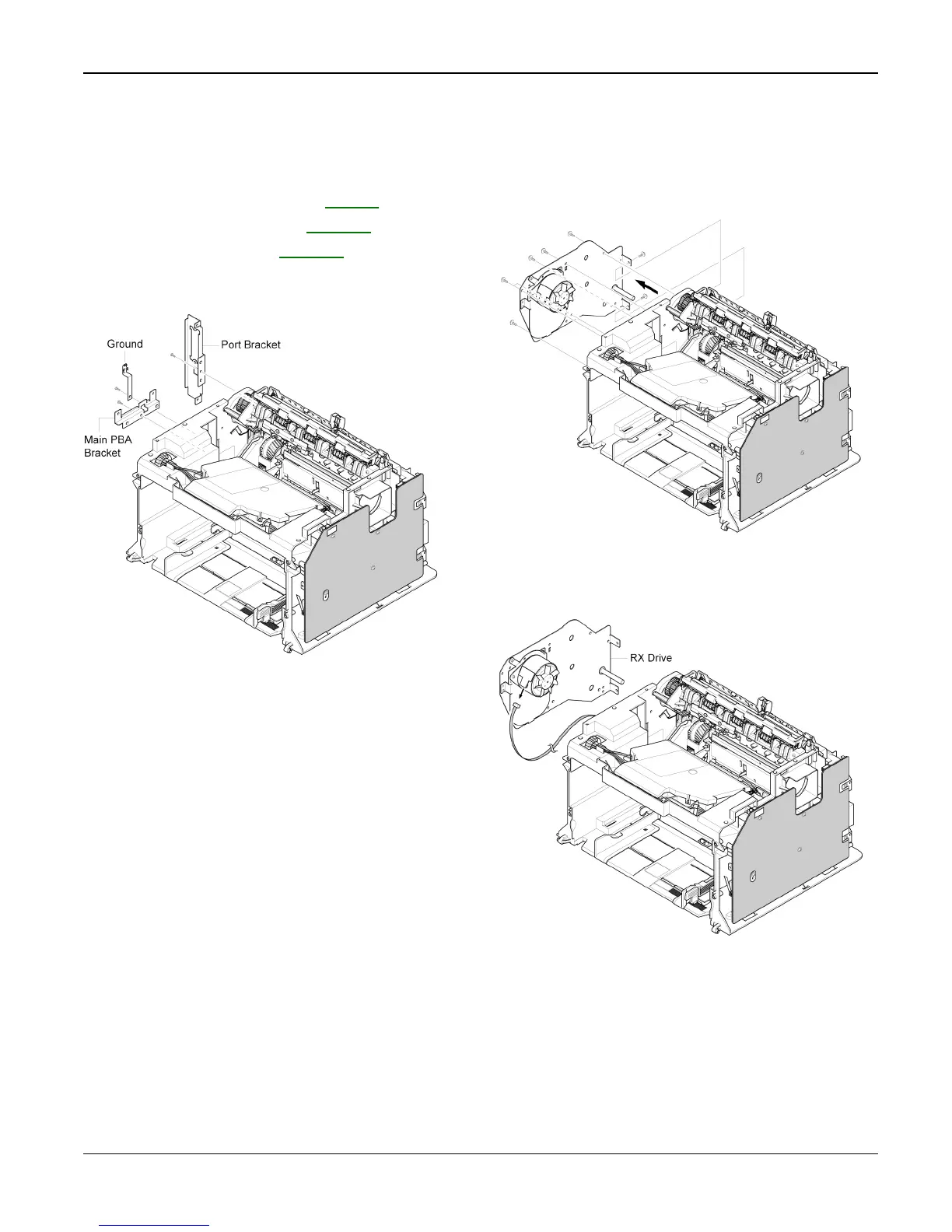

REP 15 RX Drive
1. Before you remove the RX Drive, you
should remove:
- Scan Assembly (Refer to REP 8)
- Middle Cover (Refer to REP 12)
- Main PBA (Refer to REP 14)
2. If necessary, remove Bracket Port,
Bracket Main PBA and Ground.
Figure 1
3. Remove two screws securing the Engine
Shield and remove six screws securing
the Frame, then remove the RX Drive in
the direction of the arrow.
Figure 2
4. Remove the Connector.
Figure 3
