Repairs/Adjustments
4-20 11/05 Workcentre PE 220

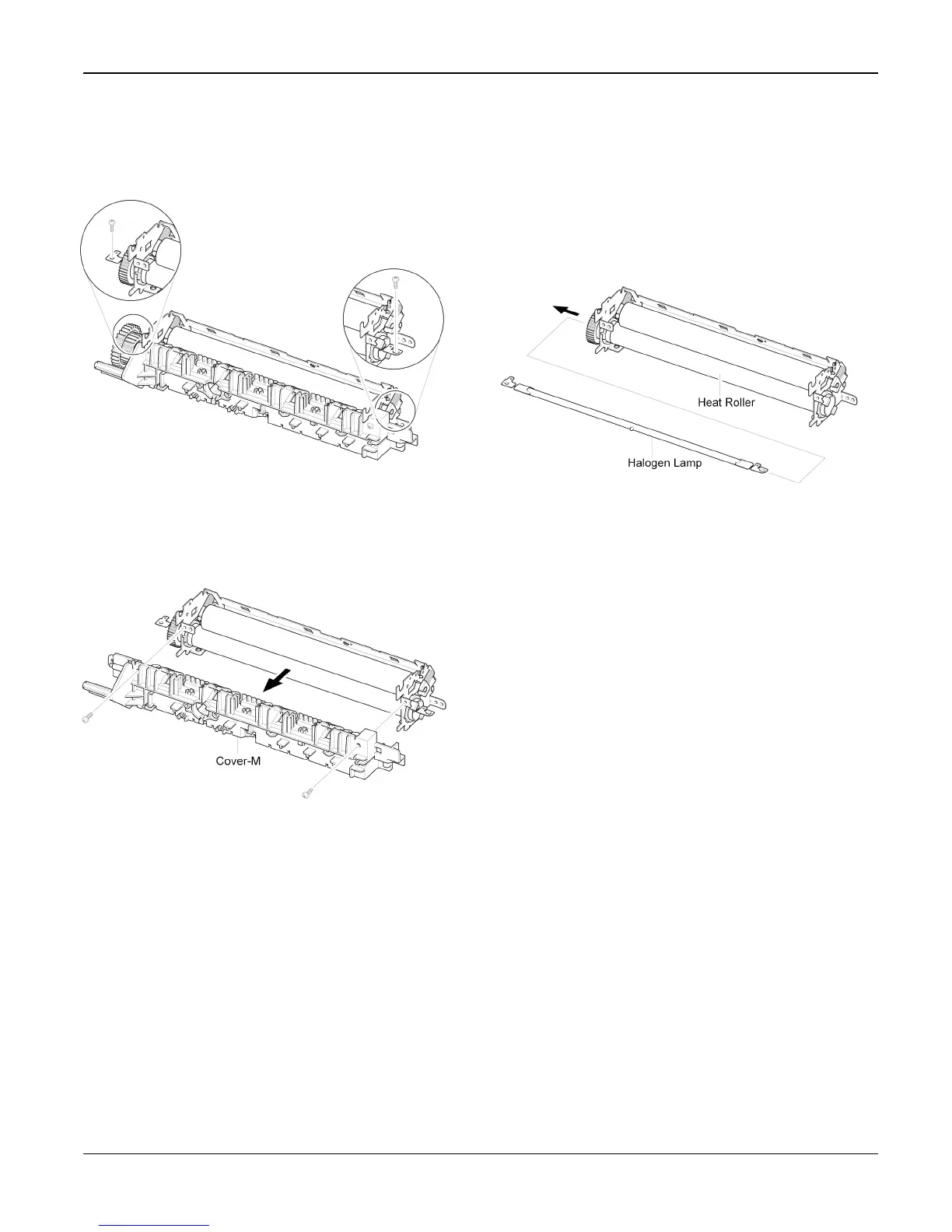

11. Release the CBF Harness from the Halo-
gen Lamp and remove two screws secur-
ing the Halogen Lamp.
Figure 10
12.Remove two screws securing the Cover-
M and remove it.
Figure 11
CAUTION
Do not touch the lamp body (glass). Contami-
nation from your fingers can cause the lamp
to fail.
13.Take out the Halogen Lamp in the direc-
tion of arrow.
Figure 12
To Next Page
