Xerox WORKCENTRE PE 220 User Manual

Repairs/Adjustments
4-10 11/05 Workcentre PE 220

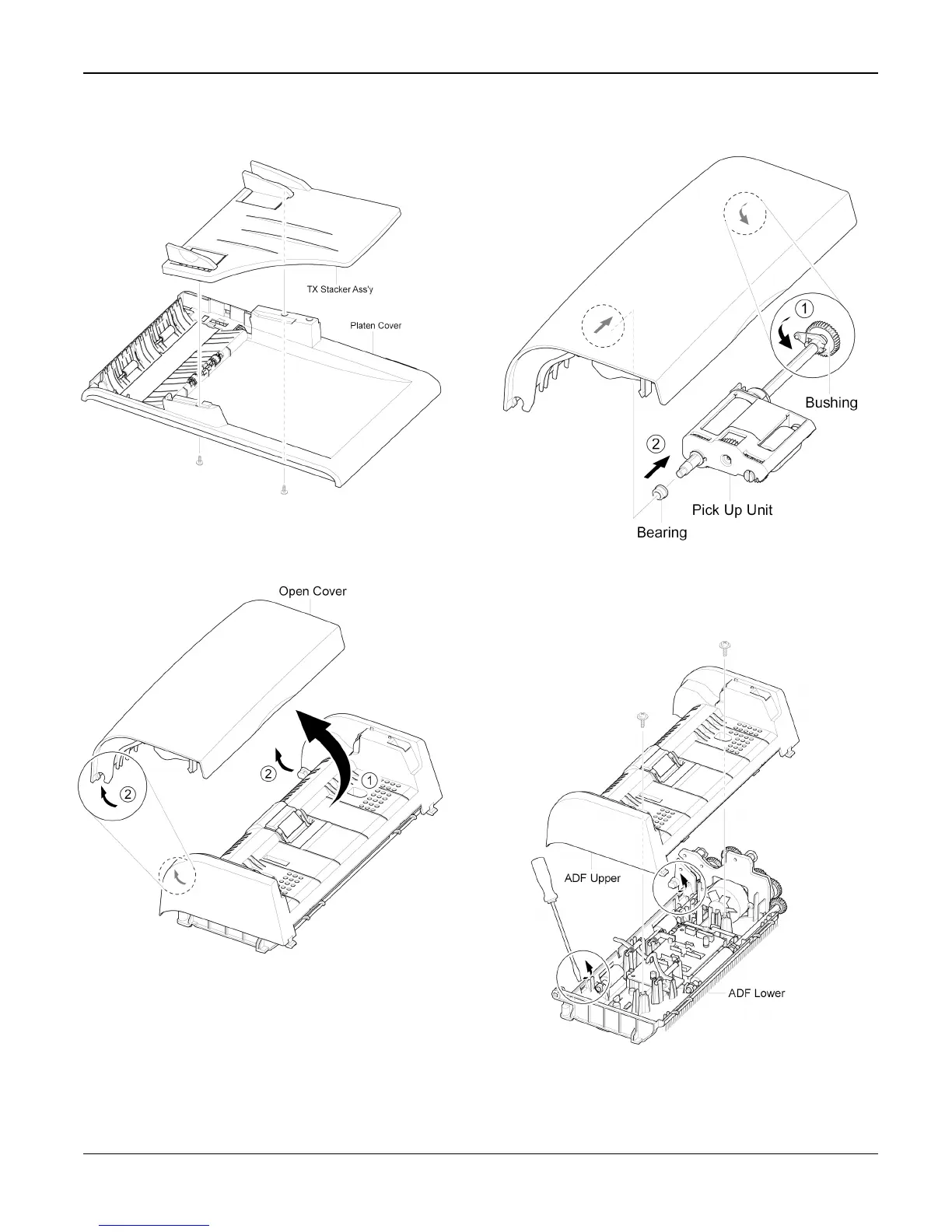

5. If necessary, remove two screws securing
the TX Stacker Assembly.
Figure 4
6. Open the Open Cover and remove the
Open Cover in the direction of the arrow.
Figure 5
7. Pull and rotate the Bushing until it reaches
the slot, then lift the Pick Up Unit.
Figure 6
8. Remove two screws securing the ADF
Upper and insert a flat-blade screwdriver
in to the slot and remove the ADF Upper.
Figure 7
