184 www.xilinx.com 7 Series FPGAs GTP Transceivers User Guide

UG482 (v1.9) December 19, 2016

Chapter 4: Receiver

Figure 4-42 shows the required steps to perform auto RX phase and delay alignment.

X-Ref Target - Figure 4-41

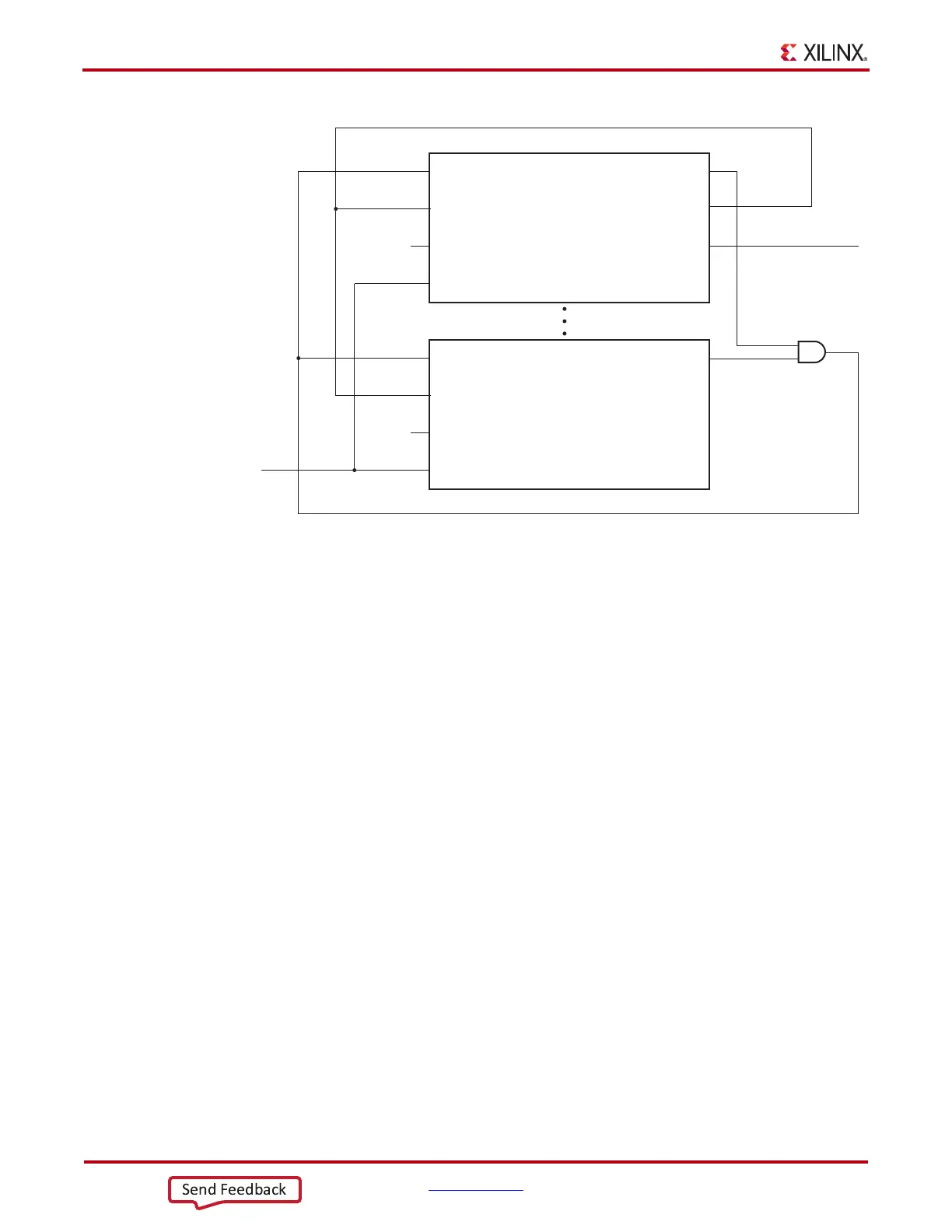

Figure 4-41: RX Buffer Bypass—Multi-Lane Auto Mode Port Connection

UG482_c4_141_020613

Master

RXSYNCMODE

RXSYNCALLIN

RXSYNCIN RXSYNCOUT

RXSYNCDONE

RXPHALIGNDONE

1'b1

RXDLYSRESET

Slave

RXSYNCMODE

RXSYNCALLIN

RXSYNCIN RXSYNCOUT

RXSYNCDONE

RXPHALIGNDONE

1'b0

RXDLYSRESET
