Xinje VH6 Series User Manual

140
Parameter
Name
Range
PA-16
Proportional gain P2
0.0~100.0
PA-17
Integral time I2
0.01s~10.00s
PA-18
Differential time D2
0.000s~10.000s

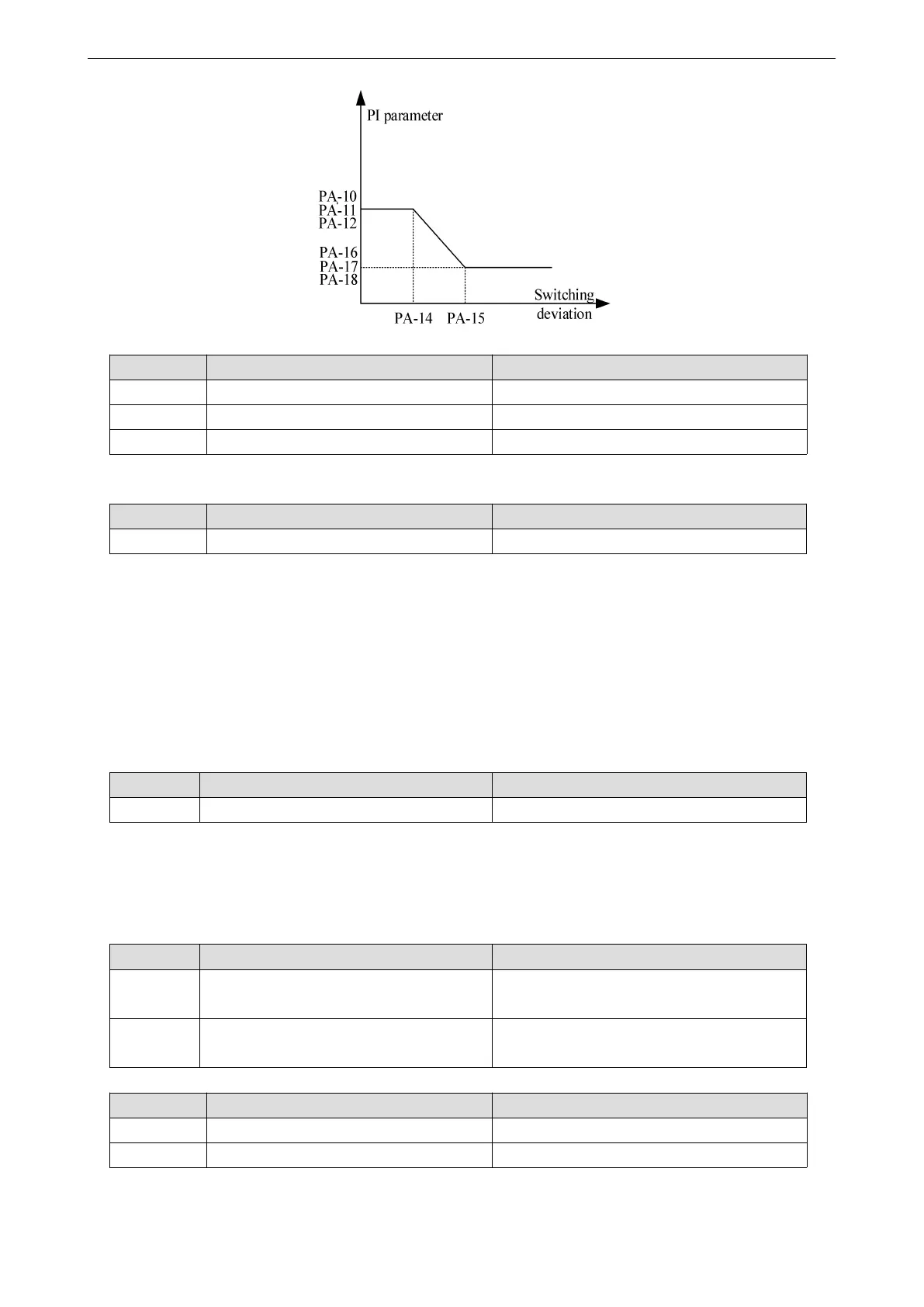

Same to PA-10~PA-12, the second set of PID parameters.
Parameter
Name
Range
PA-19
PID action direction
0: positive action 1: negative action
Positive action: when the feedback signal of PID is less than the given quantity, the output frequency of
frequency converter rises. Such as winding tension control occasions.
Negative action: when the feedback signal of PID is less than the given quantity, the output frequency of
inverter decreases. Such as unwinding tension control occasions.
The function is affected by the reverse action direction of the multi-function terminal PID, which needs
attention in use.
Parameter
Name
Range
PA-20
PID given feedback range
0~65535
PID given feedback range is a dimensionless unit, used for PID given display U0-14 and PID feedback display
U0-15.
The relative value of the given feedback of PID is 100.0%, corresponding to the given feedback range PA-20.
For example, if PA-20 is set to 2000, when PID is given 100.0%, U0-14 is 2000.
Parameter
Name
Range
PA-21
PID maximum deviation between two
outputs
0.00%~100.00%
PA-22
PID minimum deviation between two
outputs
0.00%~100.00%
Parameter
Name
Range
PA-23
PID initial value
0.0%~100.0%
PA-24
PID initial value holding time
0.00s~500.00s
When the VFD is started, PID output is fixed to PID initial value PA-23, and PID does not start closed-loop
adjustment operation until the initial value of PID is maintained for PA-24. The following figure shows the
