2. Installation and wiring
2-1. Installation environment
2-1-1. Environment requirements
It should be installed in a well ventilated indoor place, and the ambient temperature should be within the
range of -10°C ~ 40°C. If the temperature exceeds 40°C, it needs external forced cooling or derating.
Avoid installation in places with direct sunlight, dusty, floating fiber and metal powder.
It is strictly forbidden to install in places with corrosive and explosive gas.
The humidity should be lower than 95% RH without condensation.
It is installed in the place where the fixed vibration is less than 5.9m/s² (0.6G).
Be far away from EMI sources and other electronic equipment sensitive to EMI.
2-1-2. Installation space and direction
Generally, it should be installed vertically.
Minimum requirements for installation spacing and distance.
When multiple frequency converters are installed up and down, the middle part shall be equipped with
guide plate.

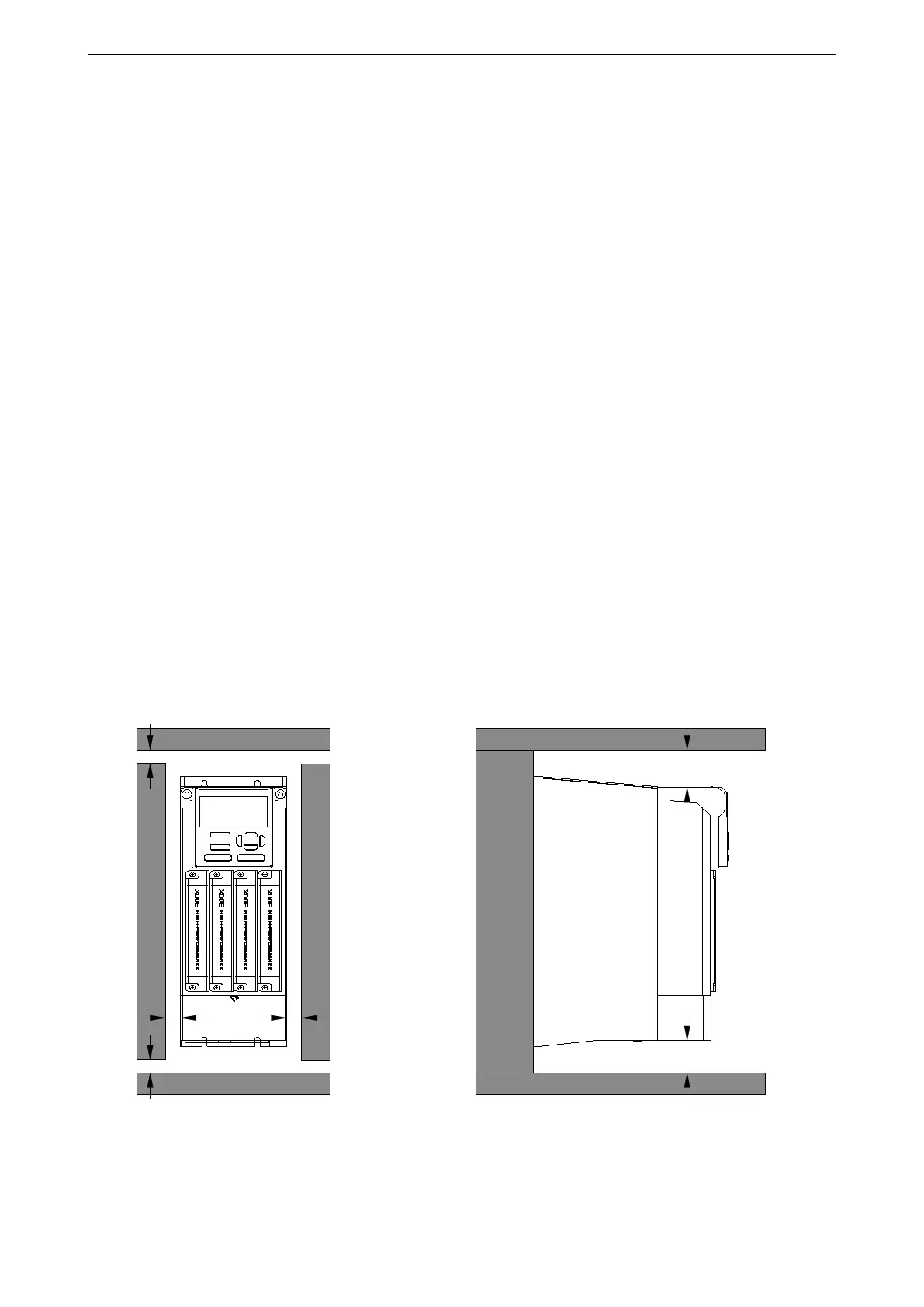

2-1-3. Single installation
Note: According to different power levels of the frequency converter, corresponding installation space needs to
be reserved.
