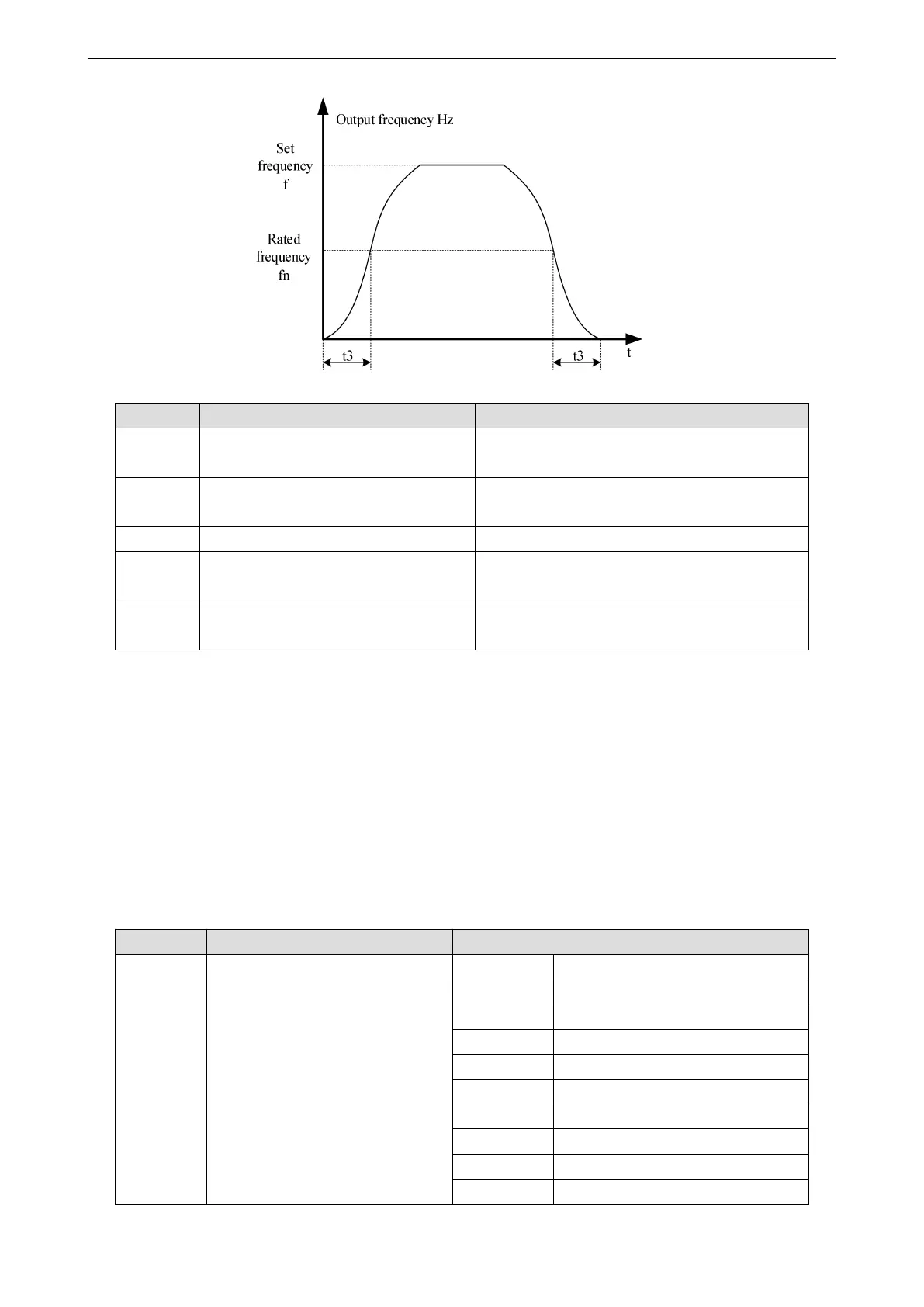

Xinje VH6 Series User Manual

116
Parameter
Name
Range
P4-22
Stop mode
0: Deceleration stop
1: Free stop
P4-23
Starting frequency of DC braking
during shutdown
0.00Hz~max output frequency P0-06
P4-24
DC braking time during shutdown
0.0s~100.0s
P4-25
Percentage of DC braking current at
shutdown
0%~100%
P4-26
DC brake waiting time during
shutdown
0.0s~100.0s
When the shutdown mode is deceleration shutdown, stop the machine according to the set deceleration time; If
the lower limit frequency P0-17 is set, decelerate to P0-17 and set the lower limit frequency, followed by free
shutdown.
The purpose of DC braking during shutdown is to stop quickly. For some objects with large inertia, the
frequency of frequency converter may decrease, but the load inertia is large and the speed does not decrease.
The object can be stopped quickly by DC braking. Braking process: the frequency converter drops according to
the set deceleration time. When the frequency drops to P4-23, wait for the time set by P4-26, and then brake
with the current set in P4-25. The braking time is P4-24.
4-2-6. Group P5 VF parameters
Parameter
Name
Range
P5-00
VF curve setting
0
Line VF
1
Multi-point VF
2
Square VF
3
The 1.2nd power VF
4
The 1.4th power VF
6
The 1.6th power VF
8
The 1.8th power VF
9
Reserved
10
VF complete separation mode
11
VF half separation mode
