Output Conguraon
All of the output opons shown below apply to 208V input systems and 240V input systems.

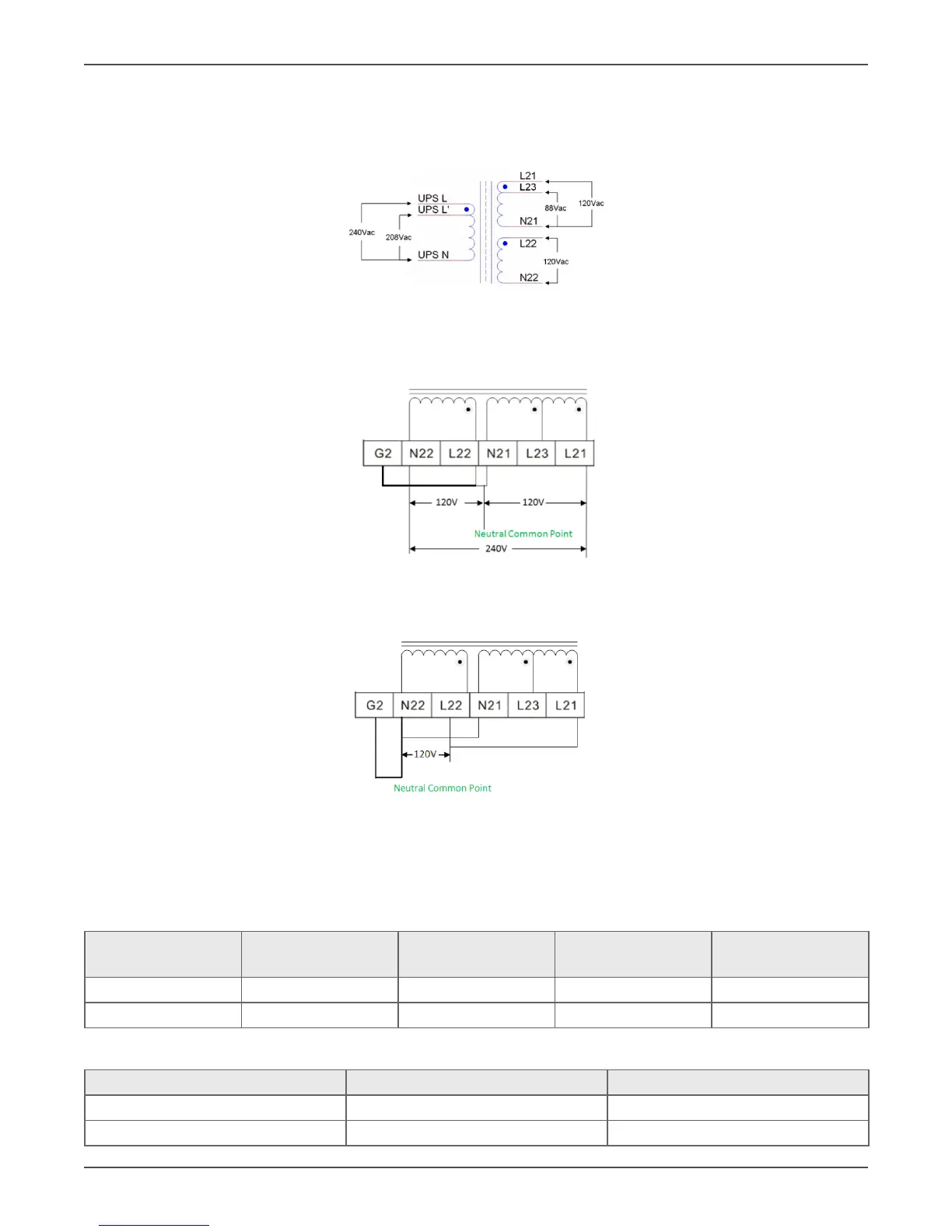

Opon 1: 120V/240VAC - THIS IS THE DEFAULT OPTION FOR ALL UNITS: Each branch max loading 50%. Please
note the jumpers between G2-L22 and L22-N21 for this opon.
Opon 2: 120V full capacity output. Please note the jumpers between G2-N22, N22-N21, and L22-L21 for this
opon. See below.
For any other output conguraons needed, please contact Xtreme Power Tech Support.
Please refer to the specicaons of input current, output current and recommended conductors listed below.
a. AC input and output (minimum 75°C copper wire)
Model Maximum Input
Current
Input Breaker Size Input & Output
Conductor Secon
Terminal Torque
Force
6KVA 33 A 40 A AWG #8 17.7/11 lb-in
10KVA 54.3 A 60 A AWG #6 23 lb-in
b. Baery input
Model Maximum Current Conductor Secon
6KVA 25 A AWG #10
10KVA 41 A AWG #10
