Xtreme TX90 6kVA - Check Measured Values and Figures Detected by the UPS

Xtreme Power Conversion Corporaon
TX90 6kVA & 10kVA Service Manual
Page 15
Uninterrupble Power Supply
H
Ulity input is “0” and Ulity Abnormal.
I
Check Measured Values and Figures Detected by the UPS

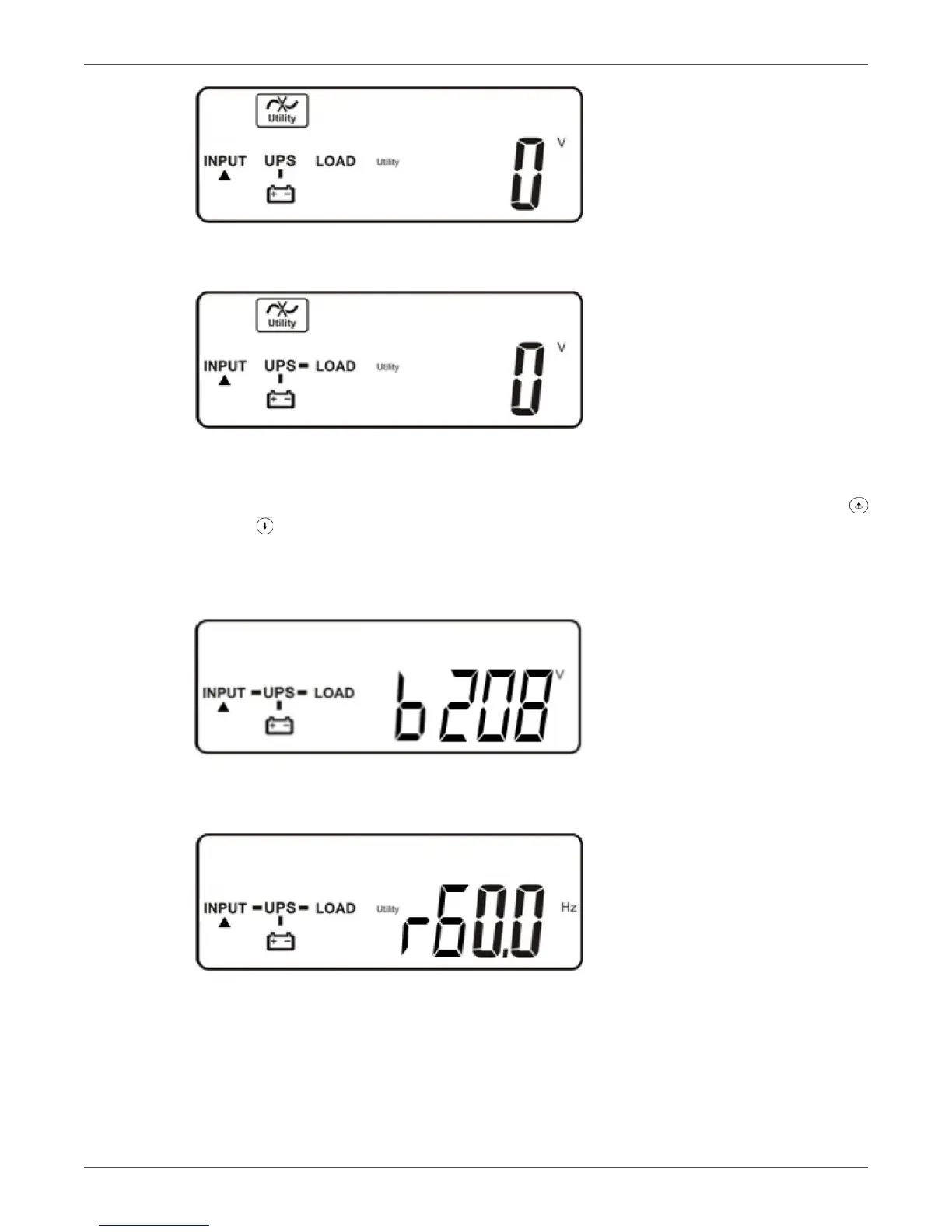

• If you would like to check the measured values and gures detected by the UPS, use the scroll up
and scroll down keys. When you scroll down the LCD will display gure C (Voltage from Ulity Input)
→ gure I1 (Voltage from Bypass Input) → gure J (Frequency from Ulity Input) → gure K (Frequency
from Bypass Input) → gure L (UPS Output Voltage) → gure M (UPS Output Frequency) → gure N (UPS
Output Load %) → gure O (UPS Baery Voltage) → gure P (UPS Inner Temperature).
I1
Voltage comes from Bypass Input.
J
Frequency of Ulity Input
