Uninterrupble Power Supply

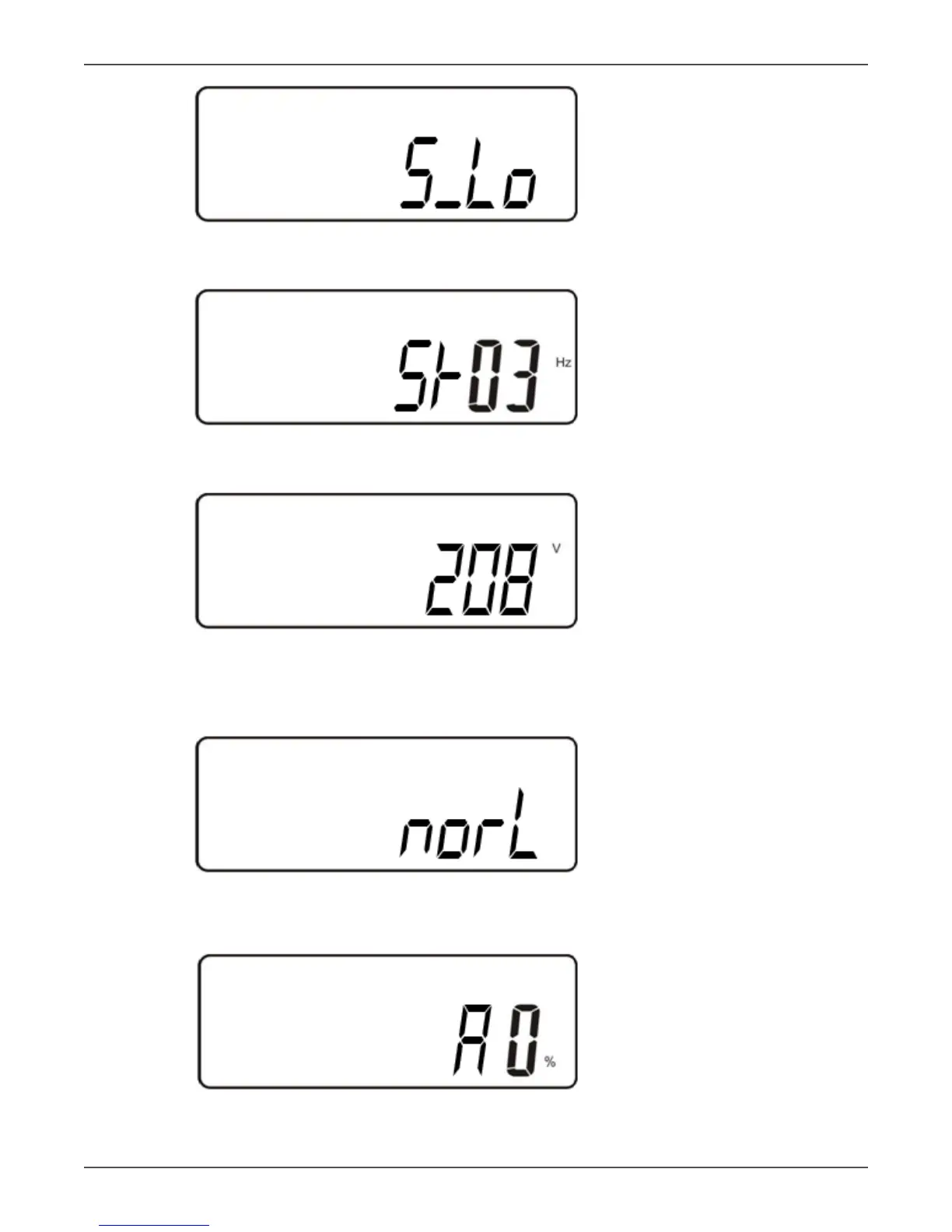

S
Bypass Voltage is adjusted to narrow range. Selectable to Lo or Hi.
T
Frequency Window is +/-3 Hz. Selectable to ± 1Hz.
U
Inverter output voltage set to 208V. Selectable to 200, 208, 220, 230, 240V. This is the voltage
sent to the output transformer primary. The UPS output voltages depend on what output con-
guraon is chosen. Please refer to the Output Conguraon secon of this manual.
V
The UPS is operang in “normal mode”. Selectable to ECO, CF50, CF60, and Normal.
W
Output Voltage Adjustment (-1, -2, -3, 0, 1, 2, 3%)
