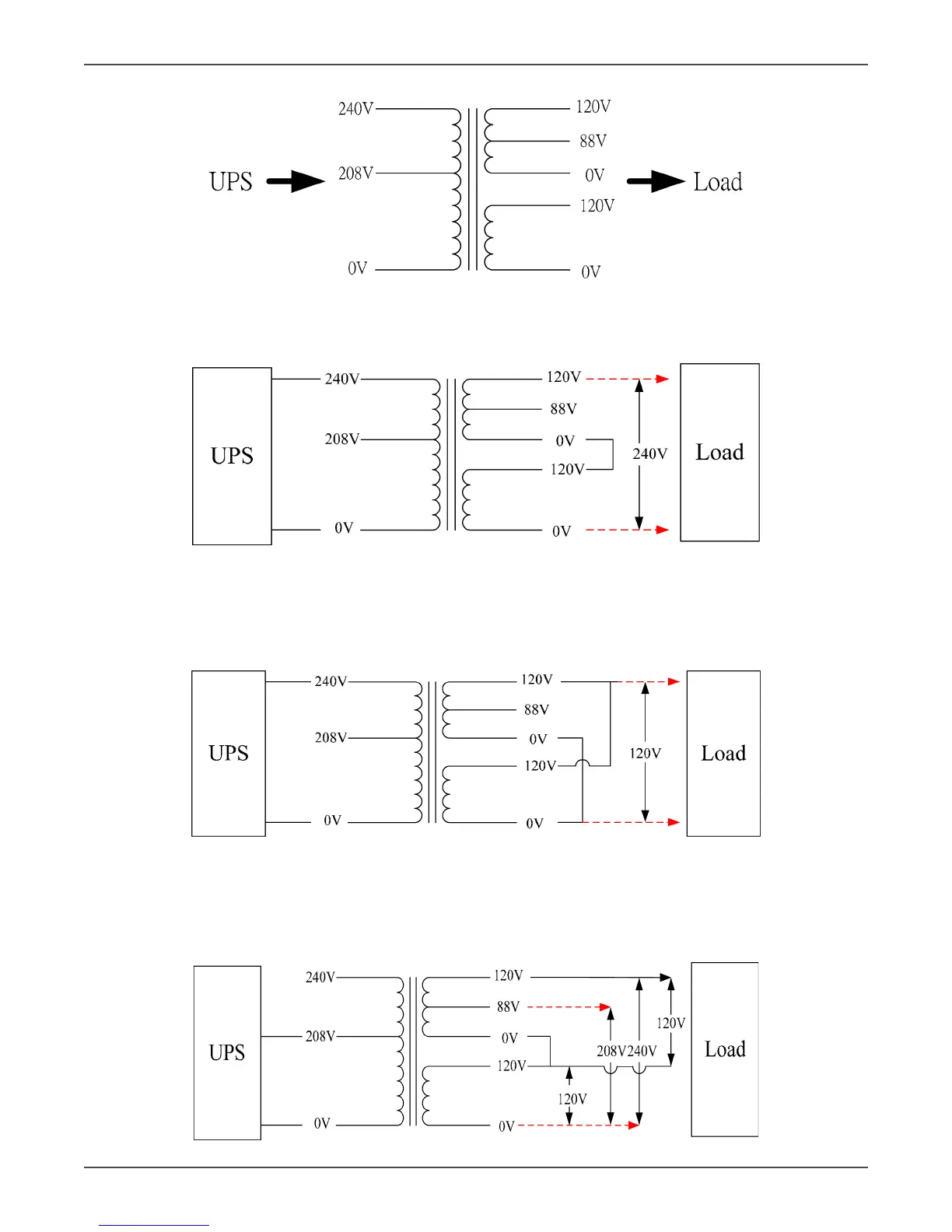

The Structure of the Transformer
Input Coil: 0V~240V, Output Coil: 0V~240V
Calibraon2 Block: I/P Voltage → Else system, O/P Voltage → 220V system
The turns rao of Primary and Secondary of the transformer is 1 to 1.
Input Coil: 0V~240V, Output Coil: 0V~120V
Calibraon2 Block: I/P Voltage → Else system, O/P Voltage → 120V system
The turns rao of primary and secondary of the transformer is 2 to 1.
Input Coil: 0V~208V, Output Coil: 0V~208V
Calibraon2 Block: I/P Voltage → 208V system, O/P Voltage → 208V system
