Xtreme Power Conversion Corporaon
TX90 6kVA & 10kVA Service Manual
Page 37
Uninterrupble Power Supply

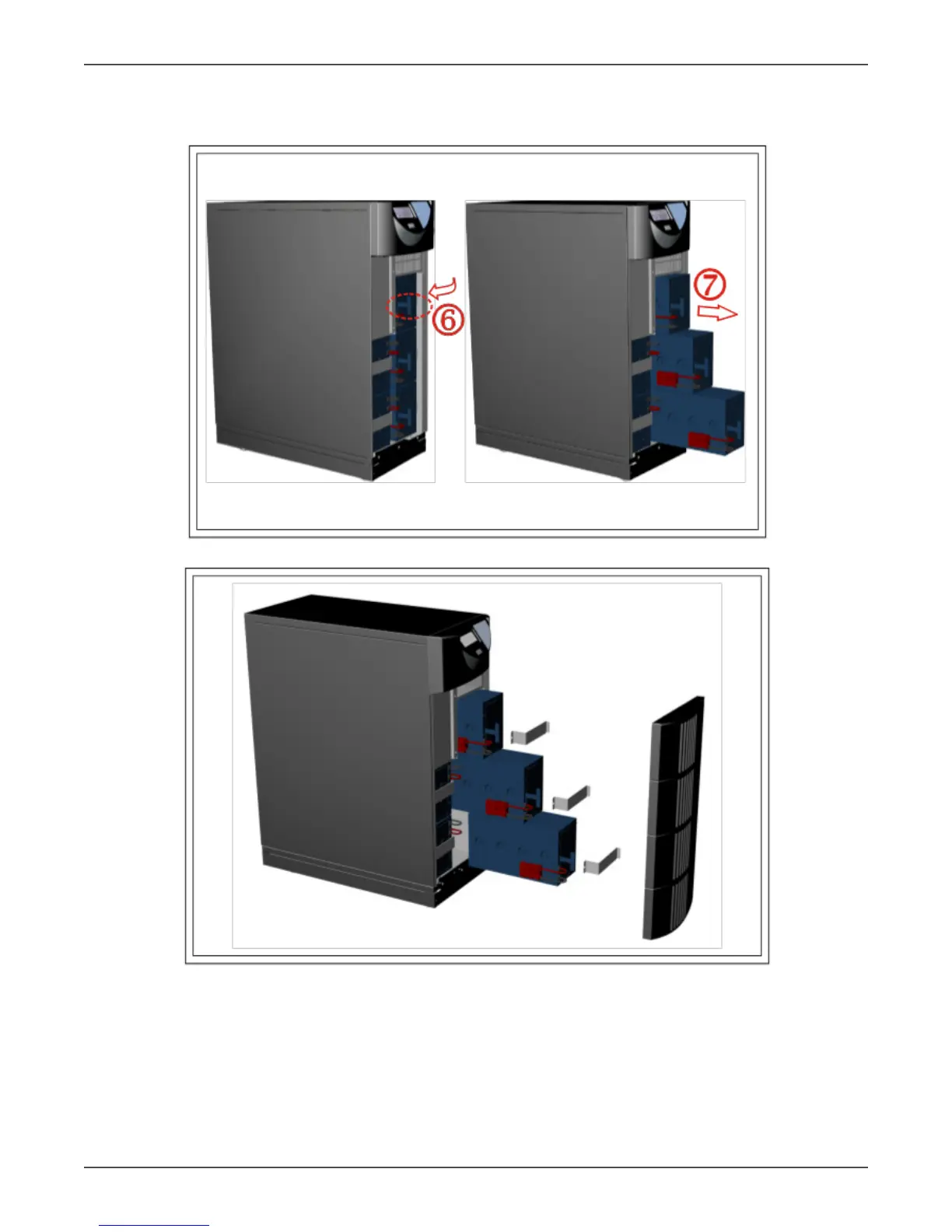

6. Rotate the baery pack handle 90 degrees as shown in Step 6.
7. Remove the baery packs from the UPS as shown in Step 7.
