Convenient Functions
Dual Reception (DW) Function
Display Operation
Transmission: 1
second to 10 seconds
While receiving radio broadcast and ham radio band frequencies (A-band
and B-band) on standby simultaneously with [AF-DUAL Reception
Function], the transceiver switches signal reception to the standby upon
detecting it. After the user transmits signal for response and transmission
ends, the transceiver switches signal reception back to radio broadcast
after the specified time from the end of transmission. If a signal is received
before transmitting it, [AF-DUAL Reception Function] is disabled and the
transceiver continually receives a signal over that frequency.
9 Press p to set the radio broadcast resumption time for
reception and Transmission, and exit the Set mode.

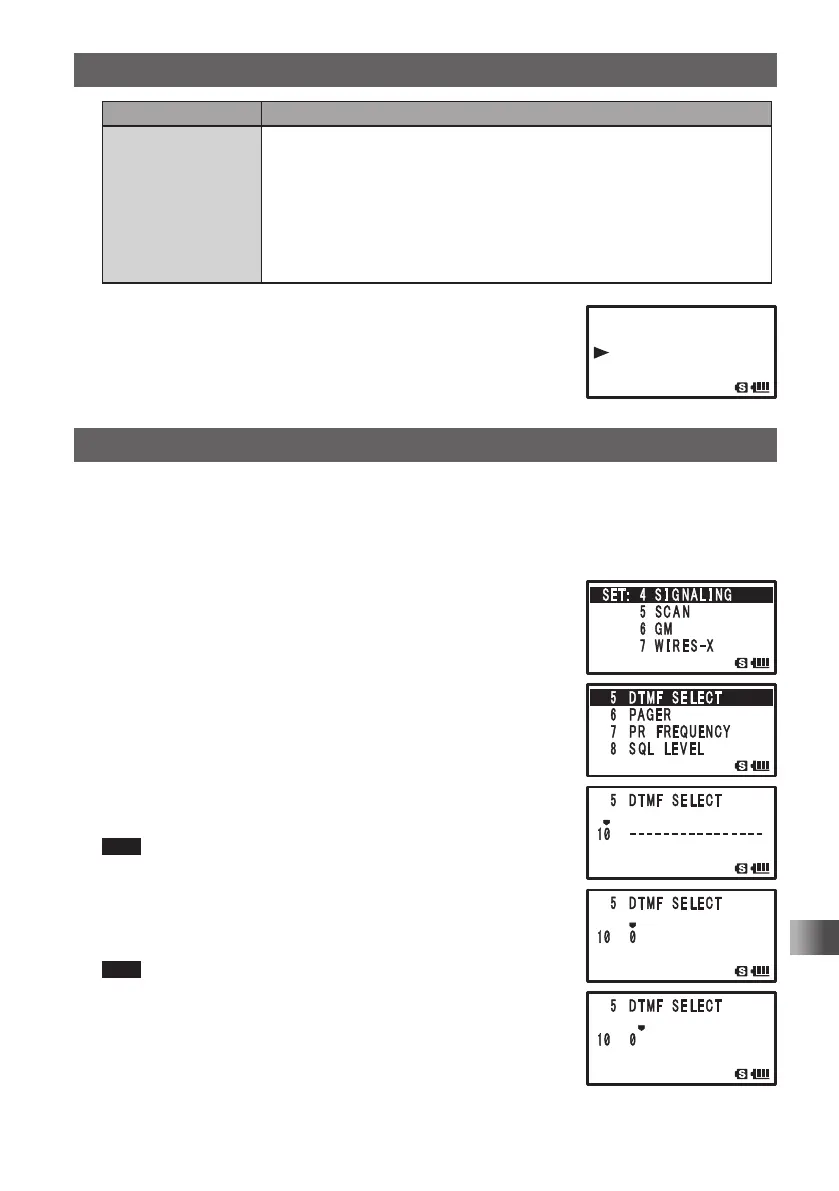

Using the DTMF Function
DTMF (Dual Tone Multi Frequencies) is the tone signal sent for making a call through
DTMF telephone line. The maximum of 16 digit DTMF code can be registered (up to 10
channels) for telephone numbers to make a call through the public telephone line from a
phone patch.
1 Press and hold M for over 1 second to enter the Set
mode.
2 Turn O to select [4 SIGNALING].
3 Press H.
4 Turn O to select [5 DTMF SELECT].
5 Press H.
6 Turn O to select a memory channel to register the DTMF
code (1 to 10).
7 Press H.
8 Input the DTMF code with O.
Tips • DTMF code can also be entered with the numeric keys.
• To delete a code, press F. When F is pressed, a code is
deleted and the cursor moves to left.
9 Press H to move the cursor.
10 Repeat steps 8 and 9 to enter the DTMF code.
Tips The maximum of 16 digits for DTMF code can be entered.
䎃 䎖 䎃 䎵 䎻 䎃 䎤 䎩 䎃 䎧 䎸䎤䎯䎸䎤䎯
䎃 䎃䎃䎃 䎃 䎷 䎵 䎻 䎃 䎕
䏖 䏈 䏆
䎃
䎶䎨䎷䎝䎃䎃䎕 䎃 䎷 䎻 䎒 䎵 䎻
䎃䎃䎃䎃䎃䎃䎃䎃䎖 䎃 䎰䎨䎰䎲䎵䎼
䎃䎃䎃䎃䎃䎃䎃
䎃䎗 䎃 䎶 䎬 䎪 䎱 䎤 䎯 䎬 䎱䎪
䎃䎃䎃䎃䎃䎃䎃
䎃䎘 䎃 䎶䎦䎤䎱
䎖 䎃 䎤 䎸 䎧 䎬 䎲
䎔 䎃 䎰䎲䎧䎨
䎃 䎕 䎃 䎧 䎬 䎪 䎬 䎷 䎤 䎯
䎖 䎃 䎵 䎻 䎃 䎤 䎩 䎃 䎧䎸䎤䎯
䎗 䎃 䎹䎲䎯䎃 䎰䎲䎧䎨
䎃 䎔 䎃 䎰 䎬 䎦 䎃 䎪 䎤 䎬 䎱
䎃䎕䎃䎃䎰䎸䎷䎨
