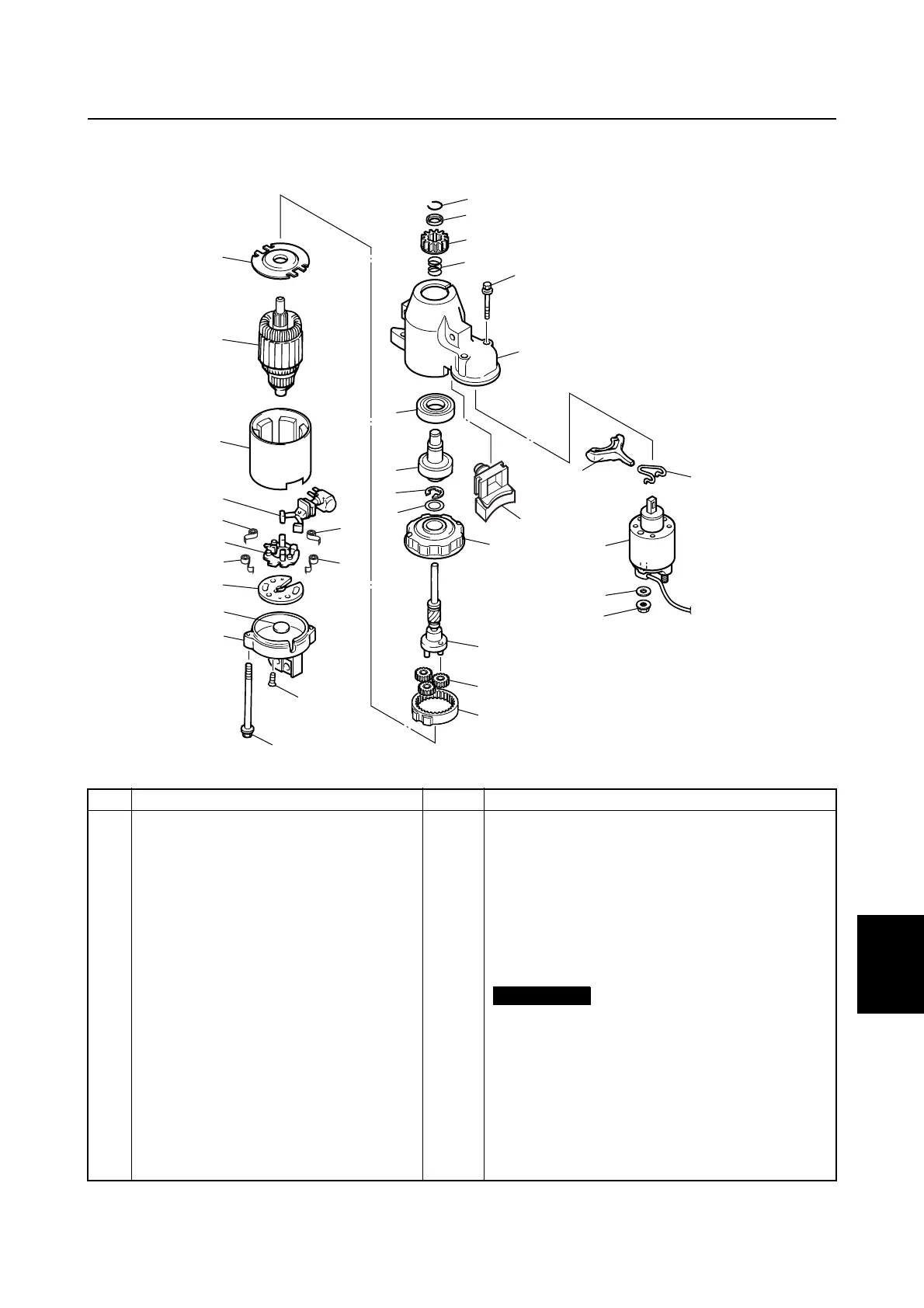

Starter motor
8
No. Part name Q’ty Remarks
1 Clip 1
2 Pinion stopper 1
3 Starter motor pinion 1
4Spring 1
5Bolt 2 M6
×
35 mm
6 Housing 1
7 Bearing 1
8 Clutch assembly 1
9 E-clip 1
Not reusable
10 Washer 1
11 Bracket 1
12 Pinion shaft 1
13 Planetary gear 3
14 Outer gear 1
15 Plate 1
16 Armature 1
17 Stator 1
