PERIODIC CHECKS AND ADJUSTMENTS
PERIODIC MAINTENANCE
3.

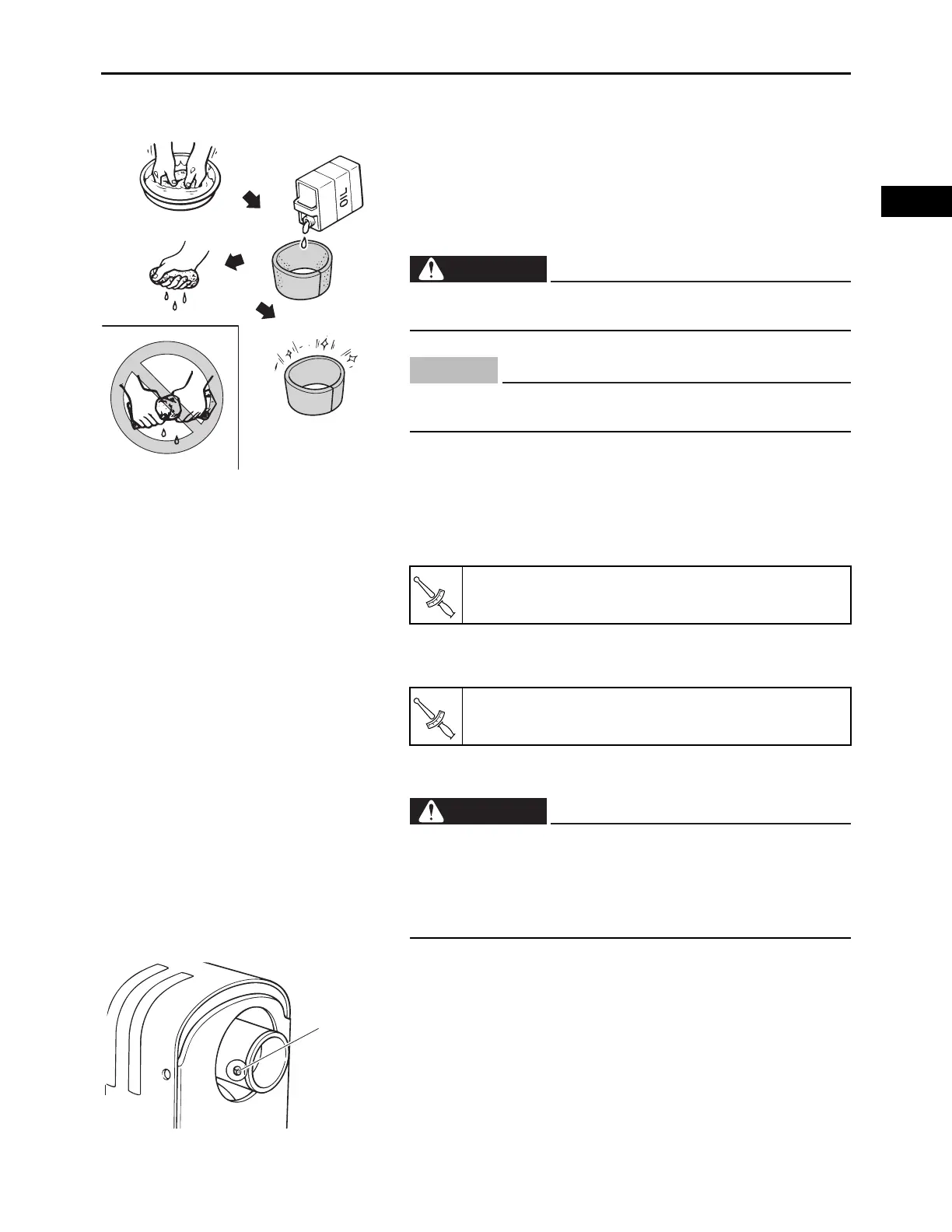

Check:
• Air filter element
Damage Replace.
Clogged Wash the element with white kerosene,
and then dry it thoroughly.
Oil the element and squeeze out the excess oil.
4.
Install:
• Air filter element
• Air filter element nut
• Air filter cover
• Air filter cover nut
MUFFLER
1.
Remove:
• Spark arrester screw “1”
Do not wash the element with gasoline or with acidic,
alkalic, or organic solvents.
Do not wring out the element. This could cause it to
tear.
Air filter element nut:
0.9 N·m (0.09 kgf·m, 0.66 lb·ft)
Air filter cover nut:
1.6 N·m (0.16 kgf·m, 1.2 lb·ft)
The engine and muffler will be very hot after the
engine has been run.
Avoid touching the engine and muffler while they are
still hot with any part of your body or clothing during
check or repair.
