ENGINE
PISTON, CAMSHAFT, CRANKCASE, AND CRANKSHAFT

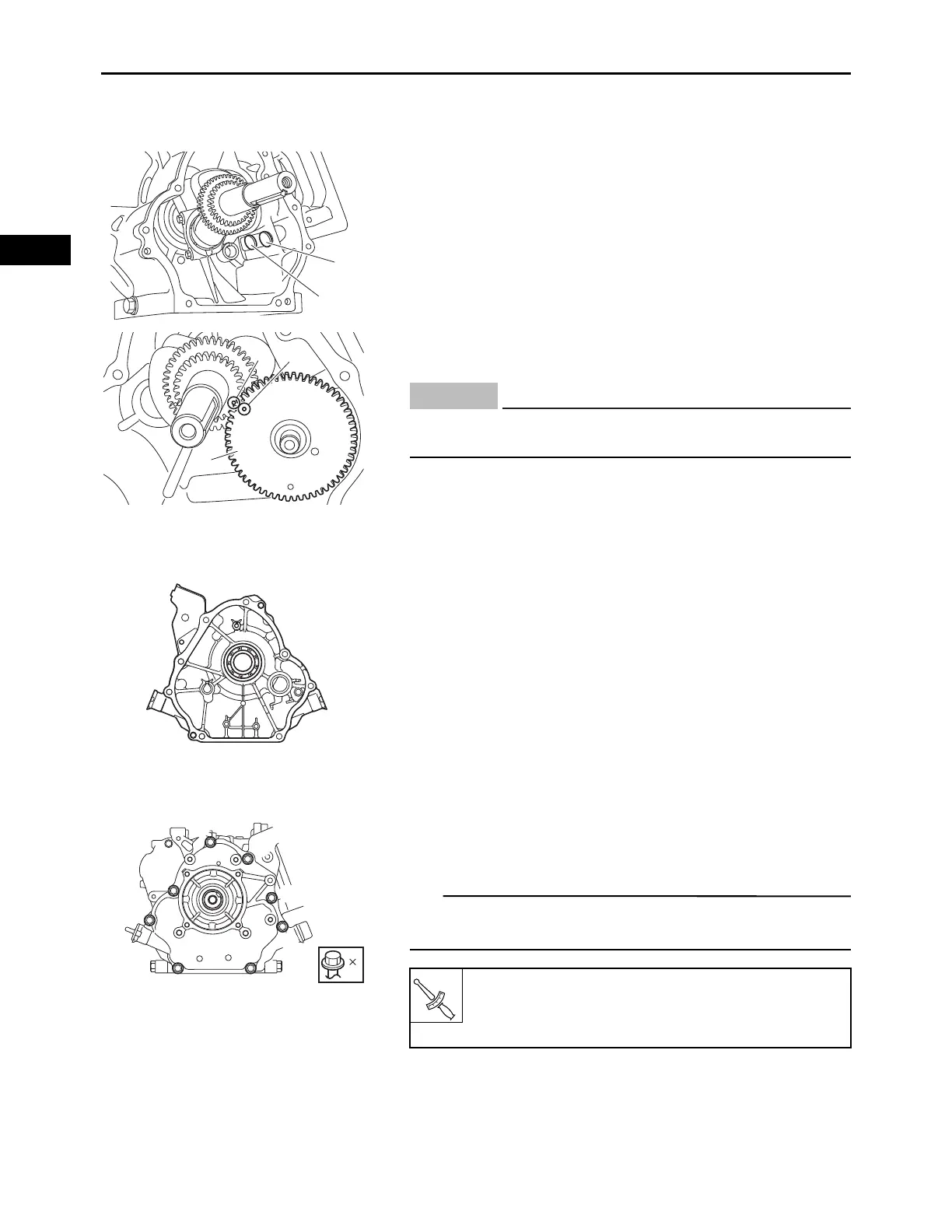

INSTALLING THE VALVE LIFTER AND CAMSHAFT
1.
Install:
• Intake valve lifter “1”
• Exhaust valve lifter “2”
2.
Install:
• Camshaft “1”
CHECKING THE CRANKCASE COVER
1.
Check:
• Crankcase cover
Damage  Replace.
• Bearing
Noise/wear/rotational failure  Replace.
INSTALLING THE CRANKCASE COVER
1.
Install:
• Crankcase cover
• Crankcase cover bolts “1” to “8”
TIP
Tighten the bolts to the specified torque in two steps and in
order from “1” to “8”.
1
2
b
a
1
Be sure to align the camshaft “1” gear mark “b” with
the crankshaft gear mark “a”.
NOTICE
1
5
3
7
26
4
8
8
Crankcase cover bolt:
1st: 12 N·m (1.2 kgf·m, 8.9 lb·ft)
2nd: 30 N·m (3.0 kgf·m, 22 lb·ft)
