Yamaha MX250 - Component Testing and Continuity Checks

5-4
1
2
3
4
5
6
7
8
9
10
ELECTRICAL
ELECTRICAL COMPONENTS
CHECKING THE SWITCH CONTINUITY
Check each switch for continuity with the tester. If the con-
tinuity reading is incorrect, check the wiring connections
and if necessary, replace the switch.
TIP
• Before checking for continuity, set the digital circuit tester
to the “  ” range.
• When checking for continuity, switch back and forth
between the switch positions a few times.

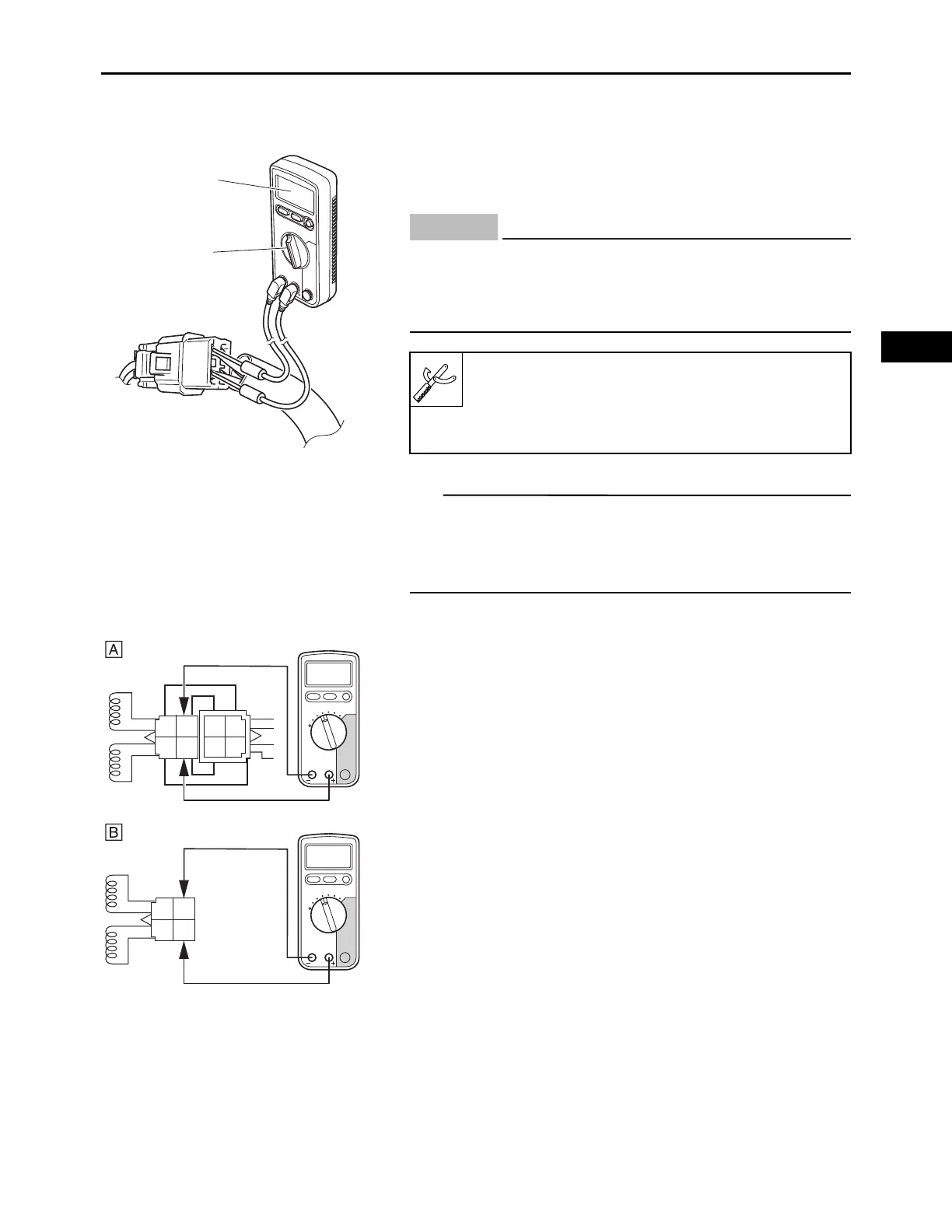

Measurement example of the electric components
CHECKING THE IGNITION SPARK GAP
1.
Check:
• Engine oil level
Insufficient  Add the engine oil.
(Refer to “ENGINE OIL LEVEL” on page 2-4)
Ω”
”
O.L”
”
Never insert the tester probes into the coupler termi-
nal slots. Always insert the probes from the opposite
end of the coupler, taking care not to loosen or dam-
age the leads.
Model 88 Multimeter with tachometer:
YU-A1927
Digital circuit tester (CD732):
90890-03243
NOTICE
W
W
W
W
O
O
L
L
A. Connect the connector and check.
W
W
W
W
B. Disconnect the connector and check.
