ENGINE
AIR FILTER
AIR FILTER

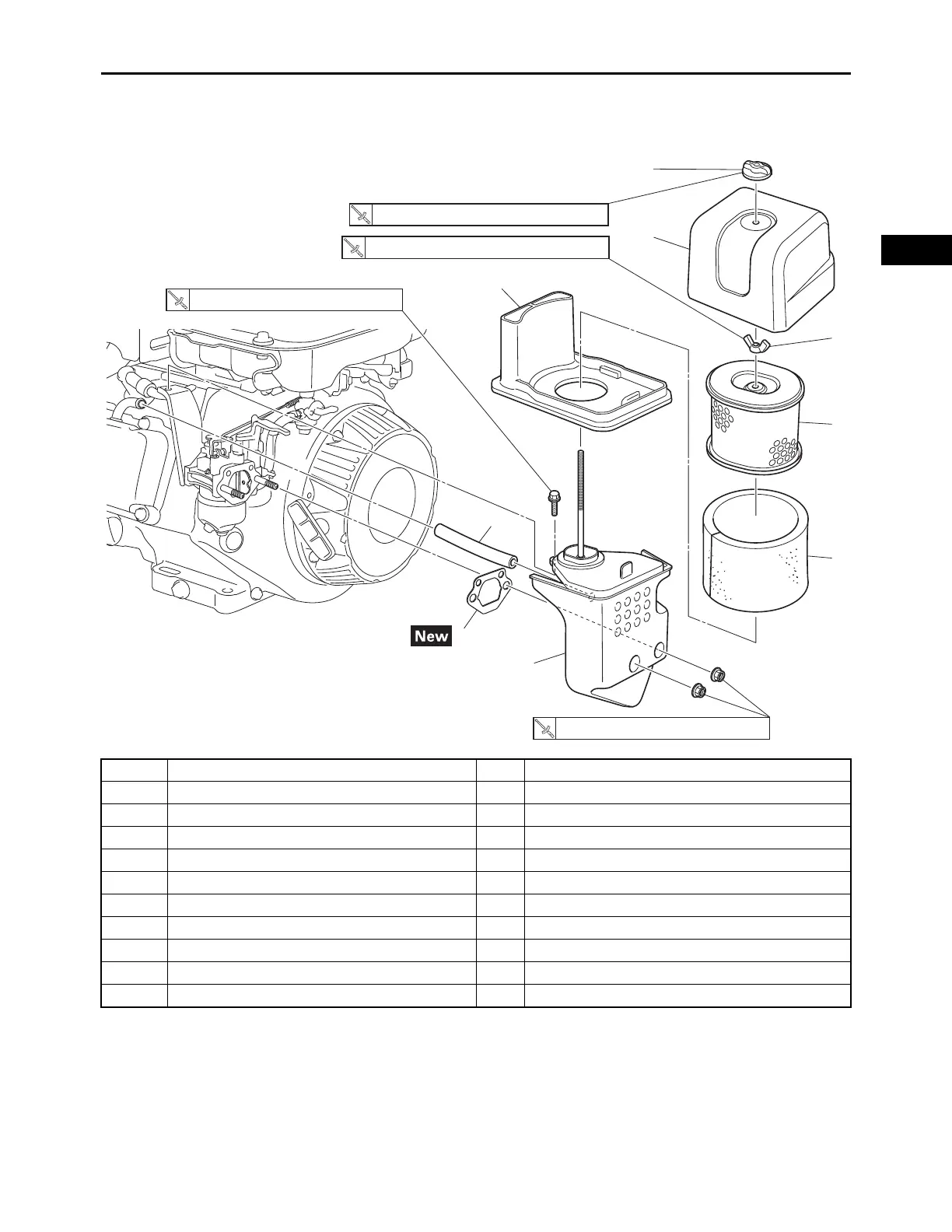

Order Job/Parts to remove Q’ty Remarks
Removing the air filter Remove the parts in the order listed.
1 Air filter cover nut 1
2 Air filter cover 1
3 Air filter element nut 1
4 Air filter element case 1
5 Air filter element 1
6 Air filter case 1
7 Breather hose 1
8Duct 1
9Gasket 1
1
2
3
4
5
6
7
8
9
0.9 N · m (0.09 kgf · m, 0.66 lb · ft)
1.6 N · m (0.16 kgf · m, 1.2 lb · ft)
7 N · m (0.7 kgf · m, 5.2 lb · ft)
9 N · m (0.9 kgf · m, 6.6 lb · ft)
