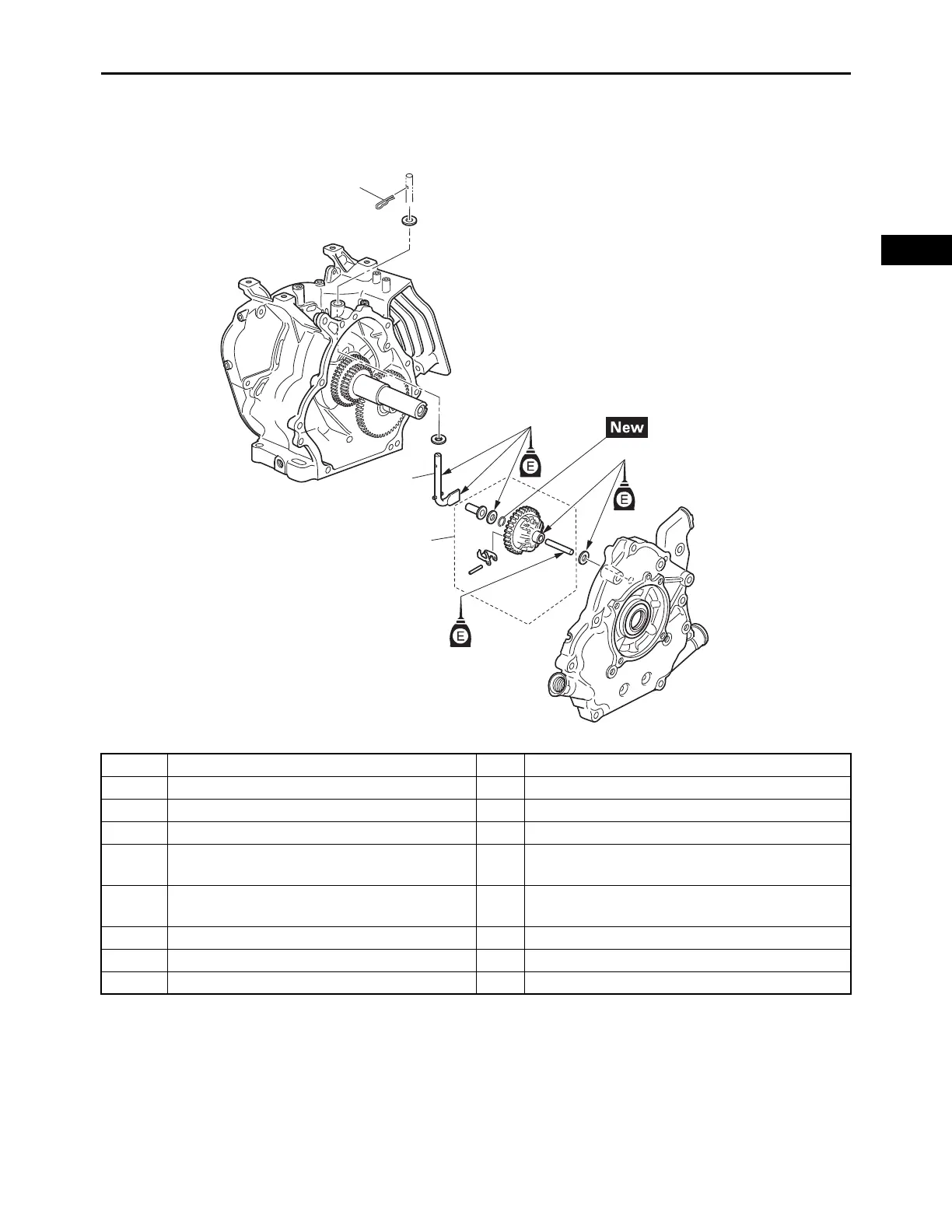

ENGINE
GOVERNOR
FLYWEIGHT SHAFT ASSEMBLY
Order Job/Parts to remove Q’ty Remarks
Removing the flyweight shaft assembly Remove the parts in the order listed.
Fuel tank Refer to “FUEL TANK” on page 3-4.
Fuel tank stay Refer to “FUEL TANK” on page 3-4.
Engine switch and oil warning unit
Refer to “ENGINE SWITCH AND OIL
WARNING UNIT” on page 3-21.
Crankcase cover
Refer to “PISTON, CAMSHAFT, CRANK-
CASE, AND CRANKSHAFT” on page 3-32.
1 Clip 1
2Governor fork 1
3 Flyweight shaft assembly 1
