Yamaha MX250 - Flywheel

3-12
1
2
3
4
5
6
7
8
9
10
ENGINE

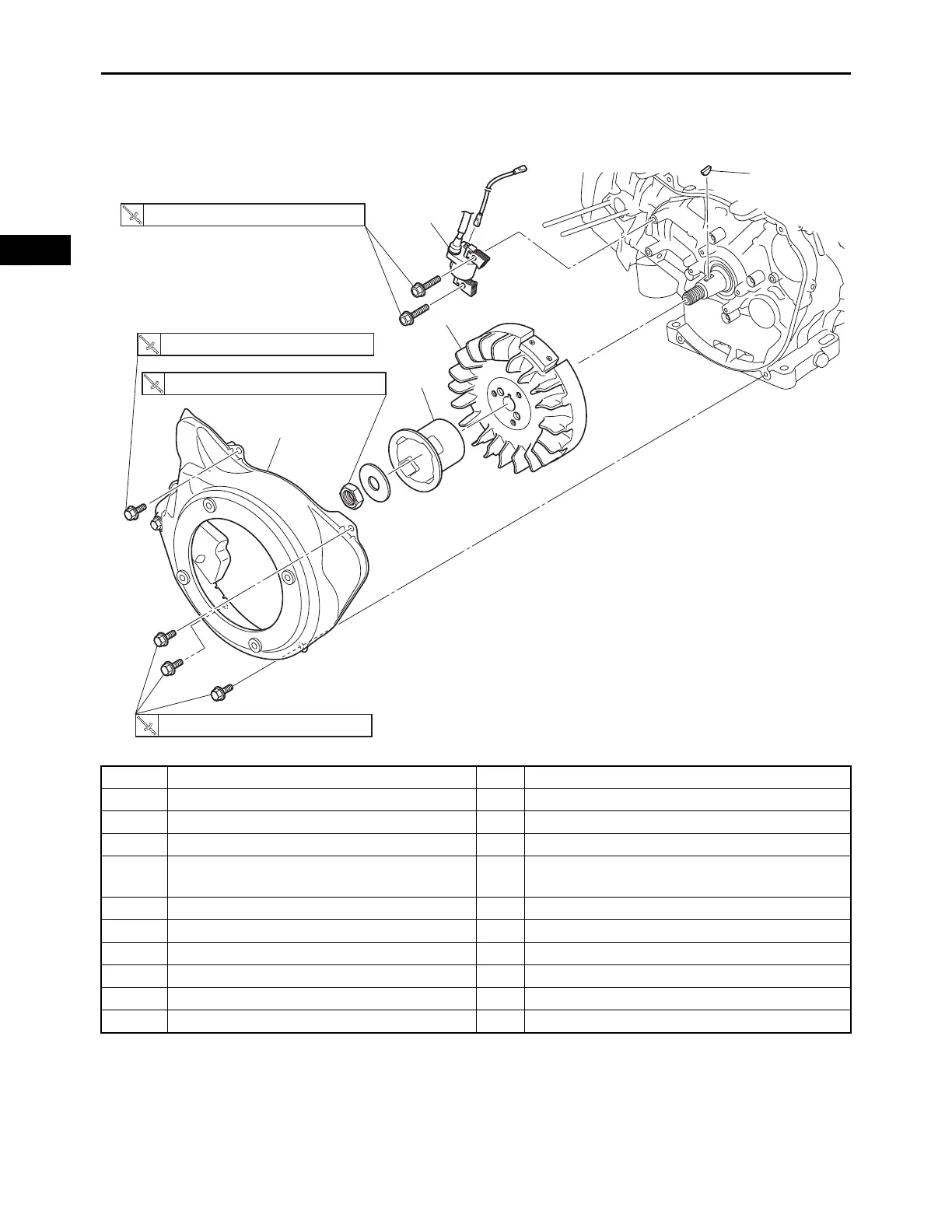

FLYWHEEL
FLYWHEEL
Order Job/Parts to remove Q’ty Remarks
Removing the flywheel Remove the parts in the order listed.
Air filter Refer to “AIR FILTER” on page 3-3.
Fuel tank Refer to “FUEL TANK” on page 3-4.
Carburetor
Refer to “REMOVING THE CARBURETOR”
on page 4-1.
Recoil starter Refer to “RECOIL STARTER” on page 3-8.
1 Flywheel cover 1
2TCI unit 1
3 Starter pulley 1
4 Flywheel 1
5 Woodruff key 1
1
2
3
4
5
10 N · m (1.0 kgf · m, 7.4 lb · ft)
7 N · m (0.7 kgf · m, 5.2 lb · ft)
7 N · m (0.7 kgf · m, 5.2 lb · ft)
100 N · m (10 kgf · m, 74 lb · ft)
