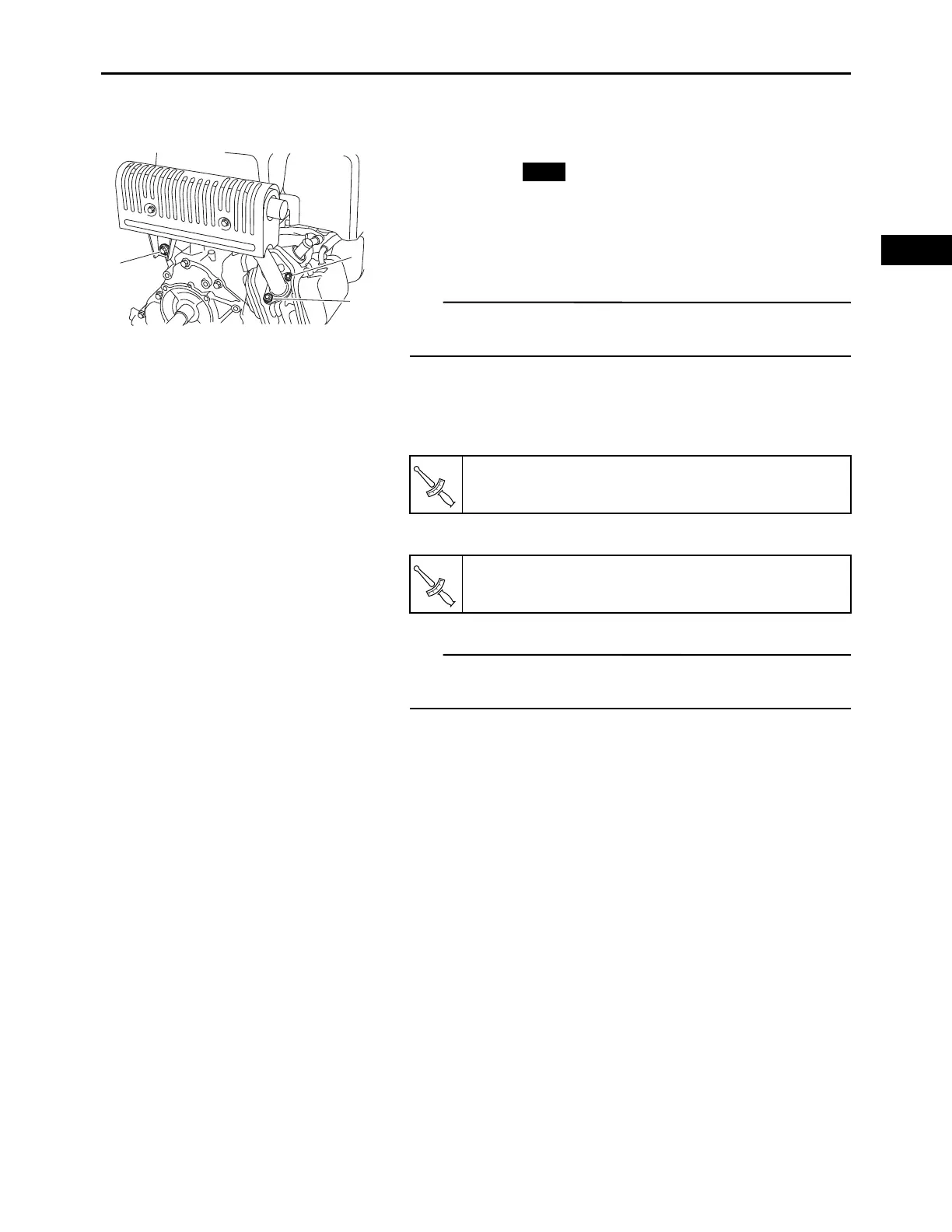

ENGINE
MUFFLER
INSTALLING THE MUFFLER
1.
Install:
•Gasket
Muffler assembly
Muffler nut “1”
Muffler nut “2”
Muffler bolt “3”
TIP
Temporarily tighten the nut “1”, nut “2”, and bolt “3” until
just comes in contact with the surface.
2.
Tighten:
Muffler nut “1”
Muffler nut “2”
Muffler bolt “3”
TIP
Tighten the nuts and bolt to the specified torque in order of
muffler nut “1”, muffler nut “2”, and muffler bolt “3”.
2
1
3
New
Muffler nut:
20 N·m (2.0 kgf·m, 15 lb·ft)
Muffler bolt:
20 N·m (2.0 kgf·m, 15 lb·ft)
T
R
.
.
T
R
.
.
