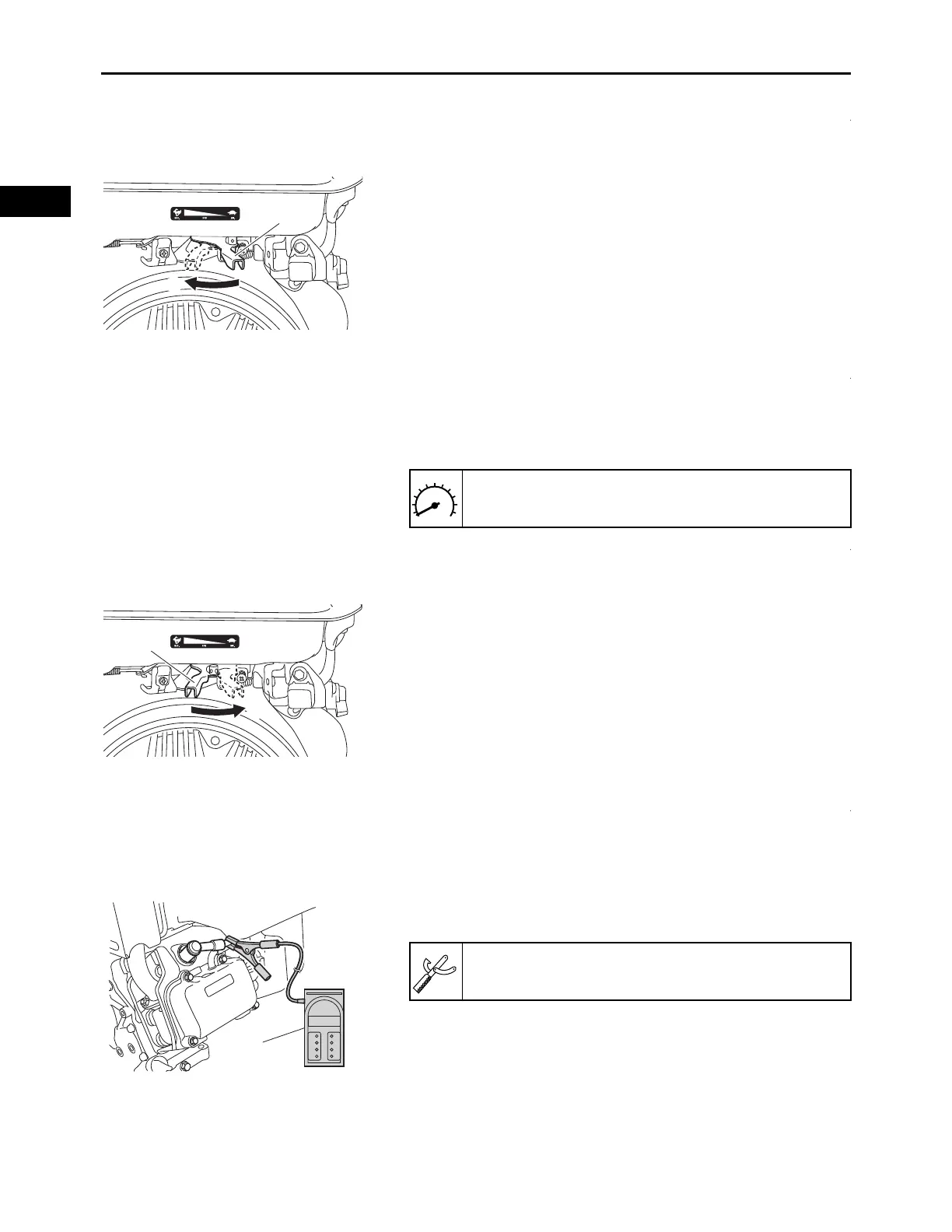

PERIODIC CHECKS AND ADJUSTMENTS
PERIODIC MAINTENANCE
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
Measurement steps:
a. Move the throttle lever “1” to the high engine speed
position “a”.
b. Check the high engine speed.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
4.
Measure:
• Low engine speed (with no load)
Out of specification  Adjust.
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
Measurement steps:
a. Move the throttle lever “1” to the low engine speed
position “a”.
b. Check the low engine speed.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
ADJUSTING THE ENGINE SPEED
1.
Warm up the engine for several minutes.
2. Attach:
• Digital tachometer “1”
1
a
Low engine speed:
1900–2100 r/min
1
a
1
Digital tachometer:
YU-39951-B, 90890-06760
