Yamaha MX250 - Engine Switch and Oil Warning Unit

3-21
1
2
3
4
5
6
7
8
9
10
ENGINE

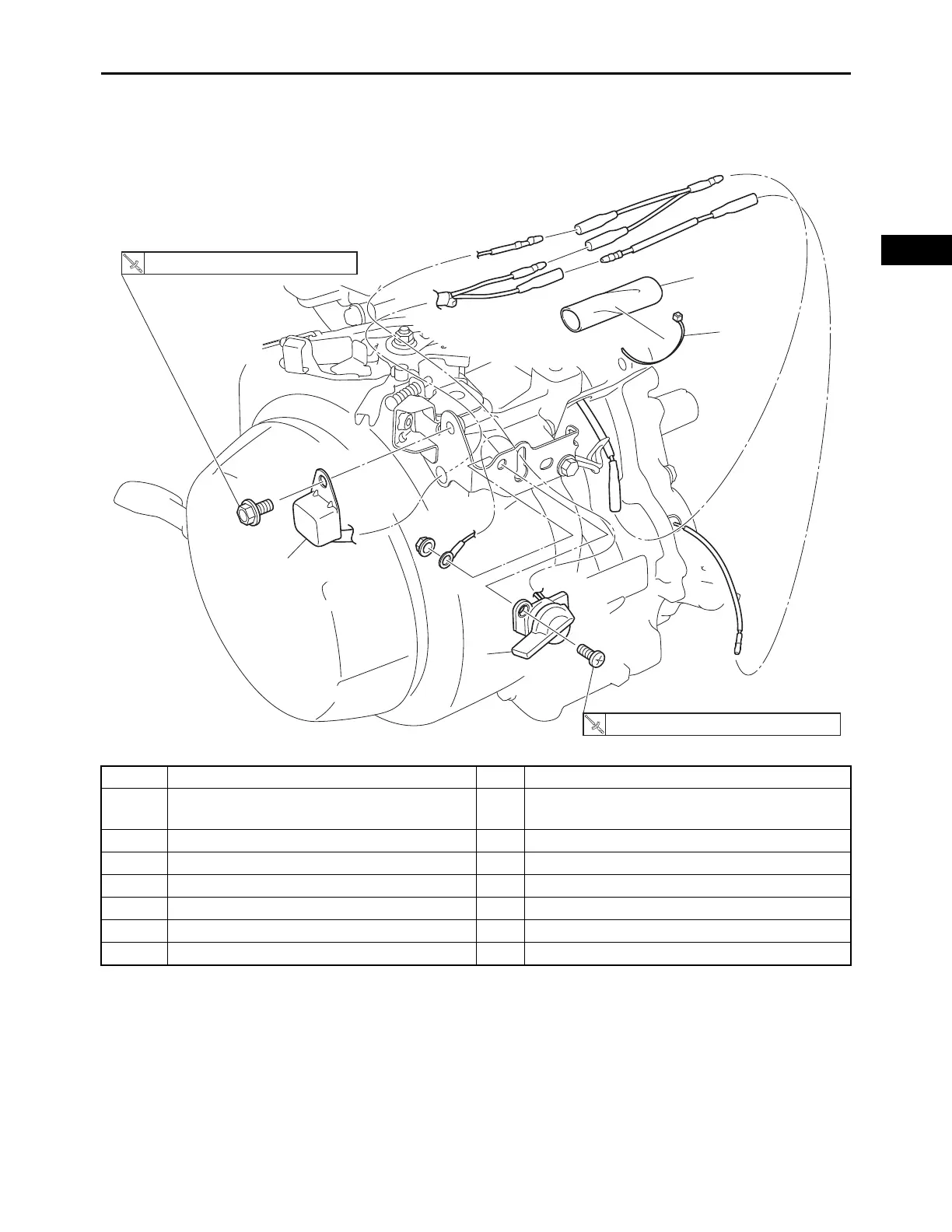

ENGINE SWITCH AND OIL WARNING UNIT
ENGINE SWITCH AND OIL WARNING UNIT
Order Job/Parts to remove Q’ty Remarks
Removing the engine switch and oil
warning unit
Remove the parts in the order listed.
Fuel tank Refer to “FUEL TANK” on page 3-4.
Fuel tank stay Refer to “FUEL TANK” on page 3-4.
1 Plastic locking tie 1 With oil warning model
2 Oil warning unit 1 With oil warning model
3 Engine switch 1
4 Wire harness protector 1 With oil warning model
1
2
3
4
7 N · m (0.7 kgf · m, 5.2 lb · ft)
4.5 N · m (0.45 kgf · m, 3.3 lb · ft)
