Yamaha MX250 - Checking the Ignition Coil (Tci Unit, Secondary) Resistance

5-7
1
2
3
4
5
6
7
8
9
10
ELECTRICAL
ELECTRICAL COMPONENTS
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Remove the ignition coil (TCI unit).
b. Connect the digital circuit tester () to the primary
terminal.
c. Measure the primary coil resistance.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲

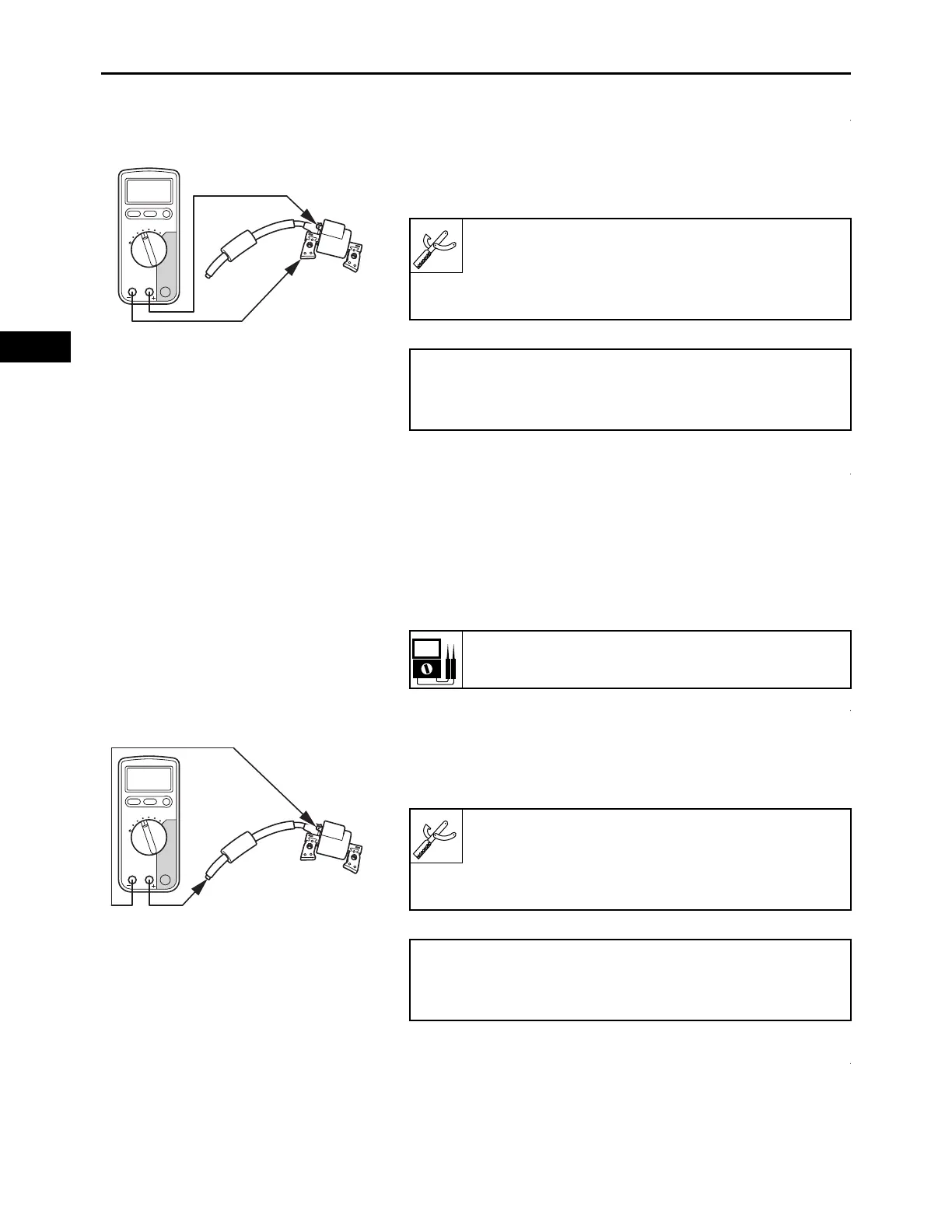

CHECKING THE IGNITION COIL (TCI UNIT,
SECONDARY) RESISTANCE
1.
Check:
• Secondary coil resistance
Out of specification  Replace.
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Remove the ignition coil (TCI unit).
b. Connect the digital circuit tester () to the second-
ary terminal.
c. Measure the secondary coil resistance.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
1
2
Model 88 Multimeter with tachometer:
YU-A1927
Digital circuit tester (CD732):
90890-03243
• Positive tester probe 
Black/White “1”
• Negative tester probe 
Body ground “2”
Secondary coil resistance:
11.7 k
1
2
Model 88 Multimeter with tachometer:
YU-A1927
Digital circuit tester (CD732):
90890-03243
• Positive tester probe 
High tension cord “1”
• Negative tester probe 
Black/White “2”
