Yamaha MX250 - Muffler

3-6
1
2
3
4
5
6
7
8
9
10
ENGINE
MUFFLER
MUFFLER

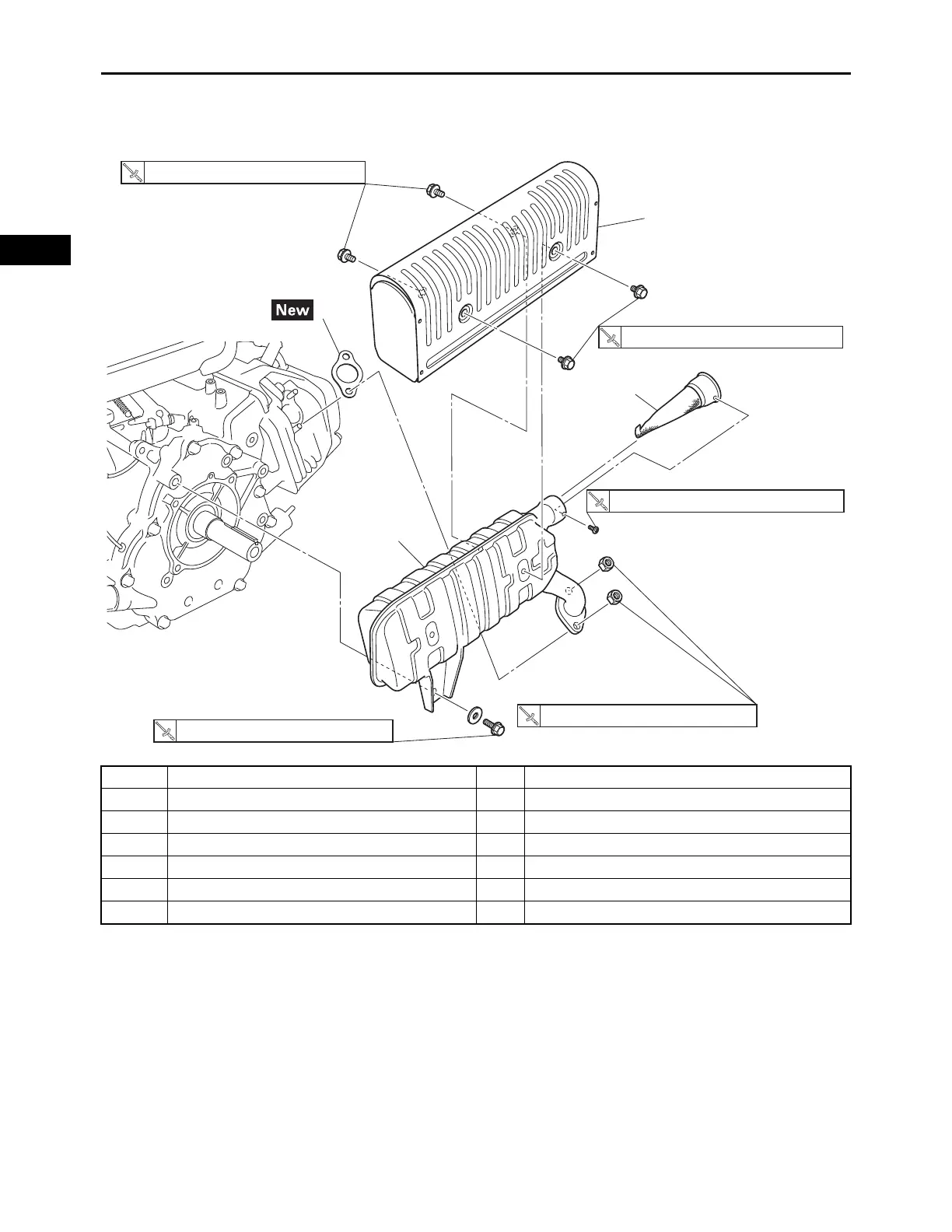

Order Job/Parts to remove Q’ty Remarks
Removing the muffler Remove the parts in the order listed.
Fuel tank Refer to “FUEL TANK” on page 3-4.
1 Muffler 1
2Gasket 1
3 Muffler cover 1
4 Spark arrester 1
3
1
2
4
10 N · m (1.0 kgf · m, 7.4 lb · ft)
10 N · m (1.0 kgf · m, 7.4 lb · ft)
1.8 N · m (0.18 kgf · m, 1.3 lb · ft)
20 N · m (2.0 kgf · m, 15 lb · ft)
20 N · m (2.0 kgf · m, 15 lb · ft)
