Yamaha MX250 - Valve

3-26
1
2
3
4
5
6
7
8
9
10
ENGINE
VALVE
VALVE

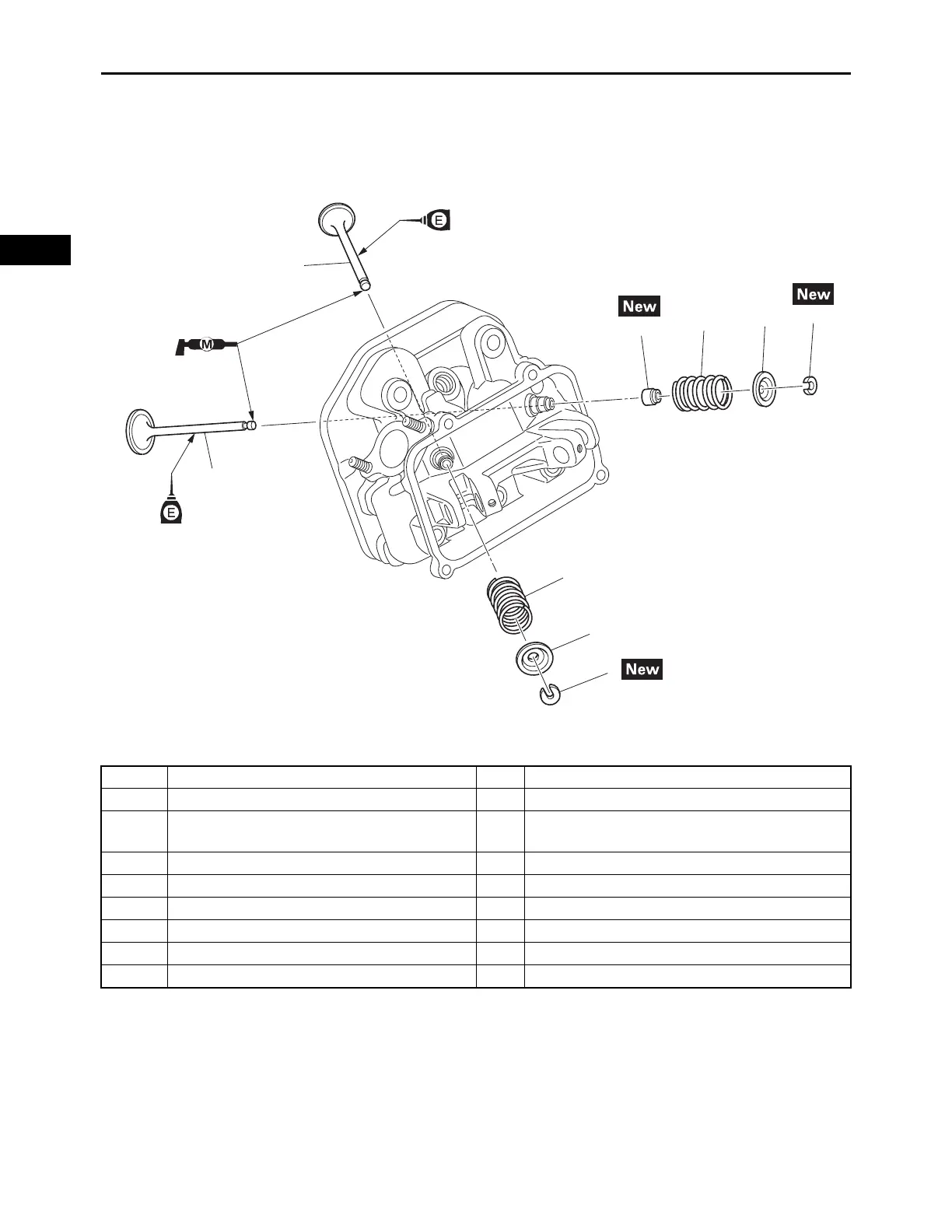

Order Job/Parts to remove Q’ty Remarks
Removing the valve Remove the parts in the order listed.
Cylinder head assembly
Refer to “CYLINDER HEAD COVER, CYLIN-
DER HEAD” on page 3-22.
1 Valve cotter 2
2 Valve spring retainer 2
3 Valve spring 2
4 Exhaust valve 1
5 Intake valve 1
6 Valve stem seal 1 Intake side only.
