Yamaha MX250 - Installing the Flywheel; Installing the Tci Unit

3-14
1
2
3
4
5
6
7
8
9
10
ENGINE
FLYWHEEL
INSTALLING THE FLYWHEEL
1.
Install:
• Woodruff key
• Flywheel
2.
Install:
• Starter pulley
• Washer
• Flywheel nut “1”
TIP

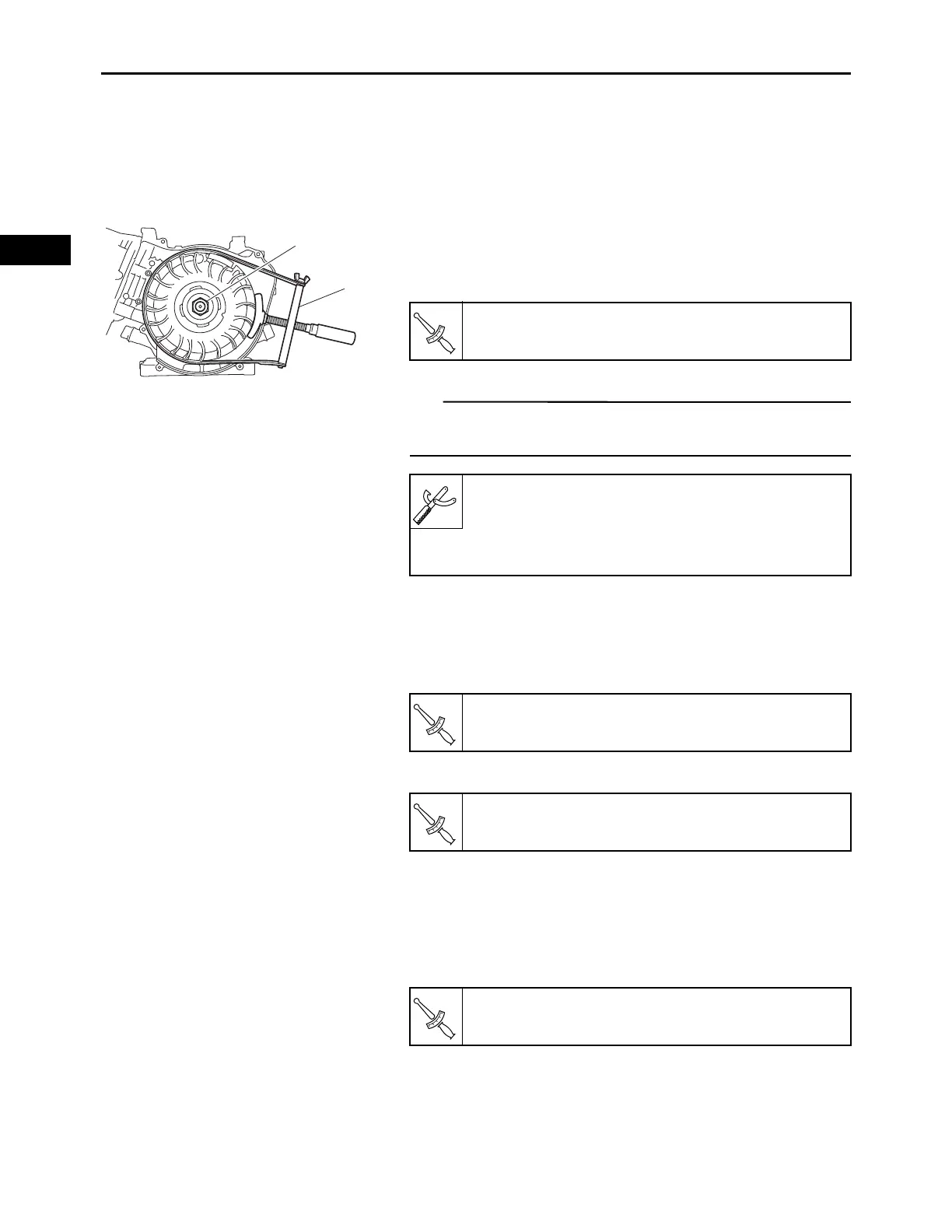

Tighten the flywheel nut “1” using the sheave holder “2” to
hold the flywheel.
3.
Install:
• TCI unit
(Refer to “INSTALLING THE TCI UNIT” on page
3-14)
• Flywheel cover
INSTALLING THE TCI UNIT
1.
Install:
• TCI unit
• TCI unit bolts
1
2
Flywheel nut:
100 N·m (10 kgf·m, 74 lb·ft)
Primary clutch holder:
YS-01880-A
Sheave holder:
90890-01701
T
R
.
.
TCI unit bolt:
10 N·m (1.0 kgf·m, 7.4 lb·ft)
Flywheel cover bolt:
7 N·m (0.7 kgf·m, 5.2 lb·ft)
T
R
.
.
T
R
.
.
TCI unit bolt:
10 N·m (1.0 kgf·m, 7.4 lb·ft)
T
R
.
.
